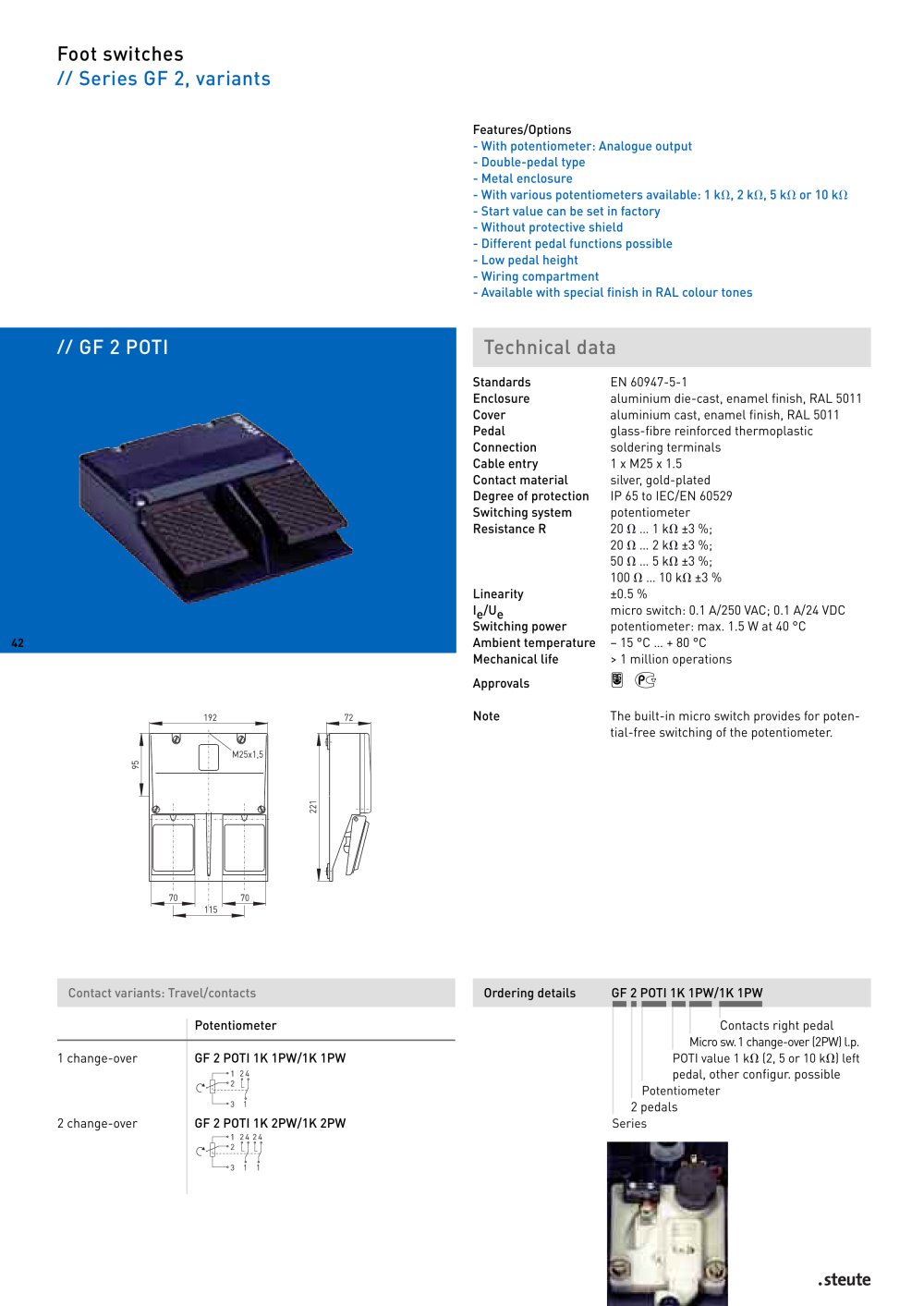

Foot switches

//

Series GF 2, variants

Features/Options - With Hall sensor: Analogue output - Double-pedal type - Metal enclosure - Various output values available: 0 … 10 VDC, 0 … 20 mA or 4 … 20 mA - Analogue output signal proportional to pedal travel - Without protective shield - Available with additional micro switch - Different pedal functions possible - Wiring compartment - Available with special finish in RAL colour tonesStandards IEC/EN 60947-5-1 Enclosure aluminium die-cast, enamel finish, RAL 5011 Cover aluminium cast, enamel finish, RAL 5011 Pedal glass-fibre reinforced thermoplastic Protective shield – Termination screw terminals Cable entry M25 x 1.5 Protection class IP 65 to EN 60529

//

GF 2 HS

Switching system

Technical data

Hall sensor 0...10 VDC ±1 % Output values Output voltage Ua Output current Ia 0...20 mA ±1 % or 4...20 mA ±1 % Utilisation category – Ie/Ue with Ua: 25 mA/15 … 30 VDCwith Ia: 45 mA/15 … 30 VDC Max. industrial fuse rating – Ambient temperature – 10 °C … + 70 ºC Mechanical life > 1 million operations
42 Contact variants: Travel/contacts Ordering detailsGF 2 HS 0…20 mA/0…20 mA Hall sensor Output value Ia0…20 mA left/rightpedal (Ia4…20 mA, Ua0…10 VDC), other configurations possibleHall sensor 2 pedals Series Ua GF 2 HS 0…10 VDC/0…10 VDC Ia GF 2 HS 0…20 mA/0…20 mAGF 2 HS 4…20 mA/4…20 mA
