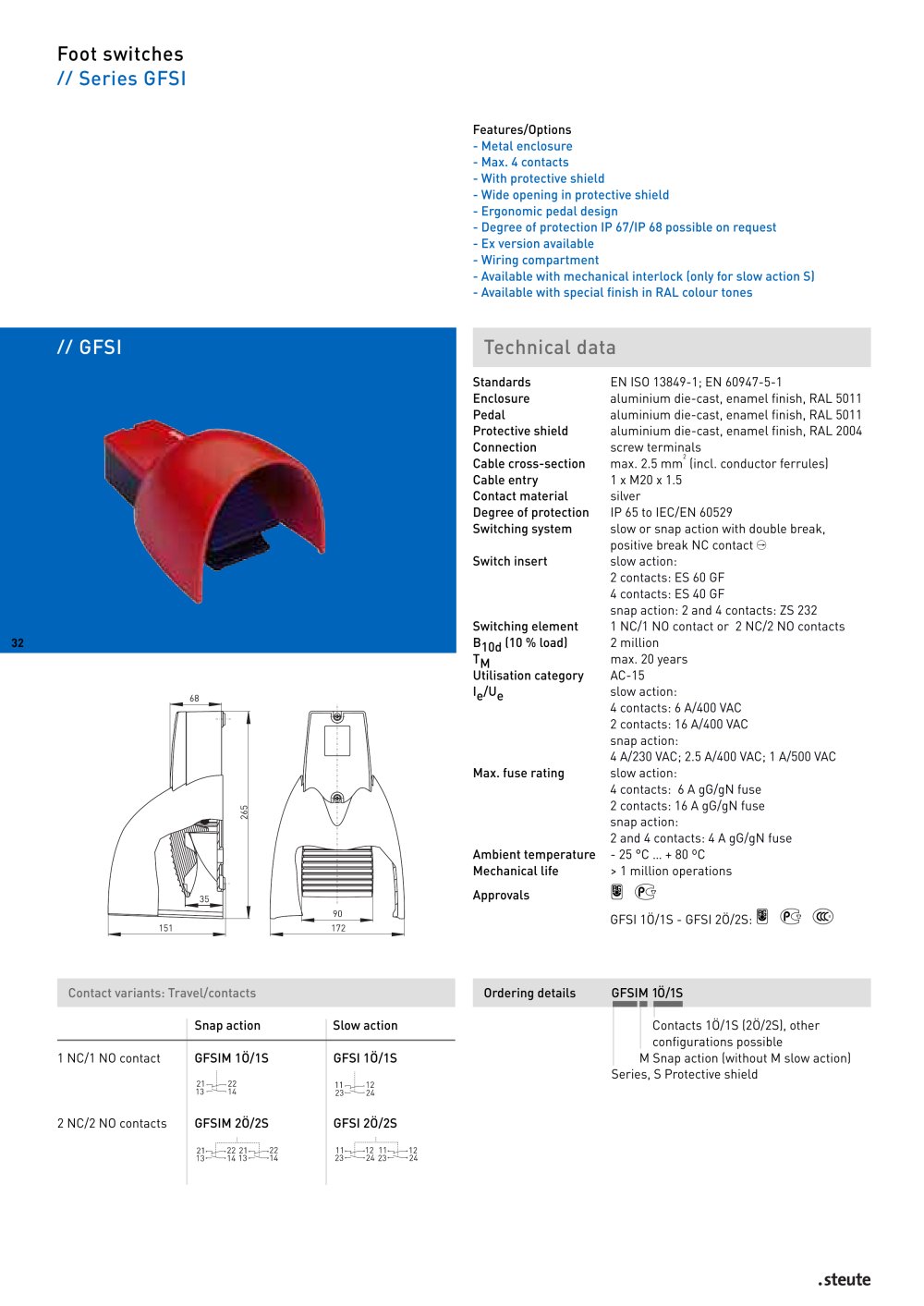

Foot switches

//

Series GFSI

Features/Options IEC/EN 60947-5-1 - Metal enclosure- Max. 4 contacts - With protective shield - Wide opening in protective shield - Ergonomic pedal design - Protection class IP 67/IP 68 possible on request - Ex version available - Wiring compartment - Available with mechanical interlock (only for slow action S) - Available with special finish in RAL colour tonesStandards Enclosure aluminium die-cast, enamel finish, RAL 5011 Cover – Pedal aluminium die-cast, enamel finish, RAL 5011 Protective shield aluminium die-cast, enamel finish, RAL 2004 Termination screw terminals Wire cross-section max. 2.5 mm

//

GFSI Technical data

2 (incl. conductor ferrules) Cable entry M20 x 1.5 Contact material silver Protection class IP 65 to EN 60529 Switching system Ambient temperature slow or snap action with double break, positi-ve break NC contact - 25 °C … + 80 ºC Max. industrial fuse rating Mechanical life slow action: 4 contacts: 6 A gL/gG D-fuse 2 contacts: 16 A gL/gG D-fuse snap action: 2 and 4 contacts: 4 A gL/gG D-fuse > 1 million operations A Switch insert Switching element slow action: 2 contacts: ES 60 GF 4 contacts: ES 40 GF snap action: 2 and 4 contacts:ZS 232 1 NC/1 NO contact; 2 NC/2 NO contacts Utilisation category AC-15 Ie/Ue slow action: 4 contacts: 6 A/400 VAC 2 contacts: 16 A/400 VAC snap action: 4 A/230 VAC 2.5 A/400 VAC 1 A/500 VAC
32 Contact variants: Travel/contacts Ordering detailsGFSIM 1Ö/1S Snap actionSlow action Contacts 1Ö/1S (2Ö/2S), other configurations possibleM Snap action (without M slow action)Series, S Protective shield 1 NC/1 NO contact GFSIM 1Ö/1S GFSI 1Ö/1S 2 NC/2 NO contacts GFSIM 2Ö/2S GFSI 2Ö/2S
