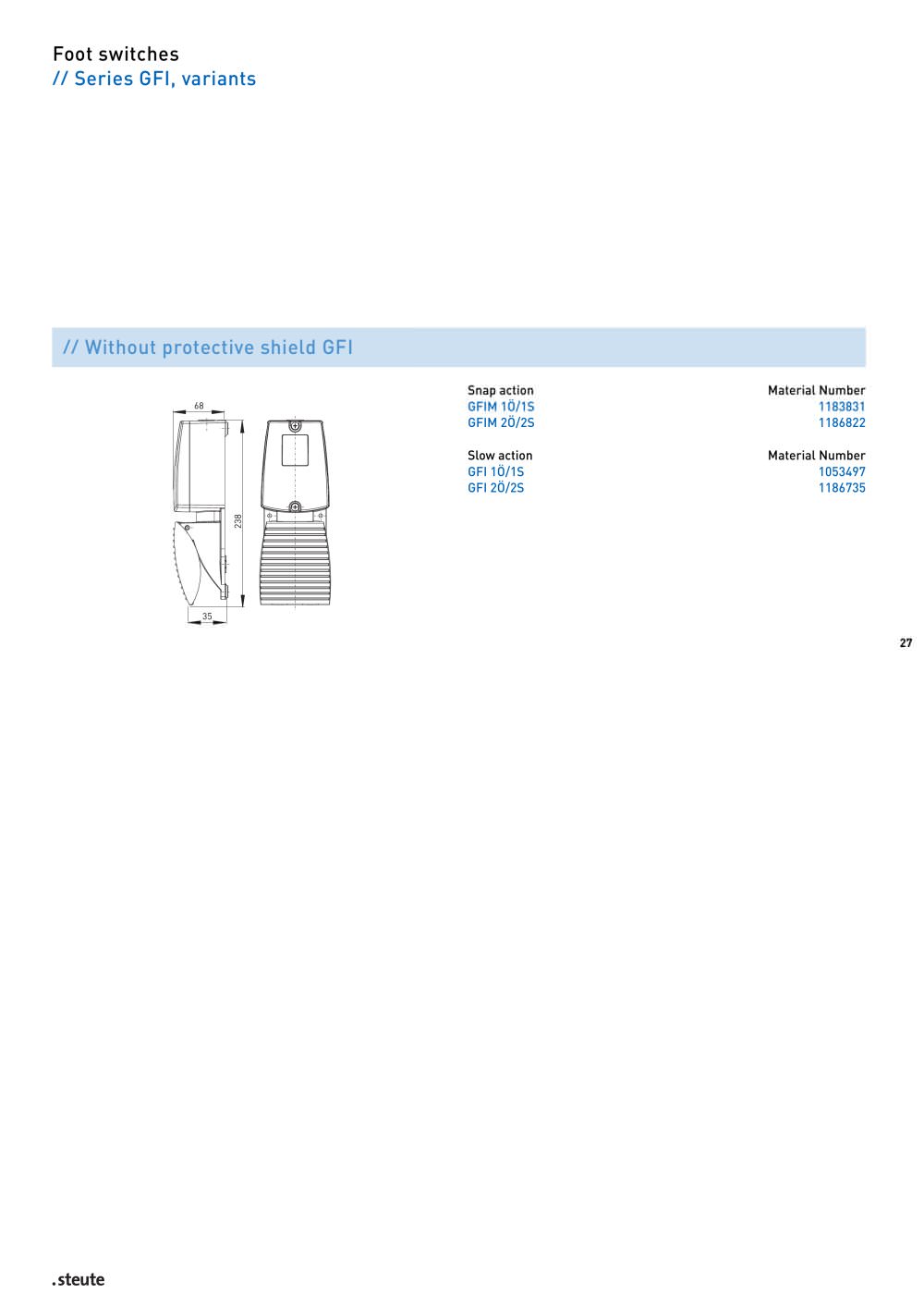

Foot switches

//

Series GFI, variants

Features/Options - With pressure point: 2-step switching - 4 contacts - Without protective shield - High level of stability - Ergonomic pedal design - Low pedal height - Wiring compartment - Protection class IP 67/IP 68 possible on request - Available with mechanical interlock - Available with special finish in RAL colour tonesStandards IEC/EN 60947-5-1 Enclosure aluminium die-cast, enamel finish, RAL 5011 Cover aluminium die-cast, enamel finish, RAL 2004 Pedal aluminium die-cast, enamel finish, RAL 5011 Protective shield – Termination screw terminals Wire cross-section max. 2.5 mm

//

GFI D Technical data

2 (incl. conductor ferrules) Cable entry M20 x 1.5 Contact material silver Protection class IP 65 to EN 60529 Switching system slow action with double break, positive break NC contact A Switch insert ES 40 GF Switching element 2-step switching: 1 NC/1 NO contact pressure point: 1 NC/1 NO contact Actuating force aprox. 240 N Utilisation category AC-15
27 Ie/Ue 6 A/400 VAC Max. fuse rating 6 A gL/gG D-fuse Ambient temperature - 25 °C … + 80 ºC Mechanical life > 1 million operations Contact variants: Travel/contacts Ordering detailsGFI 1ÖS D 1ÖS Slow action 1NC/1NO contact, other configurations possiblePressure pointContacts 1NC/1NO contactSeries 1 NC/1 NO contact GFI 1ÖS D 1ÖS
