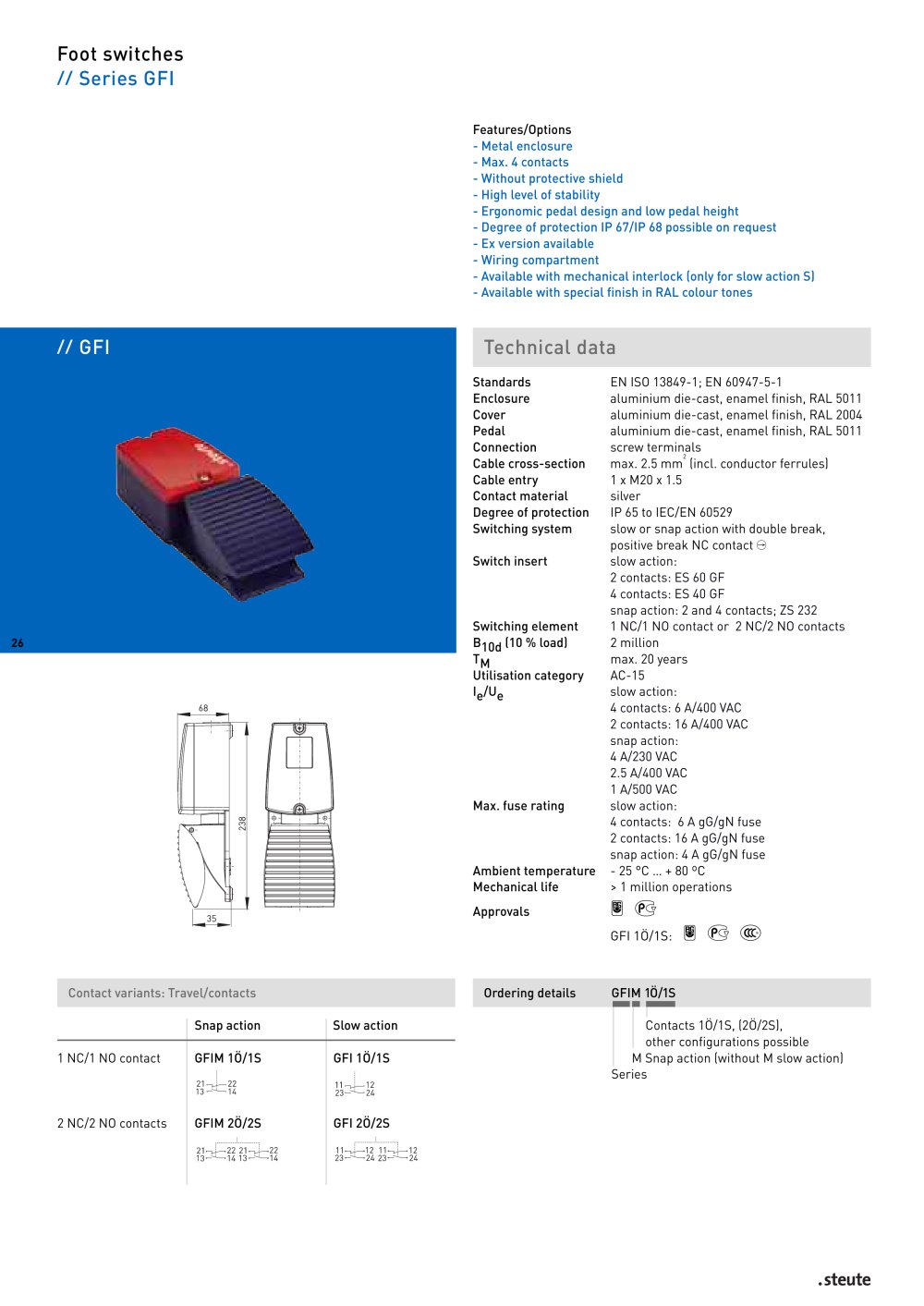

Foot switches

//

Series GFI

Features/Options IEC/EN 60947-5-1 - Metal enclosure- Max. 4 contacts - Without protective shield - High level of stability - Ergonomic pedal design and low pedal height - Protection class IP 67/IP 68 possible on request - Ex version available - Wiring compartment - Available with mechanical interlock (only for slow action S) - Available with special finish in RAL colour tonesStandards Enclosure aluminium die-cast, enamel finish, RAL 5011 Cover aluminium die-cast, enamel finish, RAL 2004 Pedal aluminium die-cast, enamel finish, RAL 5011 Protective shield – Termination screw terminals Wire cross-section max. 2.5 mm

//

GFI Technical data

2 (incl. conductor ferrules) Cable entry M20 x 1.5 Contact material silver Protection class IP 65 to EN 60529 Switching system slow or snap action with double break, positi-ve break NC contact Max. industrial fuse rating Ambient temperature slow action: 4 contacts: 6 A gL/gG D-fuse 2 contacts: 16 A gL/gG D-fuse snap action: 4 A gL/gG D-fuse - 25 °C … + 80 ºC A Switch insert Switching element Mechanical life slow action: 2 contacts: ES 60 GF 4 contacts: ES 40 GF snap action: 2 and 4 contacts;ZS 232 1 NC/1 NO contact: 2 NC/2 NO contacts > 1 million operations Utilisation category AC-15 Ie/Ue slow action: 4 contacts: 6 A/400 VAC 2 contacts: 16 A/400 VAC snap action: 4 A/230 VAC 2.5 A/400 VAC 1 A/500 VAC
26 Contact variants: Travel/contacts Ordering detailsGFIM 1Ö/1S Snap actionSlow action Contacts 1Ö/1S, (2Ö/2S),other configurations possibleM Snap action (without M slow action)Series 1 NC/1 NO contact GFIM 1Ö/1S GFI 1Ö/1S 2 NC/2 NO contacts GFIM 2Ö/2S GFI 2Ö/2S
