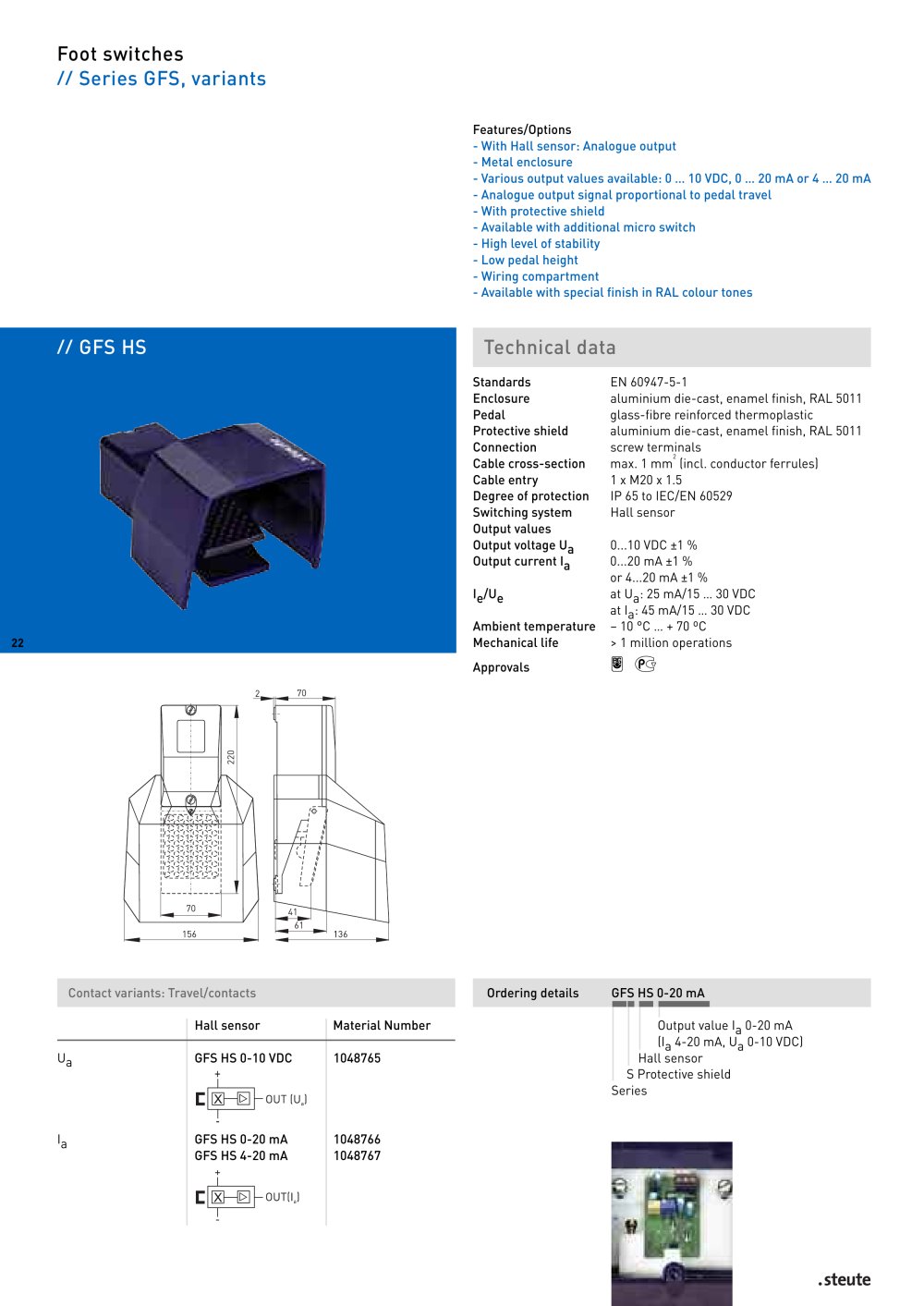

Foot switches

//

Series GFS, variants

Features/Options - With Hall sensor: Analogue output - Metal enclosure - Various output values available: 0 … 10 VDC, 0 … 20 mA or 4 … 20 mA - Analogue output signal proportional to pedal travel - With protective shield - Available with additional micro switch - High level of stability - Low pedal height - Wiring compartment - Available with special finish in RAL colour tonesStandards IEC/EN 60947-5-1 Enclosure aluminium die-cast, enamel finish, RAL 5011 Cover – Pedal glass-fibre reinforced thermoplastic Protective shield aluminium die-cast, enamel finish, RAL 5011 Termination screw terminals Cable entry M20 x 1.5 Protection class IP 65 to EN 60529

//

GFS HS

Switching system

Technical data

Hall sensor 0...10 VDC ±1 % Output values Output voltage Ua Output current Ia 0...20 mA ±1 % or 4...20 mA ±1 % Utilisation category – Ie/Ue with Ua: 25 mA/15 … 30 VDCwith Ia: 45 mA/15 … 30 VDC Max. industrial fuse rating – Ambient temperature – 10 °C … + 70 ºC Mechanical life > 1 million operations
22 Contact variants: Travel/contacts Ordering detailsGFS HS 0…20 mA Hall sensor Output value Ia0…20 mA (Ia4…20 mA, Ua0…10 VDC)Hall sensor S Protective shieldSeries Ua GFS HS 0…10 VDC Ia GFS HS 0…20 mAGFS HS 4…20 mA
