Foot switches

//

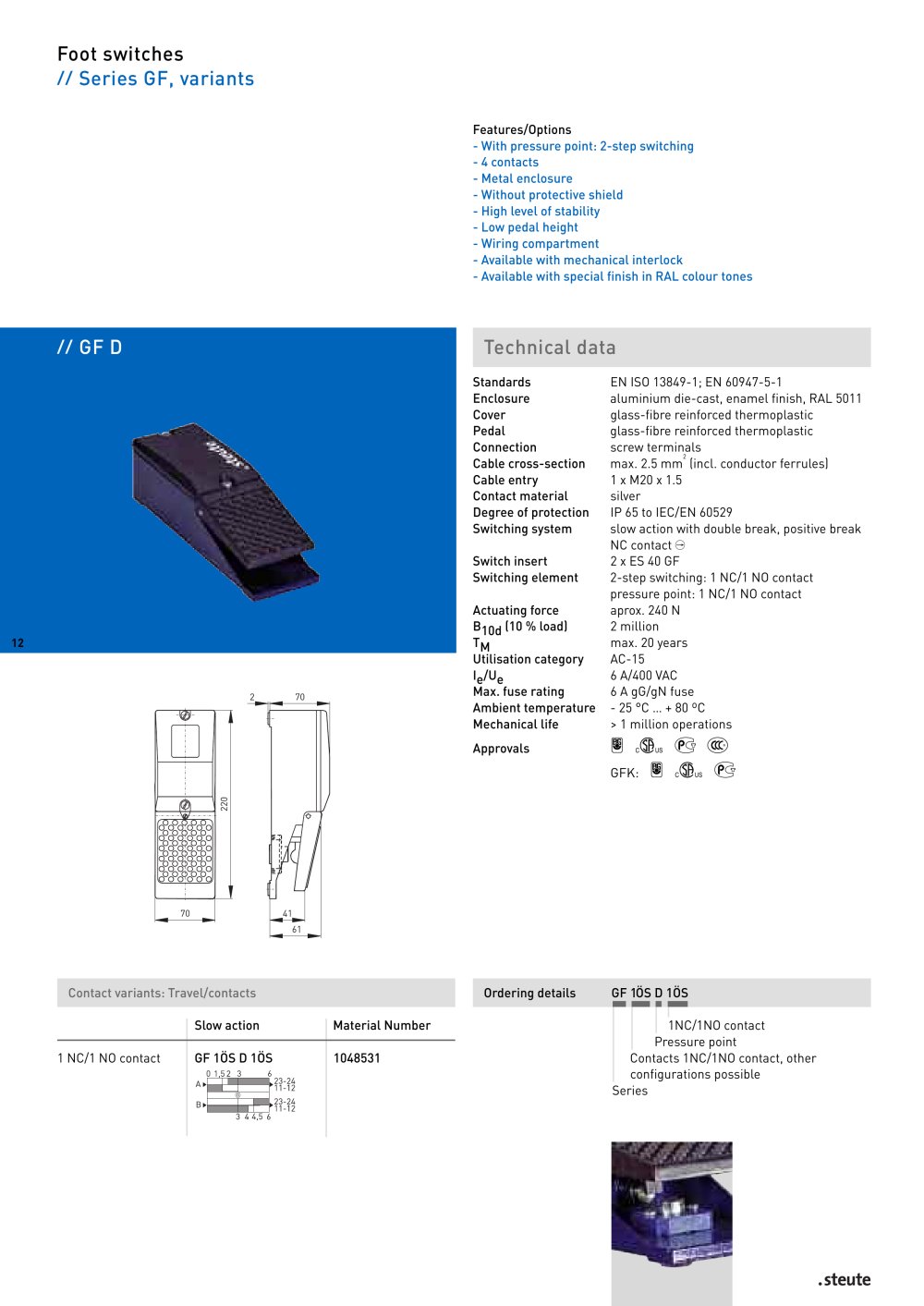

Series GF

Features/Options -Without protective shield - Max. 4 contacts - Metal enclosure - High level of stability - Low pedal height - Wiring compartment - Ex version available - Available with mechanical interlock (only for slow action S) - Available with special finish in RAL colour tonesStandards IEC/EN 60947-5-1 Enclosure aluminium die-cast, enamel finish, RAL 5011 Cover glass-fibre reinforced thermoplastic Pedal glass-fibre reinforced thermoplastic Protective shield – Termination screw terminals

//

GF

Wire cross-section

Technical data

max. 2.5 mm
2 (incl. conductor ferrules) Cable entry M20 x 1.5 Contact material silver Protection class IP 65 to EN 60529 Switching system slow or snap action with double break, positive break NC contact A Switch insert slow action: 2 contacts: ES 60 GF 4 contacts: ES 40 GF snap action: 2 and 4 contacts: ZS 232 Utilisation category AC-15 Ie/Ue Max. industrial fuse rating slow action: 4 contacts:6 A/400 VAC 2 contacts: 16 A/400 VAC snap action: 2 contacts: 4 A/230 VAC; 2.5 A/400 VAC; 1 A/500 VAC slow action: 4 contacts: 6 A gL/gG D-fuse2 contacts: 16 A gL/gG D-fuse snap action: 4 A gL/gG D-fuse Ambient temperature – 25 °C … + 80 ºC
12 Mechanical life > 1 million operations Approvals

H

Contact variants: Travel/contacts Ordering detailsGFM K 1Ö/1S Snap actionSlow action 1NC/1NO contact, (2Ö/2S, 1Ö/3S),other configurations possiblePedal CoverM Snap action (without M slow action)Series 1 NC/1 NO contact GFM 1Ö/1S GF 1Ö/1S 2 NC/2 NO contacts GFM 2Ö/2SGF 2Ö/2S
