Orderingdetails Ex interlock, spring-to-lock principle, two NO and two NCcontacts:EEx AZM 415 2Ö/2S-RActuators and accessories must be ordered separately,
e.g. straight actuator: AZ/AZM 415-B1 Info
2 NO2 NC
Contacts Further variants not shown here are available on request.The applicable ordering suffix is added at the end of the part number of the safety switch.• Available with gold-plated contacts Spring-to-lock
principleEEx AZM 415 2Ö/2S-R 2 NO
2 NC Power-to-lockprincipleEEx AZM 415 2Ö/2S-A Note Circuit diagrams show condition without
power supply manufacturer, with actuator inserted (0 in switch travel diagram).

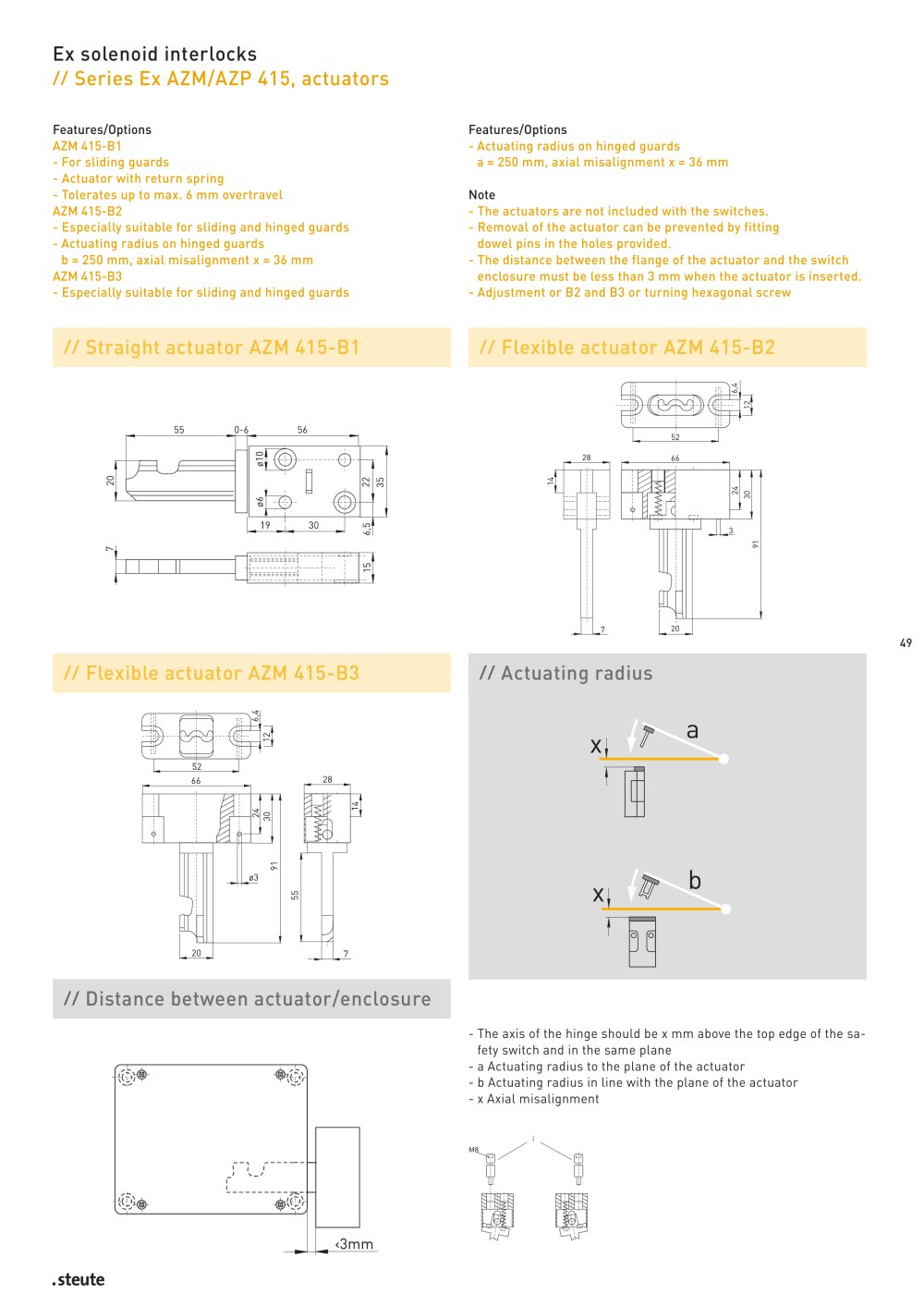

Suppliers of actuators must be ordered separately. A selection of suitable actuators and accessories can be found on the followingpages.
39
