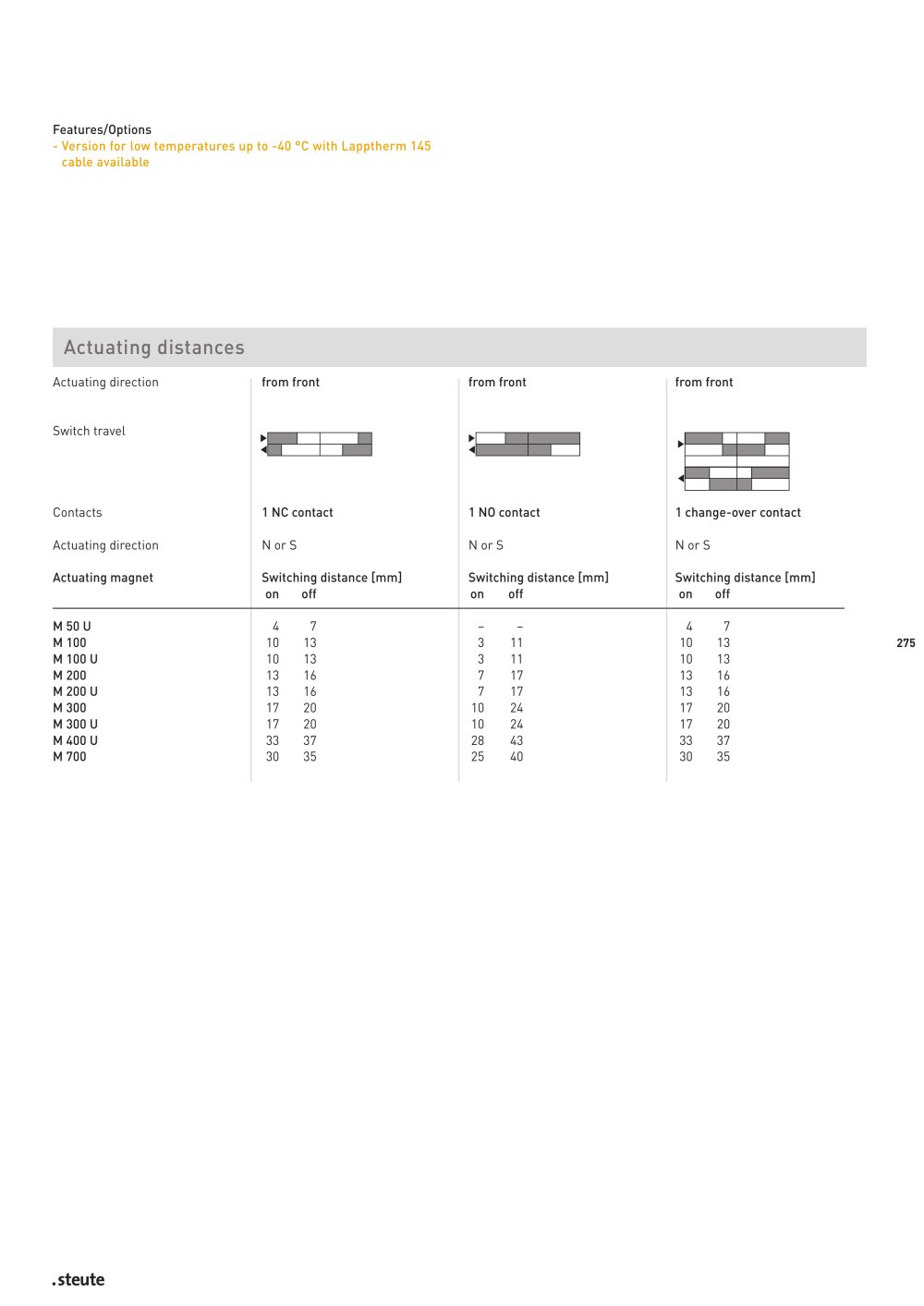

| | | EEx 14 EExM 14 | EExM 14 1Ö/1S | |
| | Standards: | IEC 60947-5-1; EN 1088; BG-GS-ET 15 EN 50014; EN 50018; EN 50281-1-1 | | |
| | Ex marking: | L II 2G EEx d IIC T6 | | |
| | II 2D IP65 T80°C | |
| | Certification: | PTB 03 ATEX 1070 X PTB 03 ATEX 1069 X | PTB 00 ATEX 1006 X | |
| | | - - | - | |
| | Design: | - | | |
| | Enclosure: | Thermoplastic, self-extinguishing UL 94-VO | | |
| | | |
| | Cover: | Same as enclosure | | |
| | Protection class: | IP 65 to IEC/EN 60529/DIN VDE 0470-1 | | |
| | Contact material: | Silver | | |
| | Switching system: | Slow action Snap action | | |
| | NC contacts with positive break 6 | |
| | Contact type: | Change-over contact, Change-over contact, | Change-over contact, | |
| | | double break Zb, with galvanically single break C | double break Za | |
| | | |
| | Termination: | H05VV-F 4 x 0.75 mm2 H05VV-F 3 x 0.75 mm2 | H05VV-F 4 x 0.75 mm2 | |
| | | |
| | Rated impulse | |
| | withstand voltage Uimp: | 4 kV | | |
| | Rated insulation voltage U;:250 V | |
| | Thermal test current Ithe: | 6 A 5 A | | |
| | Utilisation category: | AC-15; DC-13 | | |
| | Rated operating | |
| | current/voltage Ie/Ue: | 6 A/250 VAC; 0.25 A/230 VDC 5 A/250 VAC; 0.16 A/230 VDC | 5 A/250 VAC; 0.2 A/230 VDC | |
| | | |
| | Max. fuse rating: | 6 A gL/gG D-fuse 5 A gL/gG D-fuse | 5 A gL/gG D-fuse | |
| | Ambient temperature: | -20 °C ... +65 °C -20 °C ... +60 °C | -20 °C ... +65 °C | |
| | Mechanical life: | >1 million operations | | |
| | Switching frequency:: | 1800/h | | |
| | Switching point accuracy: | ±0.1 mm | | |
| | Actuating speed:*** | - | | |
| | Contact break for | |
| | complete stroke:* | 2 x 4 m - | | |
| | Positive break force: | - | | |
| | Positive break stroke: | see switch description | | |
| | Shock resistance: | | | |
| | | | | |
