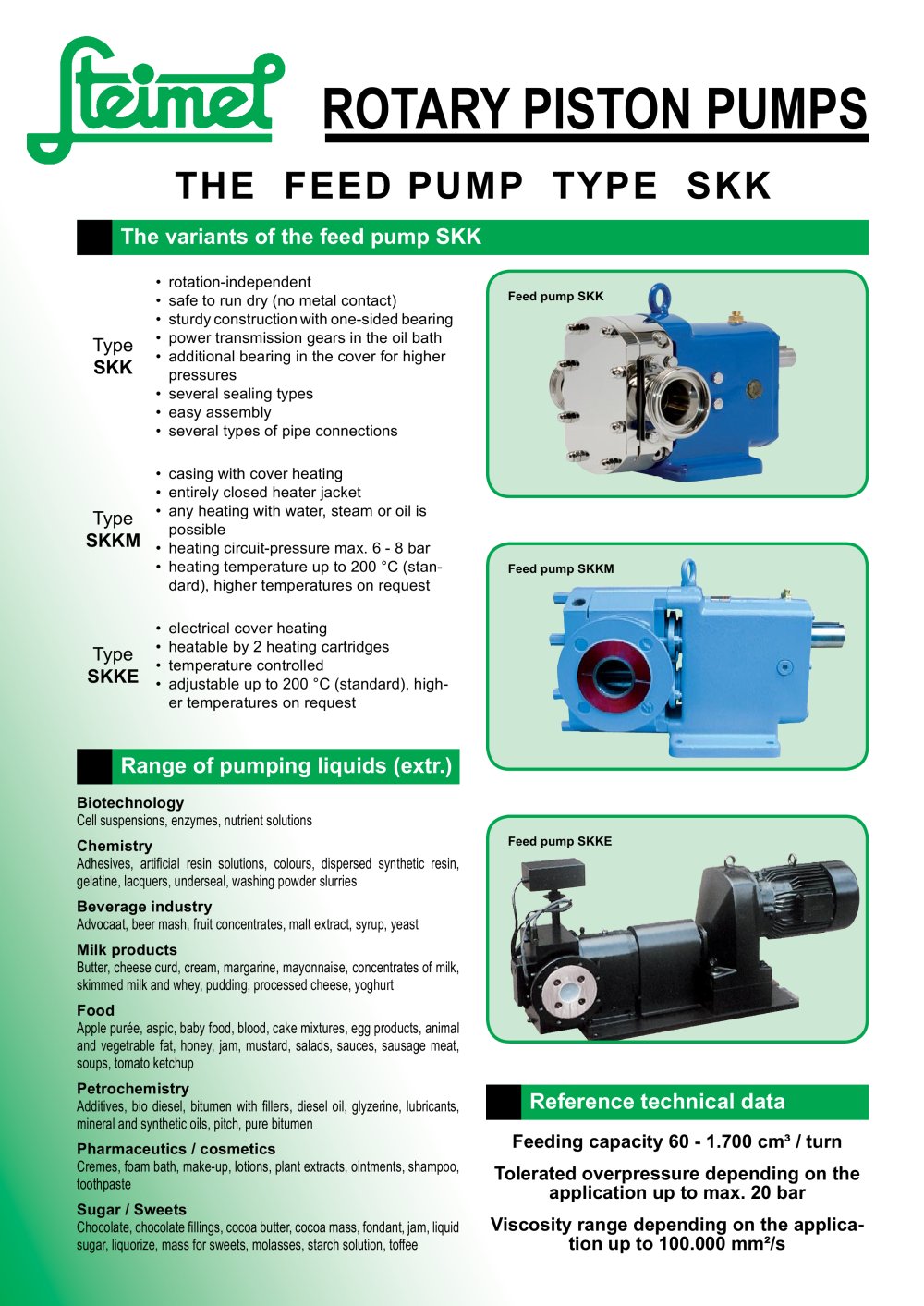

ROTARY PISTON PUMPS
THE FEED PUMP TYPE SKK
Type
SKK
• rotation-independent
• safe to run dry (no metal contact)
• sturdy construction with one-sided bearing
• power transmission gears in the oil bath
• additional bearing in the cover for higher
pressures
• several sealing types
• easy assembly
• several types of pipe connections
Type
SKKM
• casing with cover heating
• entirely closed heater jacket
• any heating with water, steam or oil is
possible
• heating circuit-pressure max. 6 - 8 bar
• heating temperature up to 200 °C (standard),
higher temperatures on request
Type
SKKE
• electrical cover heating
• heatable by 2 heating cartridges
• temperature controlled
• adjustable up to 200 °C (standard), higher
temperatures on request
The variants of the feed
pump SKK
Förderpumpe T
Feed
pump SKKE
Biotechnology
Cell suspensions, enzymes, nutrient solutions
Chemistry
Adhesives, artificial resin solutions, colours, dispersed synthetic resin,
gelatine, lacquers, underseal, washing powder slurries
Beverage industry
Advocaat, beer mash, fruit concentrates, malt extract, syrup, yeast
Milk products
Butter, cheese curd, cream, margarine, mayonnaise, concentrates of milk,
skimmed milk and whey, pudding, processed cheese, yoghurt
Food
Apple purée, aspic, baby food, blood, cake mixtures, egg products, animal
and vegetrable fat, honey, jam, mustard, salads, sauces, sausage meat,
soups, tomato ketchup
Petrochemistry
Additives, bio diesel, bitumen with fillers, diesel oil, glyzerine, lubricants,
mineral and synthetic oils, pitch, pure bitumen
Pharmaceutics / cosmetics
Cremes, foam bath, make-up, lotions, plant extracts, ointments, shampoo,
toothpaste
Sugar / Sweets
Chocolate, chocolate fillings, cocoa butter, cocoa mass, fondant, jam, liquid
sugar, liquorize, mass for sweets, molasses, starch solution, toffee
Range of pumping liquids (extr.)
Feeding capacity 60 - 1.700 cm³ / turn
Tolerated overpressure depending on the
application up to max. 20 bar
Viscosity range depending on the application
up to 100.000 mm²/s
Reference technical data
Feed
pump SKK
Feed
pump SKKM
