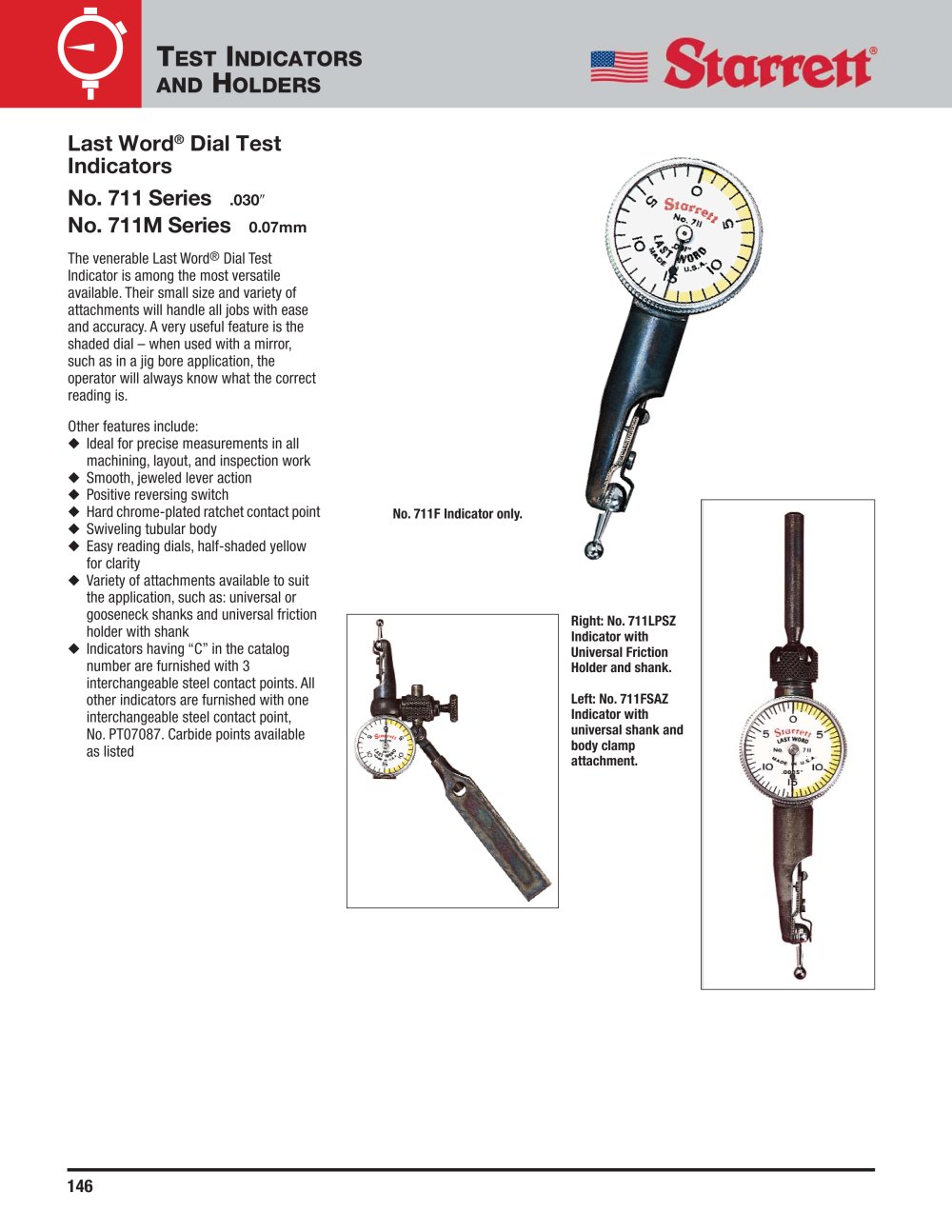

146
Last Word Dial Test
Indicators
No. 711 Series .030
No. 711M Series 0.07mm
The venerable Last Word Dial Test
Indicator is among the most versatile
available. Their small size and variety of
attachments will handle all jobs with ease
and accuracy. A very useful feature is the
shaded dial when used with a mirror,
such as in a jig bore application, the
operator will always know what the correct
reading is.
Other features include:
Ideal for precise measurements in all
machining, layout, and inspection work
Smooth, jeweled lever action
Positive reversing switch
Hard chrome-plated ratchet contact point
Swiveling tubular body
Easy reading dials, half-shaded yellow
for clarity
Variety of attachments available to suit
the application, such as: universal or
gooseneck shanks and universal friction
holder with shank
Indicators having C in the catalog
number are furnished with 3
interchangeable steel contact points. All
other indicators are furnished with one
interchangeable steel contact point,
No. PT07087. Carbide points available
as listed
No. 711F Indicator only.
Right: No. 711LPSZ
Indicator with
Universal Friction
Holder and shank.
Left: No. 711FSAZ
Indicator with
universal shank and
body clamp
attachment.
TEST INDICATORS
AND HOLDERS
