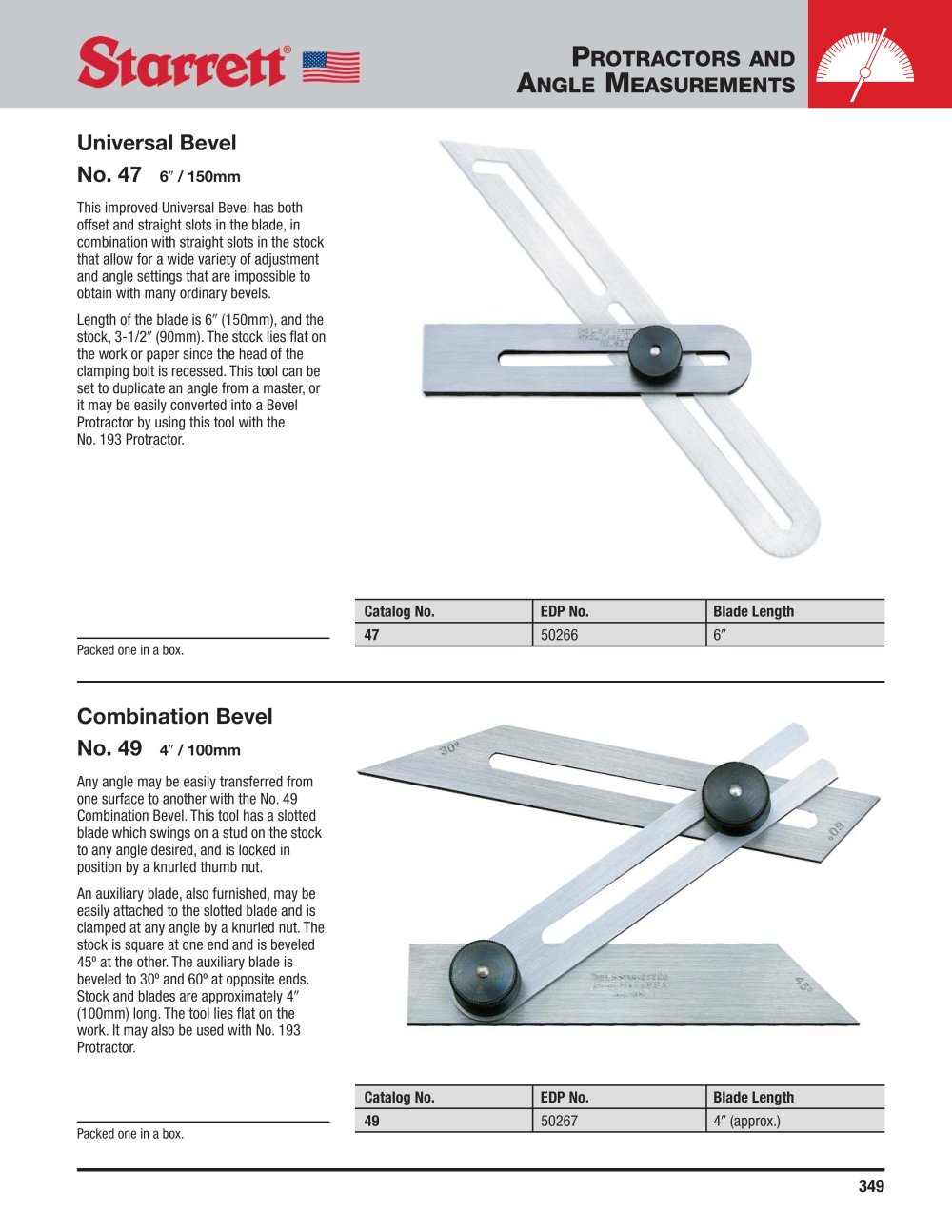

349 Universal Bevel No. 47 6 / 150mm This improved Universal Bevel has both offset and straight slots in the blade, in combination with straight slots in the stock that allow for a wide variety of adjustment and angle settings that are impossible to obtain with many ordinary bevels. Length of the blade is 6 (150mm), and the stock, 3-1/2 (90mm). The stock lies flat on the work or paper since the head of the clamping bolt is recessed. This tool can be set to duplicate an angle from a master, or it may be easily converted into a Bevel Protractor by using this tool with the No. 193 Protractor. Catalog No. EDP No. Blade Length 47 50266 6 Catalog No. EDP No. Blade Length 49 50267 4 (approx.) Packed one in a box. Packed one in a box. Combination Bevel No. 49 4 / 100mm Any angle may be easily transferred from one surface to another with the No. 49 Combination Bevel. This tool has a slotted blade which swings on a stud on the stock to any angle desired, and is locked in position by a knurled thumb nut. An auxiliary blade, also furnished, may be easily attached to the slotted blade and is clamped at any angle by a knurled nut. The stock is square at one end and is beveled 45º at the other. The auxiliary blade is beveled to 30º and 60º at opposite ends. Stock and blades are approximately 4 (100mm) long. The tool lies flat on the work. It may also be used with No. 193 Protractor. PROTRACTORS AND ANGLE MEASUREMENTS
