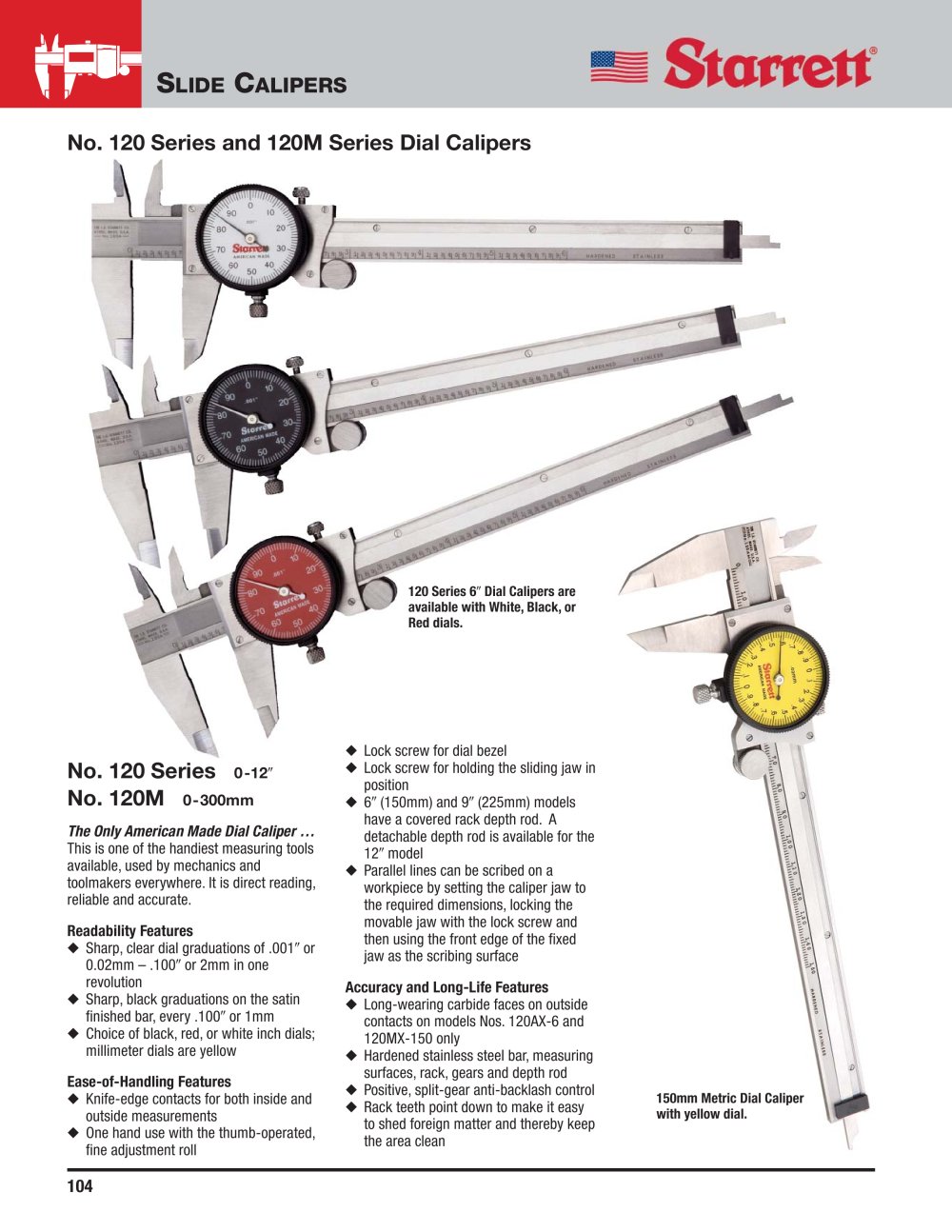

104 No. 120 Series 0-12 No. 120M 0-300mm The Only American Made Dial Caliper … This is one of the handiest measuring tools available, used by mechanics and toolmakers everywhere. It is direct reading, reliable and accurate. Readability Features Ÿ Sharp, clear dial graduations of .001 or 0.02mm – .100 or 2mm in one revolution Ÿ Sharp, black graduations on the satin finished bar, every .100 or 1mm Ÿ Choice of black, red, or white inch dials; millimeter dials are yellow Ease-of-Handling Features Ÿ Knife-edge contacts for both inside and outside measurements Ÿ One hand use with the thumb-operated, fine adjustment roll 120 Series 6 Dial Calipers are available with White, Black, or Red dials. Ÿ Lock screw for dial bezel Ÿ Lock screw for holding the sliding jaw in position Ÿ 6 (150mm) and 9 (225mm) models have a covered rack depth rod. A detachable depth rod is available for the 12 model Ÿ Parallel lines can be scribed on a workpiece by setting the caliper jaw to the required dimensions, locking the movable jaw with the lock screw and then using the front edge of the fixed jaw as the scribing surface Accuracy and Long-Life Features Ÿ Long-wearing carbide faces on outside contacts on models Nos. 120AX-6 and 120MX-150 only Ÿ Hardened stainless steel bar, measuring surfaces, rack, gears and depth rod Ÿ Positive, split-gear anti-backlash control Ÿ Rack teeth point down to make it easy to shed foreign matter and thereby keep the area clean SLIDE CALIPERS 150mm Metric Dial Caliper with yellow dial. No. 120 Series and 120M Series Dial Calipers

105 Graduation – .001 Range Dial Color Description Catalog No. EDP No. Caliper in Case* 120A-6 64514 Caliper, Standard Letter of 120A-6 W/SLC 66568 White Certification†, in Case* 0-6 Caliper with Carbide Faces 120X-6 65909 in Case* Caliper in Case* B120A-6 64515 Black Caliper, Standard Letter of B120A-6 W/SLC 66917 Certification†, in Case* Caliper in Case* R120A-6 64516 Red Caliper, Standard Letter of R120A-6 W/SLC 66918 Certification†, in Case* 0-9 Caliper in Finished Wood Case 120AZ-9 64520 Caliper without Case 120A-9 64517 Caliper in Finished Wood Case 120Z-12 56693 Caliper, Standard Letter...

106 For many applications, the dimension being checked is specified as a fraction. Since dial calipers display measurements as decimals, the person doing the measurement must convert the decimal readout from the dial into a fraction – inconvenient at best, and sometimes leading to errors. The Starrett 1202F solves this problem. The 1202F shows measurements as fractions on the yellow outer scale with 1/64th inch graduations, and decimal measurements on the white inner scale with 1/100th inch graduations. Range Description Catalog No. EDP No. 0-4 1202-4 68814 0-6 1202-6 66964 0-8 1202-8 66979 0-12...

107 Center Distance Attachment PT26151 / EDP 64440 A set of two jaws with body sizes of .400 and conical points, enabling the user to measure the center distance between holes or center-punched locations that are at least .400 apart and less than .400 in diameter. Ÿ Can be used with metric calipers by setting the caliper to 10.16mm Ÿ Will fit Starrett Nos. 797 and 120, 6 through 12, No. 123, 6 through 24, and No. 1202, 4 through 12 sizes Offset Dial Caliper No. 120J 0-6 This tool has an adjustable jaw for versatility when measuring different planes that can’t be reached with a regular caliper....
