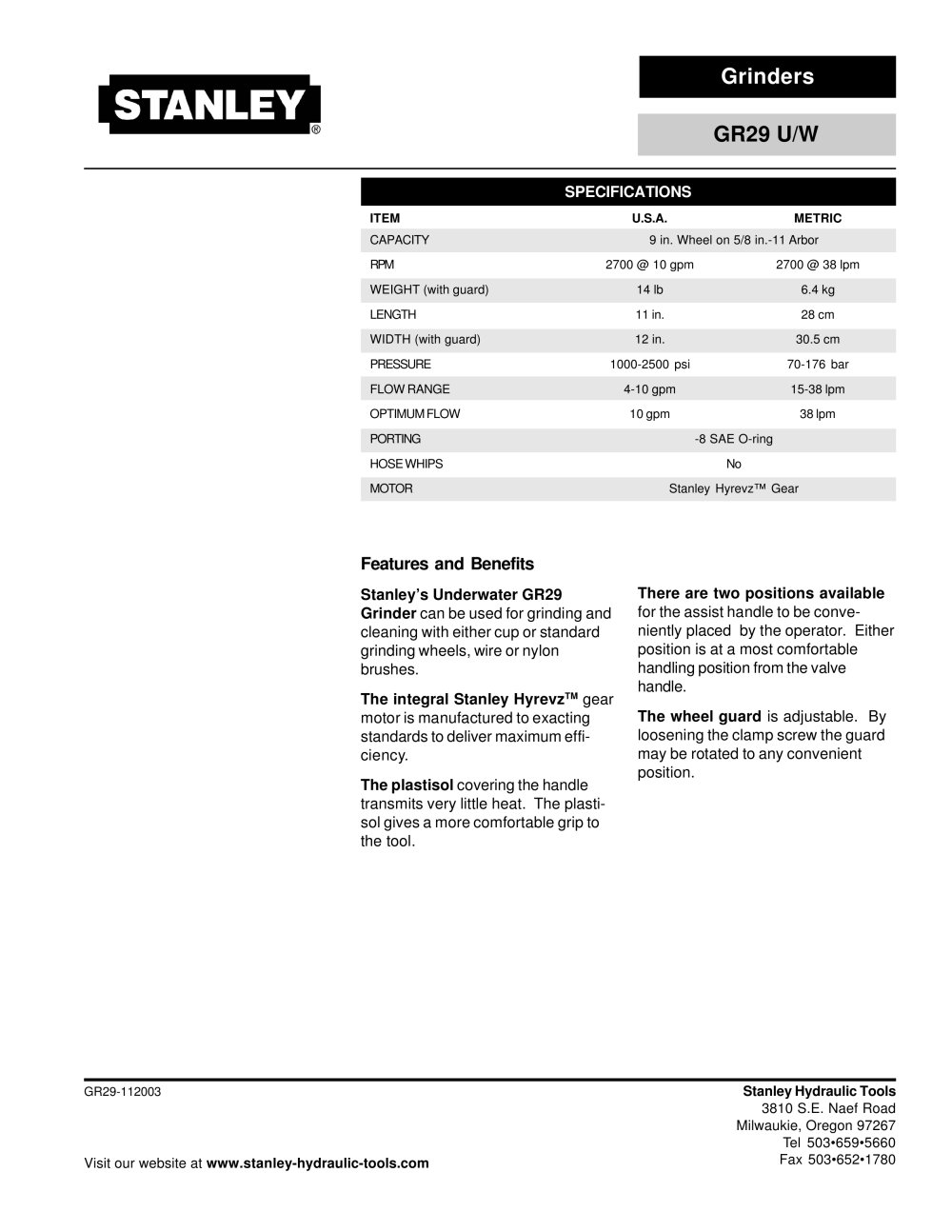

GR29-112003 SPECIFICATIONS Stanley Hydraulic Tools 3810 S.E. Naef Road Milwaukie, Oregon 97267 Tel 503•659•5660 Visit our website at www.stanley-hydraulic-tools.com Fax 503•652•1780 Grinders Features and Benefits Stanley’s Underwater GR29 Grinder can be used for grinding and cleaning with either cup or standard grinding wheels, wire or nylon brushes. The integral Stanley HyrevzTM gear motor is manufactured to exacting standards to deliver maximum efficiency. The plastisol covering the handle transmits very little heat. The plastisol gives a more comfortable grip to the tool. GR29 U/W There are two positions available for the assist handle to be conveniently placed by the operator. Either position is at a most comfortable handling position from the valve handle. The wheel guard is adjustable. By loosening the clamp screw the guard may be rotated to any convenient position. ITEM U.S.A. METRIC CAPACITY 9 in. Wheel on 5/8 in.-11 Arbor RPM 2700 @ 10 gpm 2700 @ 38 lpm WEIGHT (with guard) 14 lb 6.4 kg LENGTH 11 in. 28 cm WIDTH (with guard) 12 in. 30.5 cm PRESSURE 1000-2500 psi 70-176 bar FLOW RANGE 4-10 gpm 15-38 lpm OPTIMUM FLOW 10 gpm 38 lpm PORTING -8 SAE O-ring HOSE WHIPS No MOTOR Stanley Hyrevz™ Gear
