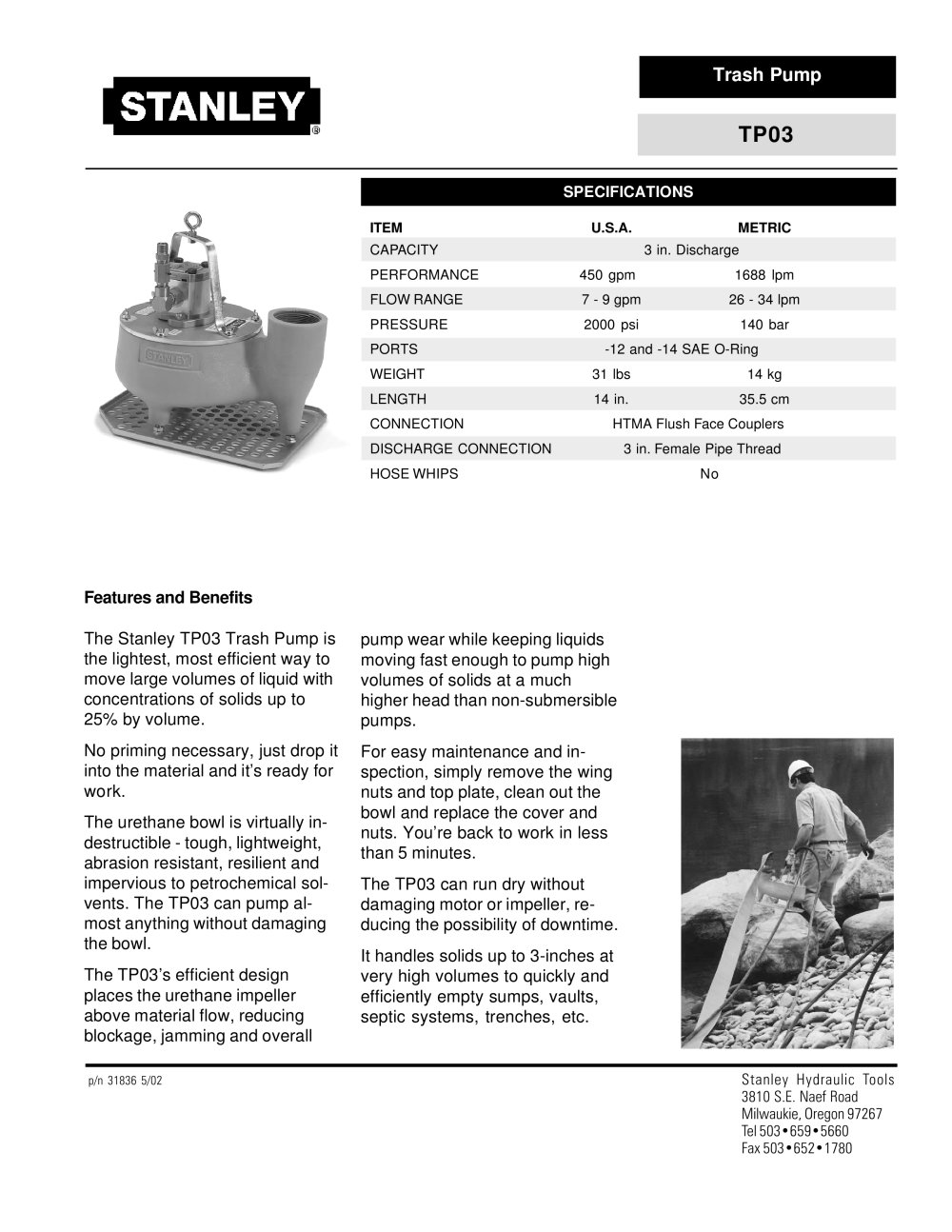

Trash Pump - Stanley Hydraulic Tools - #1

Text version of the page

Trash Pump Features and Benefits SPECIFICATIONS








!! "
# #  $%
# #! ITEM U.S.A. METRIC CAPACITY 3 in. Discharge PERFORMANCE 450 gpm 1688 lpm FLOW RANGE 7 - 9 gpm 26 - 34 lpm PRESSURE 2000 psi 140 bar PORTS -12 and -14 SAE O-Ring WEIGHT 31 lbs 14 kg LENGTH 14 in. 35.5 cm CONNECTION HTMA Flush Face Couplers DISCHARGE CONNECTION 3 in. Female Pipe Thread HOSE WHIPS No TP03 The Stanley TP03 Trash Pump is the lightest, most efficient way to move large volumes of liquid with concentrations of solids up to 25% by volume. No priming necessary, just drop it into the material and it’s ready for work. The urethane bowl is virtually indestructible - tough, lightweight, abrasion resistant, resilient and impervious to petrochemical solvents. The TP03 can pump almost anything without damaging the bowl. The TP03’s efficient design places the urethane impeller above material flow, reducing blockage, jamming and overall pump wear while keeping liquids moving fast enough to pump high volumes of solids at a much higher head than non-submersible pumps. For easy maintenance and inspection, simply remove the wing nuts and top plate, clean out the bowl and replace the cover and nuts. You’re back to work in less than 5 minutes. The TP03 can run dry without damaging motor or impeller, reducing the possibility of downtime. It handles solids up to 3-inches at very high volumes to quickly and efficiently empty sumps, vaults, septic systems, trenches, etc.
