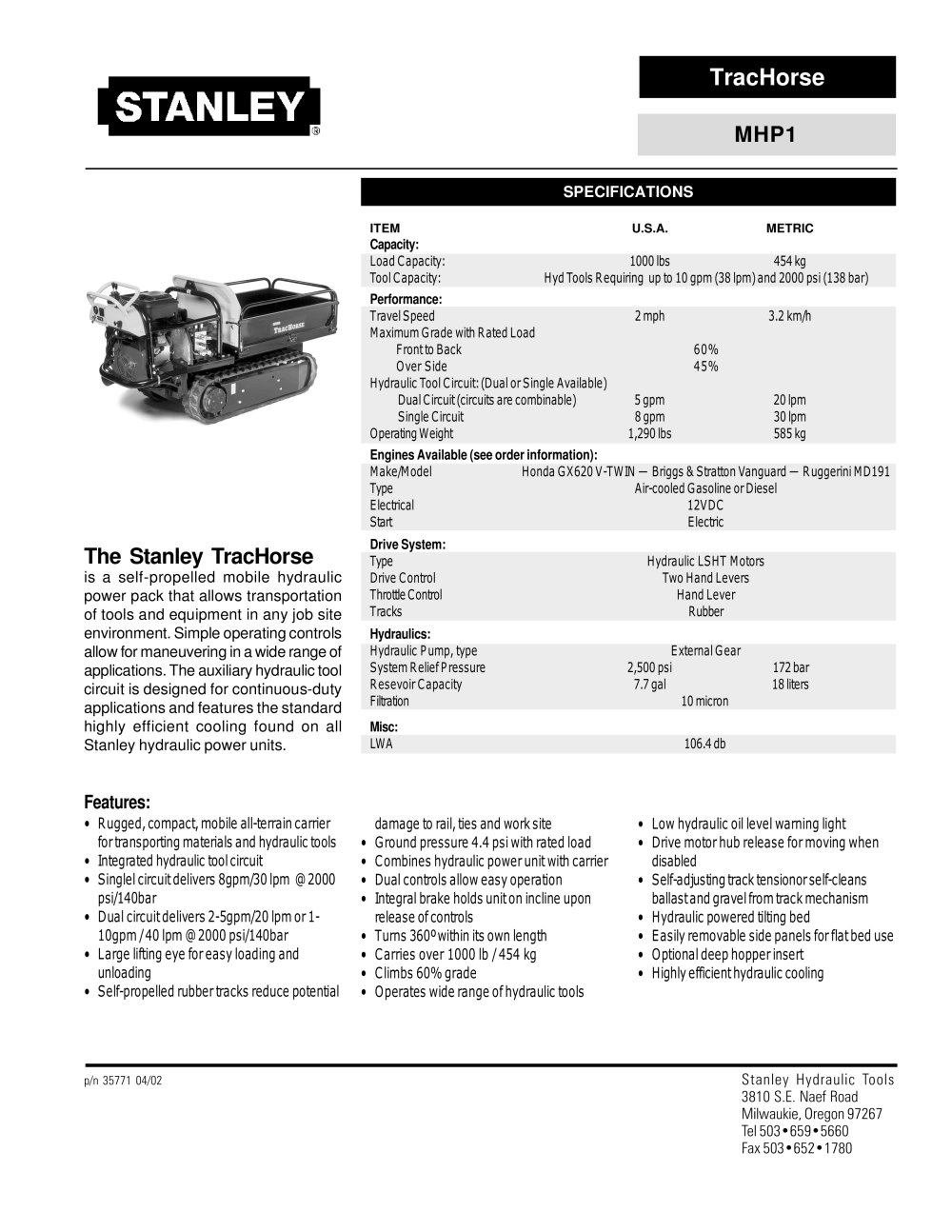

TracHorse SPECIFICATIONS

         !" # $"!$"" %& $"$ ITEM U.S.A. METRIC Capacity: Load Capacity: 1000 lbs 454 kg Tool Capacity: Hyd Tools Requiring up to 10 gpm (38 lpm) and 2000 psi (138 bar) Performance: Travel Speed 2 mph 3.2 km/h Maximum Grade with Rated Load Front to Back 60% Over Side 45% Hydraulic Tool Circuit: (Dual or Single Available) Dual Circuit (circuits are combinable) 5 gpm 20 lpm Single Circuit 8 gpm 30 lpm Operating Weight 1,290 lbs 585 kg Engines Available (see order information): Make/Model Honda GX620 V-TWIN — Briggs & Stratton Vanguard — Ruggerini MD191 Type Air-cooled Gasoline or Diesel Electrical 12VDC Start Electric Drive System: Type Hydraulic LSHT Motors Drive Control Two Hand Levers Throttle Control Hand Lever Tracks Rubber Hydraulics: Hydraulic Pump, type External Gear System Relief Pressure 2,500 psi 172 bar Resevoir Capacity 7.7 gal 18 liters Filtration 10 micron Misc: LWA 106.4 db MHP1 The Stanley TracHorse is a self-propelled mobile hydraulic power pack that allows transportation of tools and equipment in any job site environment. Simple operating controls allow for maneuvering in a wide range of applications. The auxiliary hydraulic tool circuit is designed for continuous-duty applications and features the standard highly efficient cooling found on all Stanley hydraulic power units. Features: • Rugged, compact, mobile all-terrain carrier for transporting materials and hydraulic tools • Integrated hydraulic tool circuit • Singlel circuit delivers 8gpm/30 lpm @2000 psi/140bar • Dual circuit delivers 2-5gpm/20 lpm or 1- 10gpm / 40 lpm @2000 psi/140bar • Large lifting eye for easy loading and unloading • Self-propelled rubber tracks reduce potential damage to rail, ties and work site • Ground pressure 4.4 psi with rated load • Combines hydraulic power unit with carrier • Dual controls allow easy operation • Integral brake holds unit on incline upon release of controls • Turns 360º within its own length • Carries over 1000 lb / 454 kg • Climbs 60% grade • Operates wide range of hydraulic tools • Low hydraulic oil level warning light • Drive motor hub release for moving when disabled • Self-adjusting track tensionor self-cleans ballast and gravel from track mechanism • Hydraulic powered tilting bed • Easily removable side panels for flat bed use • Optional deep hopper insert • Highly efficient hydraulic cooling
