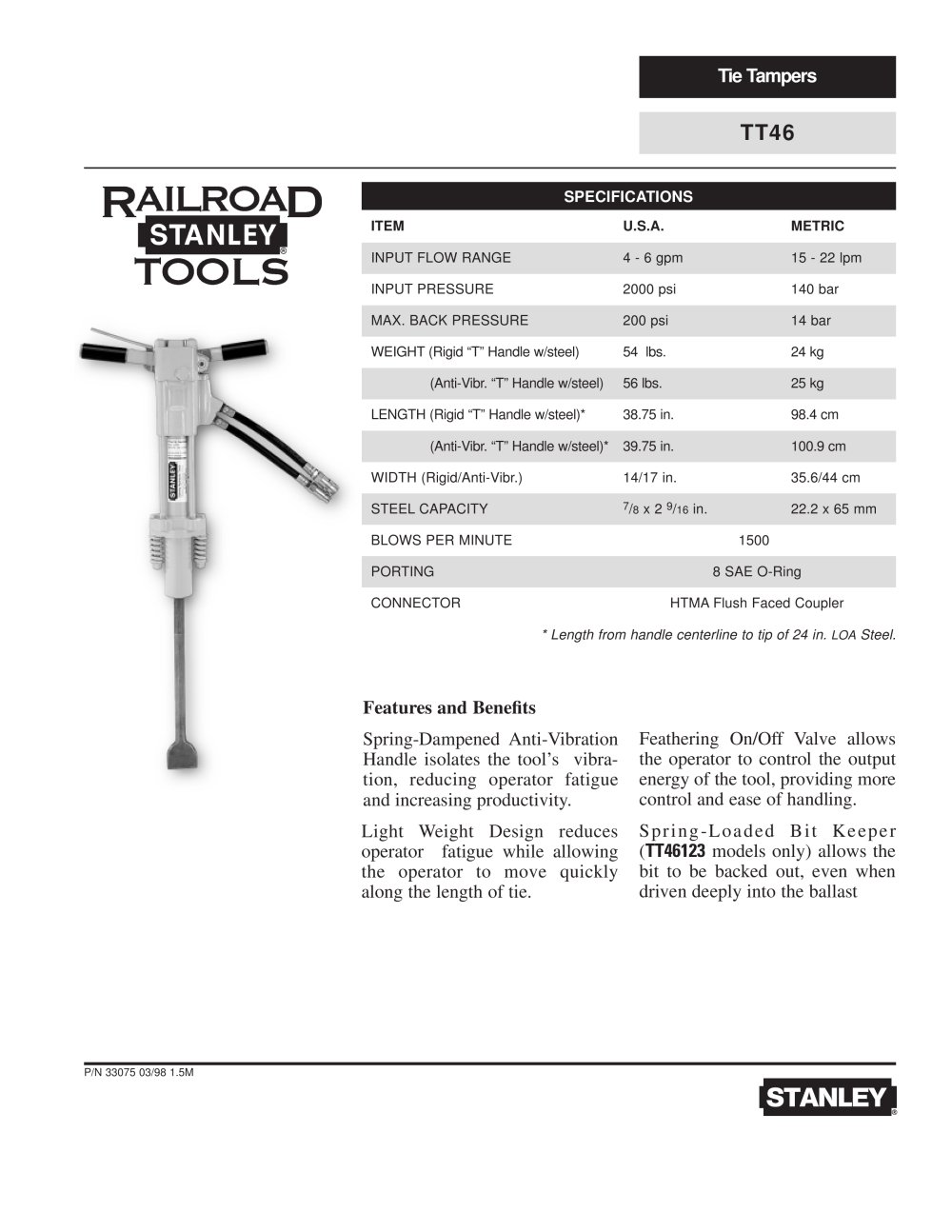

Tie Tampers TT46 SPECIFICATIONS Features and Benefits Spring-Dampened Anti-Vibration Handle isolates the tool’s vibration, reducing operator fatigue and increasing productivity. Light Weight Design reduces operator fatigue while allowing the operator to move quickly along the length of tie. Feathering On/Off Valve allows the operator to control the output energy of the tool, providing more control and ease of handling. Spring-Loaded Bit Keeper (TT46123 models only) allows the bit to be backed out, even when driven deeply into the ballast ITEM U.S.A. METRIC INPUT FLOW RANGE 4 - 6 gpm 15 - 22 lpm INPUT PRESSURE 2000 psi 140 bar MAX. BACK PRESSURE 200 psi 14 bar WEIGHT (Rigid “T” Handle w/steel) 54 lbs. 24 kg (Anti-Vibr. “T” Handle w/steel) 56 lbs. 25 kg LENGTH (Rigid “T” Handle w/steel)* 38.75 in. 98.4 cm (Anti-Vibr. “T” Handle w/steel)* 39.75 in. 100.9 cm WIDTH (Rigid/Anti-Vibr.) 14/17 in. 35.6/44 cm STEEL CAPACITY 7/8 x 2 9/16 in. 22.2 x 65 mm BLOWS PER MINUTE 1500 PORTING 8 SAE O-Ring CONNECTOR HTMA Flush Faced Coupler * Length from handle centerline to tip of 24 in. LOA Steel. P/N 33075 03/98 1.5M
