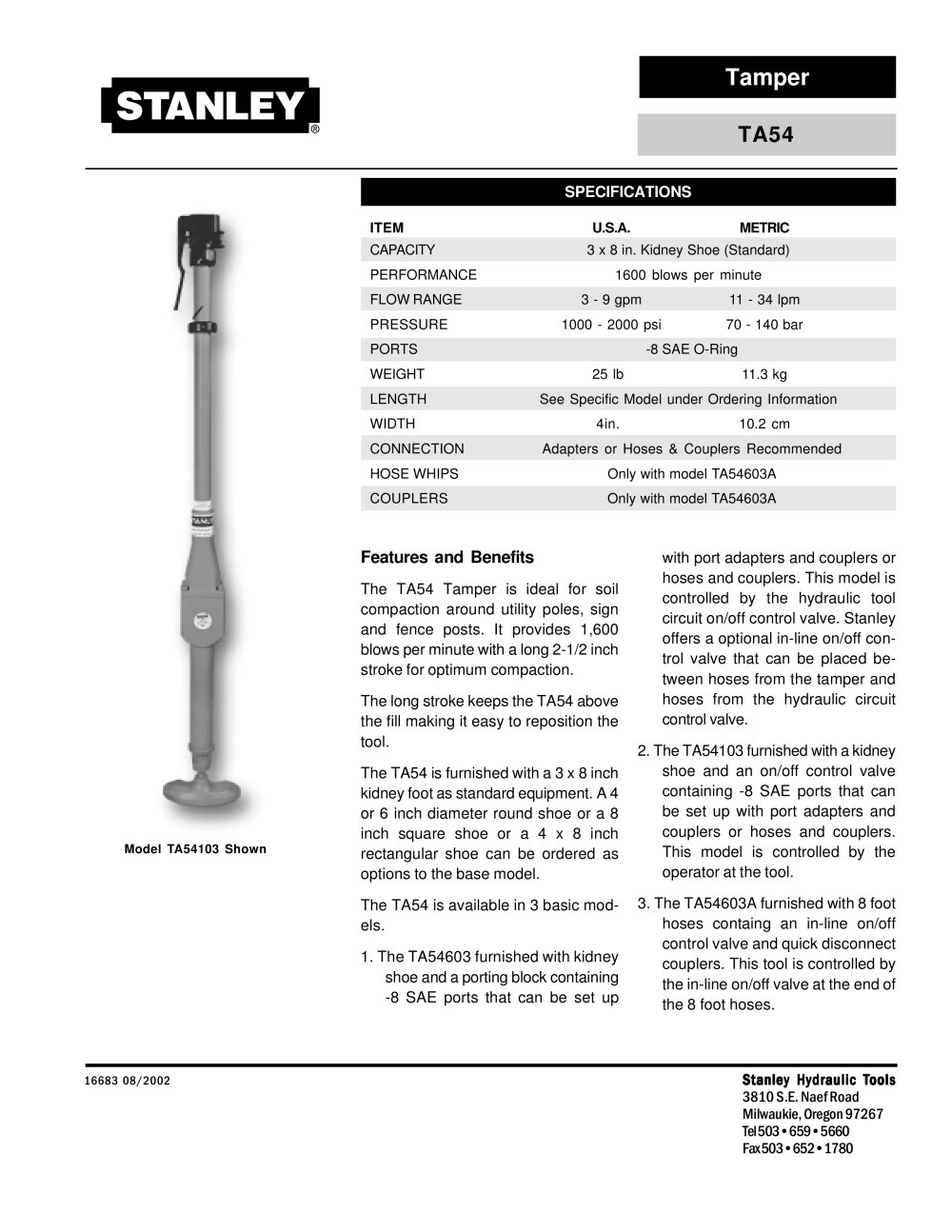

Tamper SPECIFICATIONS 16683 08/2002 Stanley Hydraulic Tools 3810 S.E. Naef Road Milwaukie, Oregon 97267 Tel 503•659•5660 Fax 503•652•1780 ITEM U.S.A. METRIC CAPACITY 3 x 8 in. Kidney Shoe (Standard) PERFORMANCE 1600 blows per minute FLOW RANGE 3 - 9 gpm 11 - 34 lpm PRESSURE 1000 - 2000 psi 70 - 140 bar PORTS -8 SAE O-Ring WEIGHT 25 lb 11.3 kg LENGTH See Specific Model under Ordering Information WIDTH 4in. 10.2 cm CONNECTION Adapters or Hoses & Couplers Recommended HOSE WHIPS Only with model TA54603A COUPLERS Only with model TA54603A TA54 Features and Benefits The TA54 Tamper is ideal for soil compaction around utility poles, sign and fence posts. It provides 1,600 blows per minute with a long 2-1/2 inch stroke for optimum compaction. The long stroke keeps the TA54 above the fill making it easy to reposition the tool. The TA54 is furnished with a 3 x 8 inch kidney foot as standard equipment. A 4 or 6 inch diameter round shoe or a 8 inch square shoe or a 4 x 8 inch rectangular shoe can be ordered as options to the base model. The TA54 is available in 3 basic models. 1. The TA54603 furnished with kidney shoe and a porting block containing -8 SAE ports that can be set up with port adapters and couplers or hoses and couplers. This model is controlled by the hydraulic tool circuit on/off control valve. Stanley offers a optional in-line on/off control valve that can be placed between hoses from the tamper and hoses from the hydraulic circuit control valve. 2. The TA54103 furnished with a kidney shoe and an on/off control valve containing -8 SAE ports that can be set up with port adapters and couplers or hoses and couplers. This model is controlled by the operator at the tool. 3. The TA54603A furnished with 8 foot hoses containg an in-line on/off control valve and quick disconnect couplers. This tool is controlled by the in-line on/off valve at the end of the 8 foot hoses. Model TA54103 Shown
