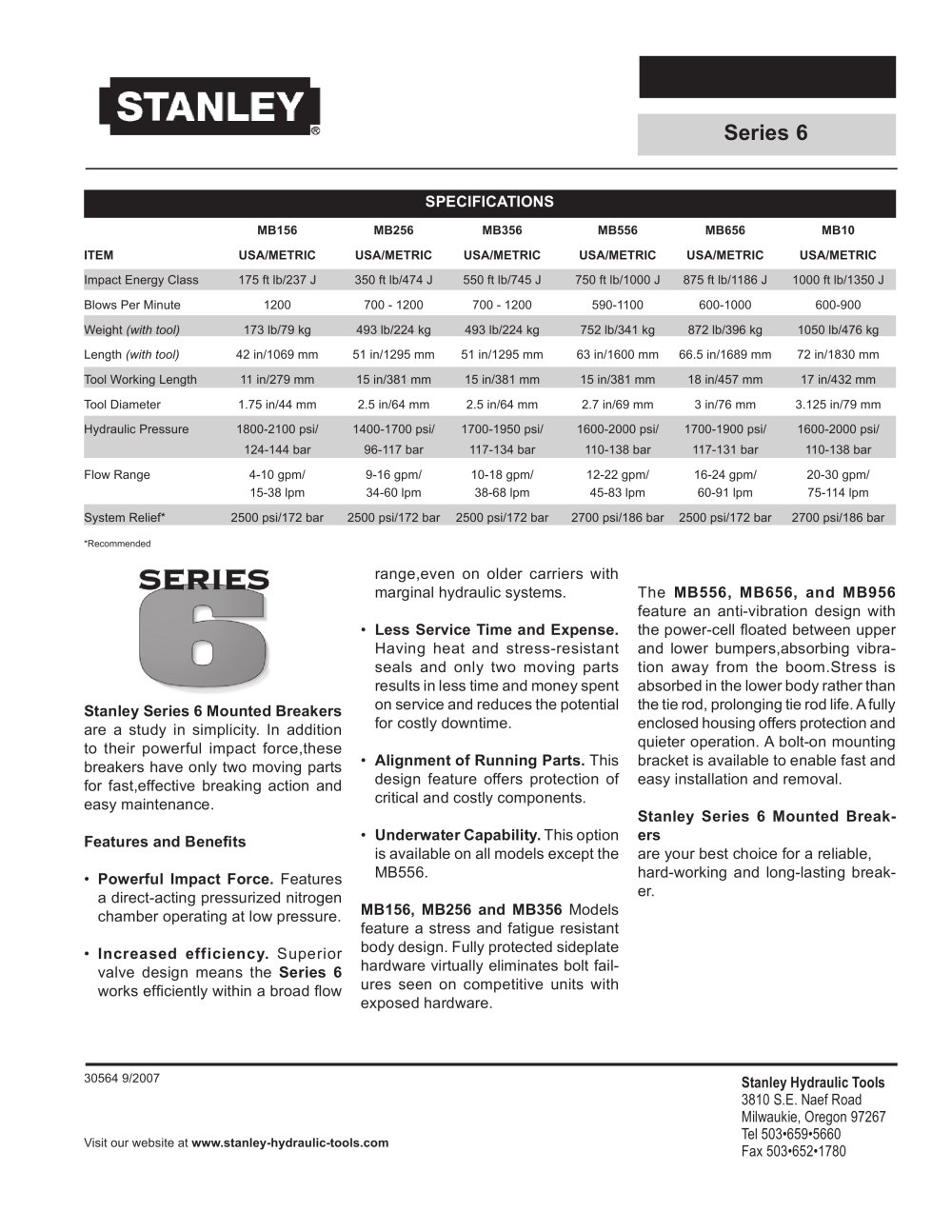

SPECIFICATIONS 30564 9/2007 Stanley Hydraulic Tools 3810 S.E. Naef Road Milwaukie, Oregon 97267 Tel 503•659•5660 Fax 503•652•1780 Series 6 MB156 MB256 MB356 MB556 MB656 MB10 ITEM USA/METRIC USA/METRIC USA/METRIC USA/METRIC USA/METRIC USA/METRIC Impact Energy Class 175 ft lb/237 J 350 ft lb/474 J 550 ft lb/745 J 750 ft lb/1000 J 875 ft lb/1186 J 1000 ft lb/1350 J Blows Per Minute 1200 700 - 1200 700 - 1200 590-1100 600-1000 600-900 Weight (with tool) 173 lb/79 kg 493 lb/224 kg 493 lb/224 kg 752 lb/341 kg 872 lb/396 kg 1050 lb/476 kg Length (with tool) 42 in/1069 mm 51 in/1295 mm 51 in/1295 mm 63 in/1600 mm 66.5 in/1689 mm 72 in/1830 mm Tool Working Length 11 in/279 mm 15 in/381 mm 15 in/381 mm 15 in/381 mm 18 in/457 mm 17 in/432 mm Tool Diameter 1.75 in/44 mm 2.5 in/64 mm 2.5 in/64 mm 2.7 in/69 mm 3 in/76 mm 3.125 in/79 mm Hydraulic Pressure 1800-2100 psi/ 1400-1700 psi/ 1700-1950 psi/ 1600-2000 psi/ 1700-1900 psi/ 1600-2000 psi/ 124-144 bar 96-117 bar 117-134 bar 110-138 bar 117-131 bar 110-138 bar Flow Range 4-10 gpm/ 9-16 gpm/ 10-18 gpm/ 12-22 gpm/ 16-24 gpm/ 20-30 gpm/ 15-38 lpm 34-60 lpm 38-68 lpm 45-83 lpm 60-91 lpm 75-114 lpm System Relief* 2500 psi/172 bar 2500 psi/172 bar 2500 psi/172 bar 2700 psi/186 bar 2500 psi/172 bar 2700 psi/186 bar *Recommended Stanley Series 6 Mounted Breakers are a study in simplicity. In addition to their powerful impact force,these breakers have only two moving parts for fast,effective breaking action and easy maintenance. Features and Benefits • Powerful Impact Force. Features a direct-acting pressurized nitrogen chamber operating at low pressure. • Increased efficiency. Superior valve design means the Series 6 works efficiently within a broad flow range,even on older carriers with marginal hydraulic systems. • Less Service Time and Expense. Having heat and stress-resistant seals and only two moving parts results in less time and money spent on service and reduces the potential for costly downtime. • Alignment of Running Parts. This design feature offers protection of critical and costly components. • Underwater Capability. This option is available on all models except the MB556. MB156, MB256 and MB356 Models feature a stress and fatigue resistant body design. Fully protected sideplate hardware virtually eliminates bolt failures seen on competitive units with exposed hardware. The MB556, MB656, and MB956 feature an anti-vibration design with the power-cell floated between upper and lower bumpers,absorbing vibration away from the boom.Stress is absorbed in the lower body rather than the tie rod, prolonging tie rod life. A fully enclosed housing offers protection and quieter operation. A bolt-on mounting bracket is available to enable fast and easy installation and removal. Stanley Series 6 Mounted Breakers are your best choice for a reliable, hard-working and long-lasting breaker. Visit our website at www.stanley-hydraulic-tools.com
