Power Units

HP1/HPR Compact

OPERATION AND PERFORMANCE

HP1 COMPACT

HPR


ITEM	U.S.A.	METRIC	U.S.A.	METRIC
Output	5 or 8 gpm @ 2000 psi	20 or 30 lpm @ 140 bar	(2) 5 gpm @ 2000 psi circuits (1) 10 gpm @ 2000 psi circuit	(2) 20 lpm @ 140 bar circuit (1) 38 lpm @ 140 bar circuit
Length	35.5 in.	90.17 cm	35.5 in.	90.17 cm
Width	23.25 in.	59.06 cm	23.25 in.	59.06 cm
Height	29 in.	74 cm	29 in.	74 cm
Weight (less fuel)	276 lbs	125 kg	286 lbs	130 kg
Fuel Consumption	1.3 gph	4 lph	1.3 gph	4 lph
Engine Lube System	Pressure Lube/Low Engine Oil Shutoff		Pressure Lube/Low Engine Oil Shutdown
Running Gear	12 in. Wheels Retractable Handles	31 cm Wheels Retractable Handles	12 in. Wheels Retractable Handles	31 cm Wheels Retractable Handles
Fuel Tank Capacity	4.2 gal.	16 ltr	4.2 gal.	16 ltr
Hydraulic Reservoir Capacity	2.7 gal.	10 ltr	2.7 gal.	10 ltr
Engine	18 hp Vanguard IC V-Twin (OHV)

Stanley's compact power units feature the most efficient hydraulic circuits available in a portable power unit today.

Equipped with a high-speed blower and large air-to-oil cooler, our power units

Built to meet the tough HTMA standards. HTMA standards so they'll provide sure

20 hp Honda (OHV)

Equipped with a high-speed blower and large air-to-oil cooler, our power units provide a source for clean and cool hydraulic power under the toughest operating conditions.

All models feature either the powerful Briggs & Stratton Vanguard OHV V-Twin, or Honda OHV GX620 engine. These high-torque engines are fuel efficient, have lower exhaust emissions, yet run quieter than most engines their size.

These power units are easy to service too - both the engine and the hydraulic spin-on filters are a snap to change. A large readily available commercial battery is fully enclosed in a battery box.

Stanley Features

• Rugged Side Handles

Run the entire length of the unit on both sides for easy lifting and protection.

• Automatic Throttle Mechanism

Provides automatic throttling when the tool is engaged, and return to idle when disengaged.

• Sealed No-Maintenance Battery

The 35-Ah battery is sealed, non-spill-able and requires no maintenance.

• Fiberglass Pack Muffler

Quiet operation - only 85 db during normal operation.

Low Oil Pressure Shutoff

A standard feature to protect the engine from low lubrication conditions.

Swing Away Lifting Eye

Makes lifting quick and easy using overhead lifting devices.

P/N 14530 3/02

STANLEY

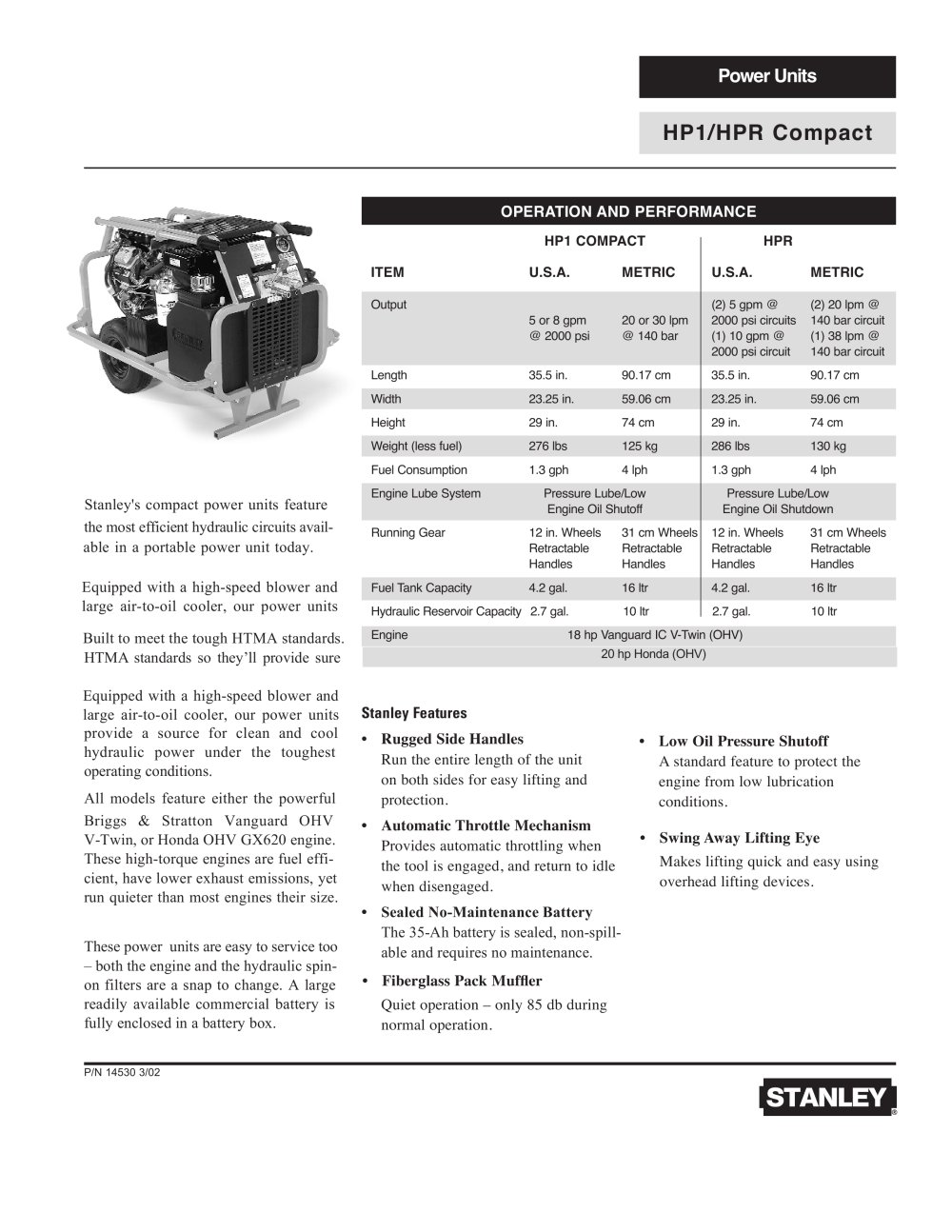

Small Hydraulic Power Unit - Stanley Hydraulic Tools - #1
