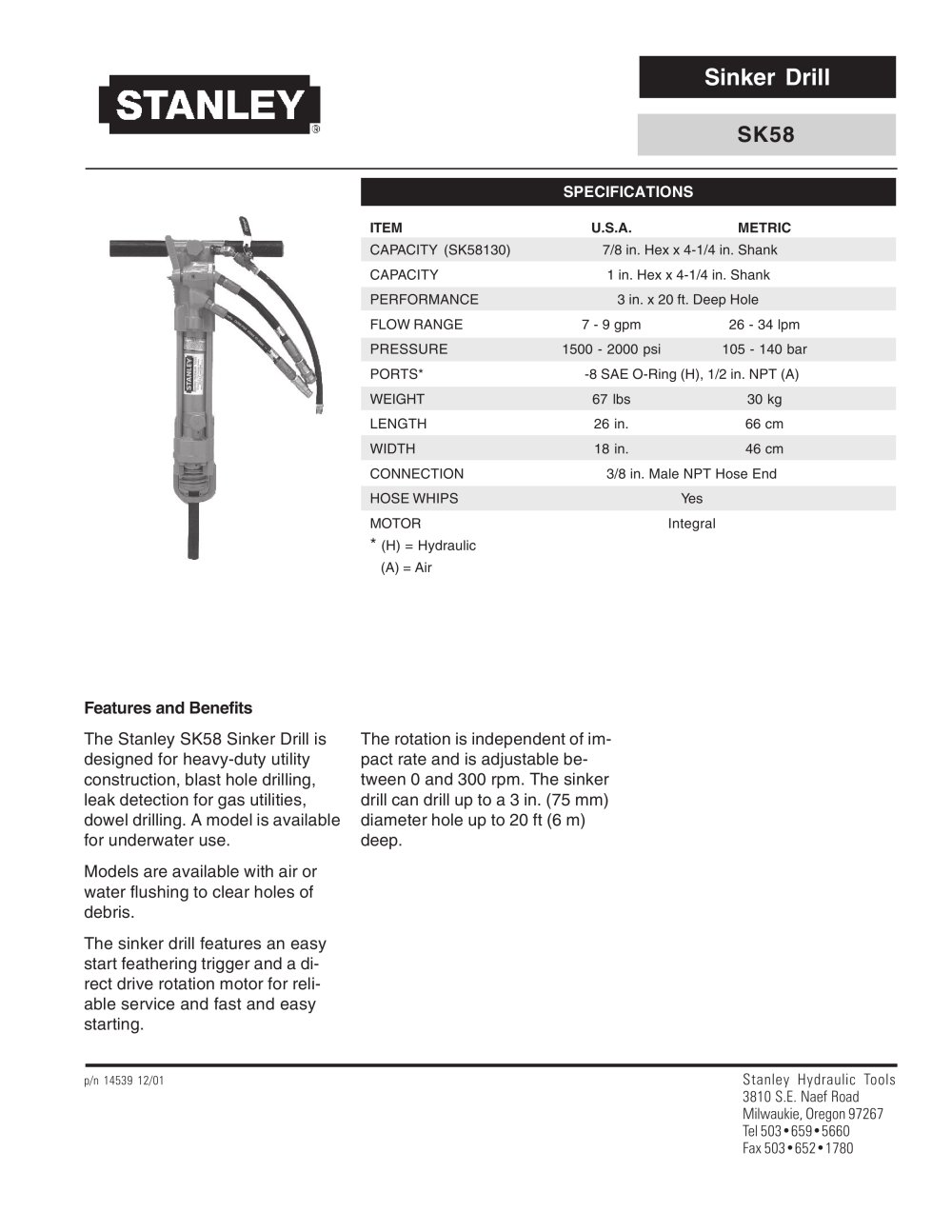

Sinker Drill Features and Benefits The Stanley SK58 Sinker Drill is designed for heavy-duty utility construction, blast hole drilling, leak detection for gas utilities, dowel drilling. A model is available for underwater use. Models are available with air or water flushing to clear holes of debris. The sinker drill features an easy start feathering trigger and a direct drive rotation motor for reliable service and fast and easy starting. SPECIFICATIONS

         ! "! #$" $"" %&$" $! ITEM U.S.A. METRIC CAPACITY (SK58130) 7/8 in. Hex x 4-1/4 in. Shank CAPACITY 1 in. Hex x 4-1/4 in. Shank PERFORMANCE 3 in. x 20 ft. Deep Hole FLOW RANGE 7 - 9 gpm 26 - 34 lpm PRESSURE 1500 - 2000 psi 105 - 140 bar PORTS* -8 SAE O-Ring (H), 1/2 in. NPT (A) WEIGHT 67 lbs 30 kg LENGTH 26 in. 66 cm WIDTH 18 in. 46 cm CONNECTION 3/8 in. Male NPT Hose End HOSE WHIPS Yes MOTOR Integral * (H) = Hydraulic (A) = Air SK58 The rotation is independent of impact rate and is adjustable between 0 and 300 rpm. The sinker drill can drill up to a 3 in. (75 mm) diameter hole up to 20 ft (6 m) deep.
