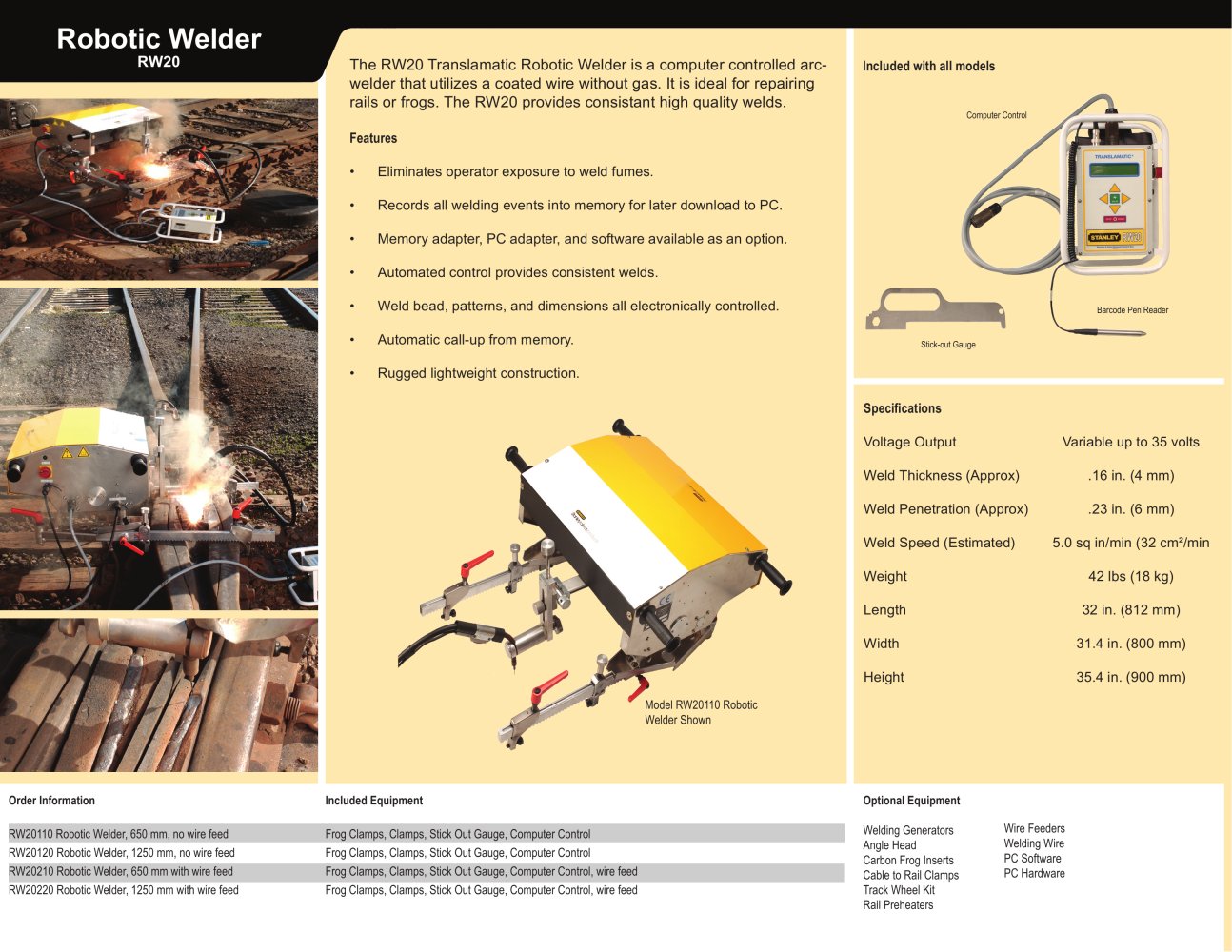

The RW20 Translamatic Robotic Welder is a computer controlled arcwelder that utilizes a coated wire without gas. It is ideal for repairing rails or frogs. The RW20 provides consistant high quality welds. Features • Eliminates operator exposure to weld fumes. • Records all welding events into memory for later download to PC. • Memory adapter, PC adapter, and software available as an option. • Automated control provides consistent welds. • Weld bead, patterns, and dimensions all electronically controlled. • Automatic call-up from memory. • Rugged lightweight construction. Robotic Welder RW20 Included Equipment Frog Clamps, Clamps, Stick Out Gauge, Computer Control Frog Clamps, Clamps, Stick Out Gauge, Computer Control Frog Clamps, Clamps, Stick Out Gauge, Computer Control, wire feed Frog Clamps, Clamps, Stick Out Gauge, Computer Control, wire feed Order Information RW20110 Robotic Welder, 650 mm, no wire feed RW20120 Robotic Welder, 1250 mm, no wire feed RW20210 Robotic Welder, 650 mm with wire feed RW20220 Robotic Welder, 1250 mm with wire feed Optional Equipment Welding Generators Angle Head Carbon Frog Inserts Cable to Rail Clamps Track Wheel Kit Rail Preheaters Specifications Voltage Output Variable up to 35 volts Weld Thickness (Approx) .16 in. (4 mm) Weld Penetration (Approx) .23 in. (6 mm) Weld Speed (Estimated) 5.0 sq in/min (32 cm²/min Weight 42 lbs (18 kg) Length 32 in. (812 mm) Width 31.4 in. (800 mm) Height 35.4 in. (900 mm) Computer Control Model RW20110 Robotic Welder Shown Stick-out Gauge Included with all models Barcode Pen Reader Wire Feeders Welding Wire PC Software PC Hardware
