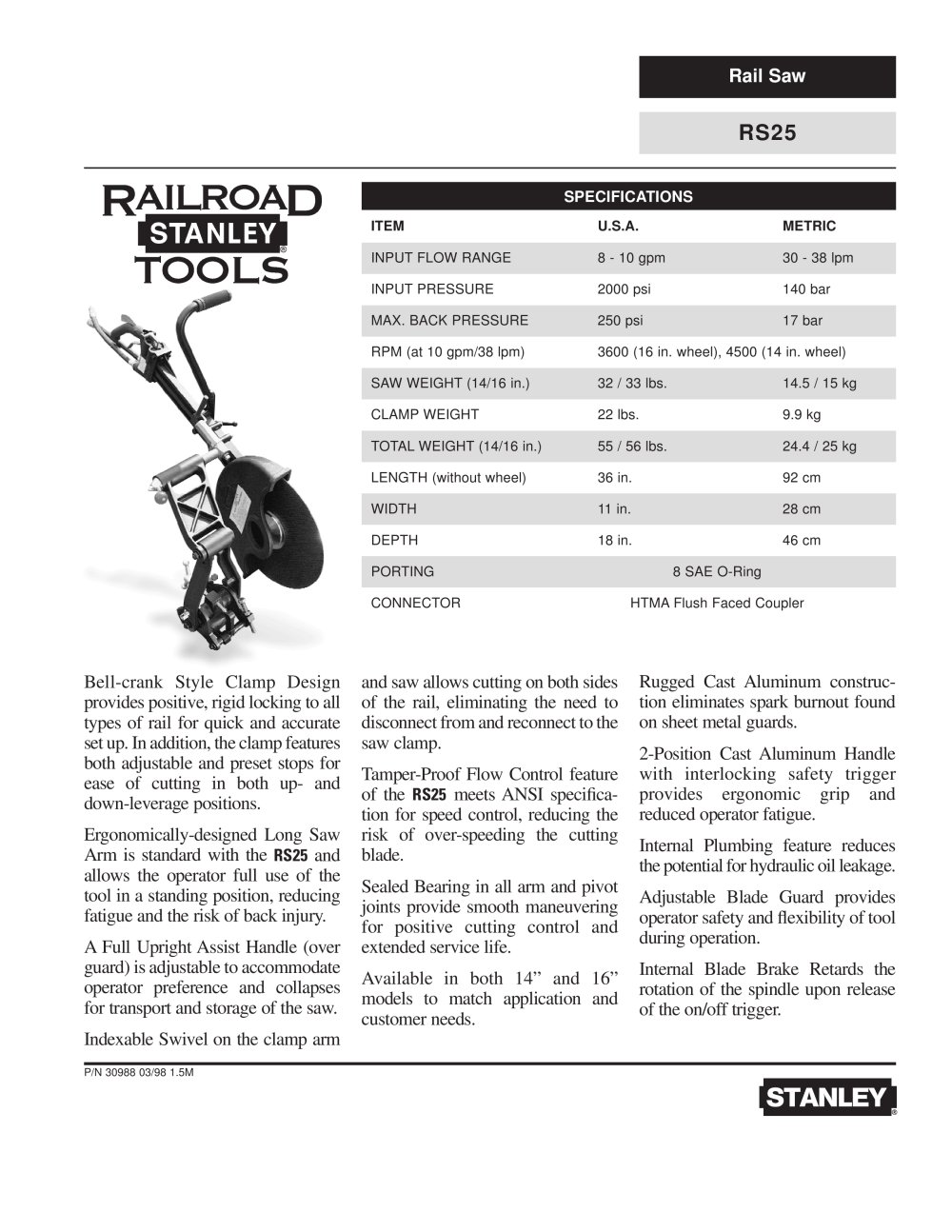

Rail Saw RS25 SPECIFICATIONS Bell-crank Style Clamp Design provides positive, rigid locking to all types of rail for quick and accurate set up. In addition, the clamp features both adjustable and preset stops for ease of cutting in both up- and down-leverage positions. Ergonomically-designed Long Saw Arm is standard with the RS25 and allows the operator full use of the tool in a standing position, reducing fatigue and the risk of back injury. A Full Upright Assist Handle (over guard) is adjustable to accommodate operator preference and collapses for transport and storage of the saw. Indexable Swivel on the clamp arm and saw allows cutting on both sides of the rail, eliminating the need to disconnect from and reconnect to the saw clamp. Tamper-Proof Flow Control feature of the RS25 meets ANSI specification for speed control, reducing the risk of over-speeding the cutting blade. Sealed Bearing in all arm and pivot joints provide smooth maneuvering for positive cutting control and extended service life. Available in both 14” and 16” models to match application and customer needs. Rugged Cast Aluminum construction eliminates spark burnout found on sheet metal guards. 2-Position Cast Aluminum Handle with interlocking safety trigger provides ergonomic grip and reduced operator fatigue. Internal Plumbing feature reduces the potential for hydraulic oil leakage. Adjustable Blade Guard provides operator safety and flexibility of tool during operation. Internal Blade Brake Retards the rotation of the spindle upon release of the on/off trigger. ITEM U.S.A. METRIC INPUT FLOW RANGE 8 - 10 gpm 30 - 38 lpm INPUT PRESSURE 2000 psi 140 bar MAX. BACK PRESSURE 250 psi 17 bar RPM (at 10 gpm/38 lpm) 3600 (16 in. wheel), 4500 (14 in. wheel) SAW WEIGHT (14/16 in.) 32 / 33 lbs. 14.5 / 15 kg CLAMP WEIGHT 22 lbs. 9.9 kg TOTAL WEIGHT (14/16 in.) 55 / 56 lbs. 24.4 / 25 kg LENGTH (without wheel) 36 in. 92 cm WIDTH 11 in. 28 cm DEPTH 18 in. 46 cm PORTING 8 SAE O-Ring CONNECTOR HTMA Flush Faced Coupler P/N 30988 03/98 1.5M
