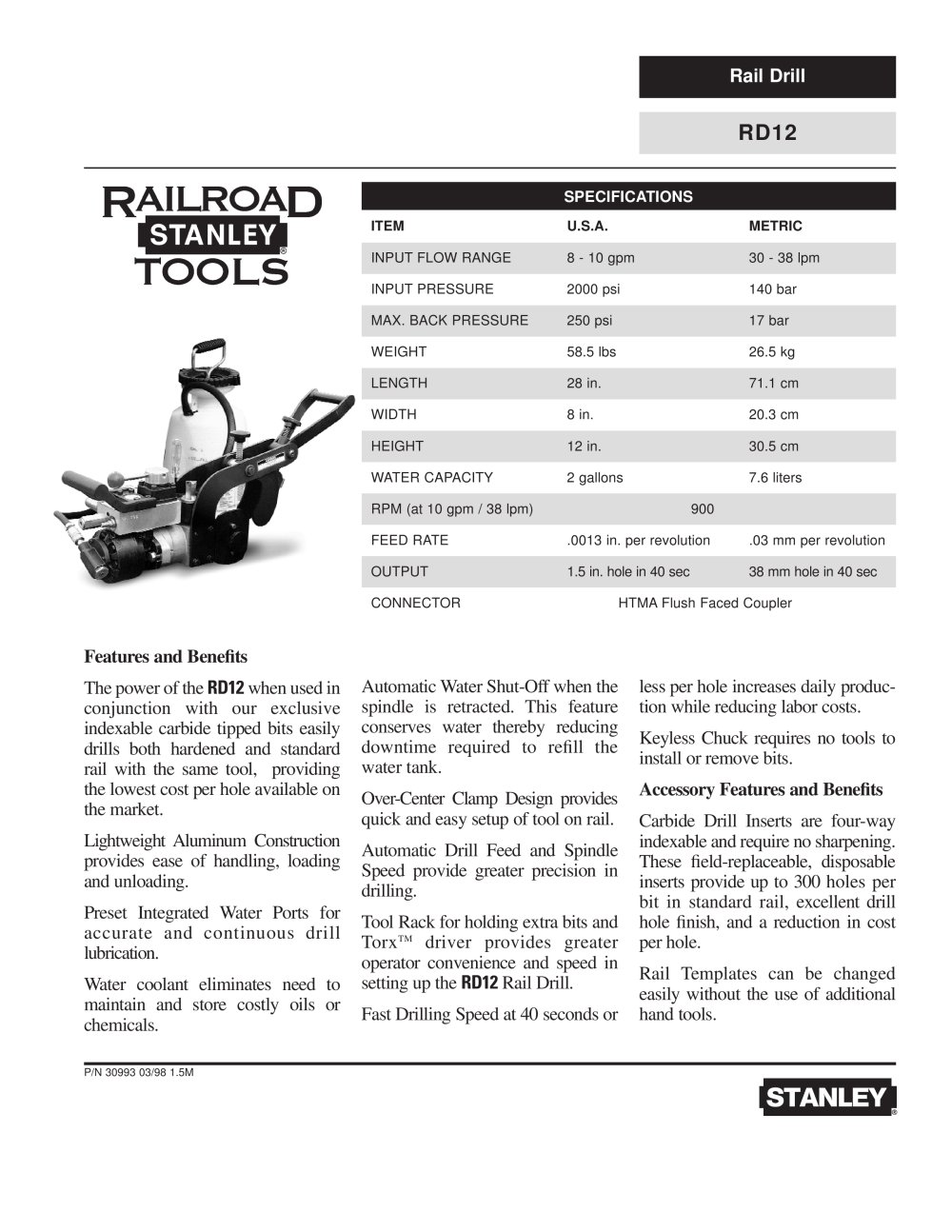

Rail Drill RD12 SPECIFICATIONS Features and Benefits The power of the RD12 when used in conjunction with our exclusive indexable carbide tipped bits easily drills both hardened and standard rail with the same tool, providing the lowest cost per hole available on the market. Lightweight Aluminum Construction provides ease of handling, loading and unloading. Preset Integrated Water Ports for accurate and continuous drill lubrication. Water coolant eliminates need to maintain and store costly oils or chemicals. Automatic Water Shut-Off when the spindle is retracted. This feature conserves water thereby reducing downtime required to refill the water tank. Over-Center Clamp Design provides quick and easy setup of tool on rail. Automatic Drill Feed and Spindle Speed provide greater precision in drilling. Tool Rack for holding extra bits and TorxTM driver provides greater operator convenience and speed in setting up the RD12 Rail Drill. Fast Drilling Speed at 40 seconds or less per hole increases daily production while reducing labor costs. Keyless Chuck requires no tools to install or remove bits. Accessory Features and Benefits Carbide Drill Inserts are four-way indexable and require no sharpening. These field-replaceable, disposable inserts provide up to 300 holes per bit in standard rail, excellent drill hole finish, and a reduction in cost per hole. Rail Templates can be changed easily without the use of additional hand tools. ITEM U.S.A. METRIC INPUT FLOW RANGE 8 - 10 gpm 30 - 38 lpm INPUT PRESSURE 2000 psi 140 bar MAX. BACK PRESSURE 250 psi 17 bar WEIGHT 58.5 lbs 26.5 kg LENGTH 28 in. 71.1 cm WIDTH 8 in. 20.3 cm HEIGHT 12 in. 30.5 cm WATER CAPACITY 2 gallons 7.6 liters RPM (at 10 gpm / 38 lpm) 900 FEED RATE .0013 in. per revolution .03 mm per revolution OUTPUT 1.5 in. hole in 40 sec 38 mm hole in 40 sec CONNECTOR HTMA Flush Faced Coupler P/N 30993 03/98 1.5M
