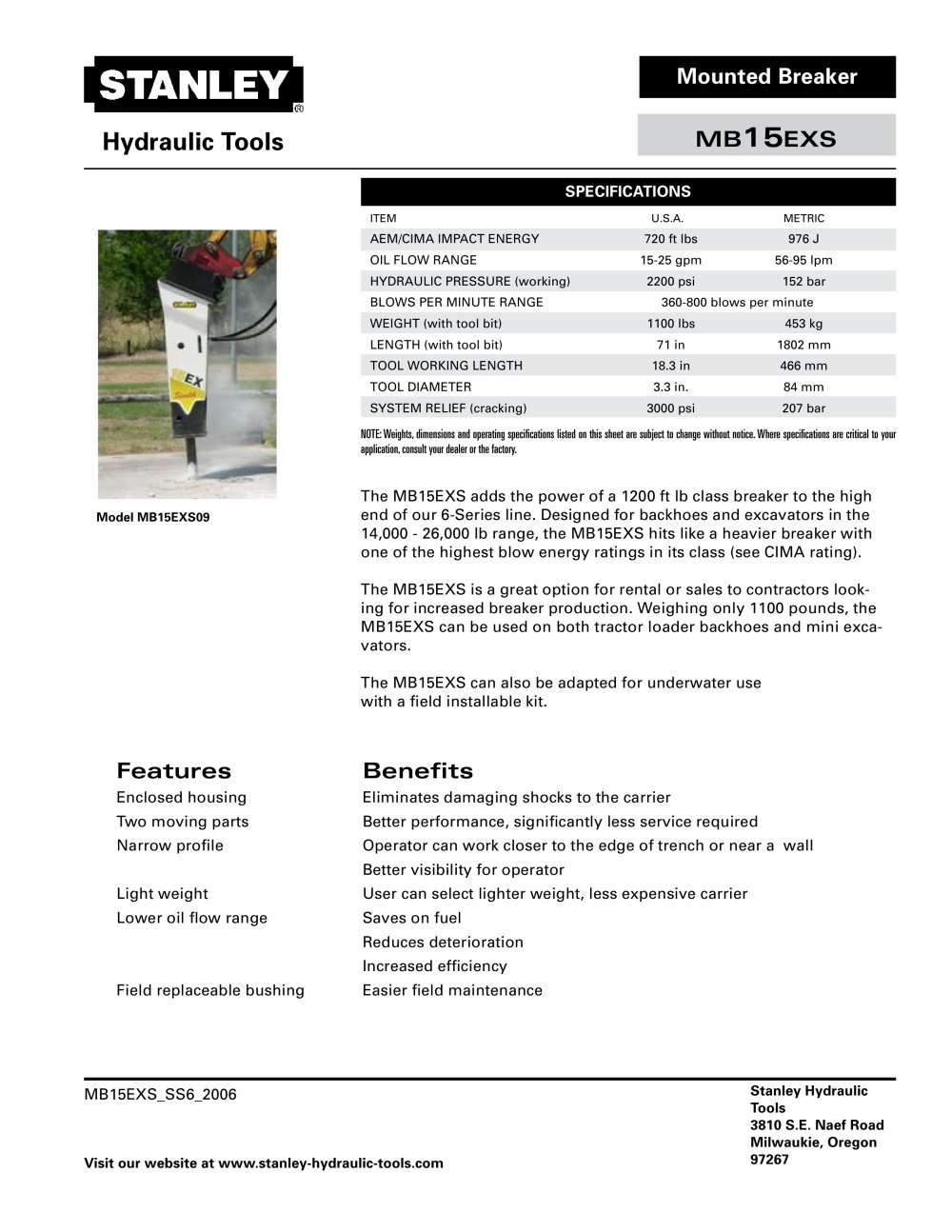

Mounted Breaker - MB15EXS - Stanley Hydraulic Tools - #1

Text version of the page

66658 4-2006 SPECIFICATIONS Stanley Hydraulic Tools 3810 S.E. Naef Road Milwaukie, Oregon Visit our website at www.stanley-hydraulic-tools.com 97267 Hydraulic Tools Mounted Breaker MB15EXS Model MB15EXS09 Features Benefits Enclosed housing Eliminates damaging shocks to the carrier Two moving parts Better performance, significantly less service required Narrow profile Operator can work closer to the edge of trench or near a wall Better visibility for operator Light weight User can select lighter weight, less expensive carrier Lower oil flow range Saves on fuel Reduces deterioration Increased efficiency Field replaceable bushing Easier field maintenance ITEM U.S.A. METRIC AEM/CIMA IMPACT ENERGY 720 ft lbs 976 J OIL FLOW RANGE 15-25 gpm 56-95 lpm HYDRAULIC PRESSURE (working) 2200 psi 152 bar BLOWS PER MINUTE RANGE 360-800 blows per minute WEIGHT (with tool bit) 1100 lbs 453 kg LENGTH (with tool bit) 71 in 1802 mm TOOL WORKING LENGTH 18.3 in 466 mm TOOL DIAMETER 3.3 in. 84 mm SYSTEM RELIEF (cracking) 3000 psi 207 bar NOTE: Weights, dimensions and operating specifications listed on this sheet are subject to change without notice. Where specifications are critical to your application, consult your dealer or the factory. The MB15EXS adds the power of a 1200 ft lb class breaker to the high end of our 6-Series line. Designed for backhoes and excavators in the 14,000 - 26,000 lb range, the MB15EXS hits like a heavier breaker with one of the highest blow energy ratings in its class (see CIMA rating). The MB15EXS is a great option for rental or sales to contractors looking for increased breaker production. Weighing only 1100 pounds, the MB15EXS can be used on both tractor loader backhoes and mini excavators. The MB15EXS can also be adapted for underwater use with a field installable kit. MB15EXS_SS6_2006
