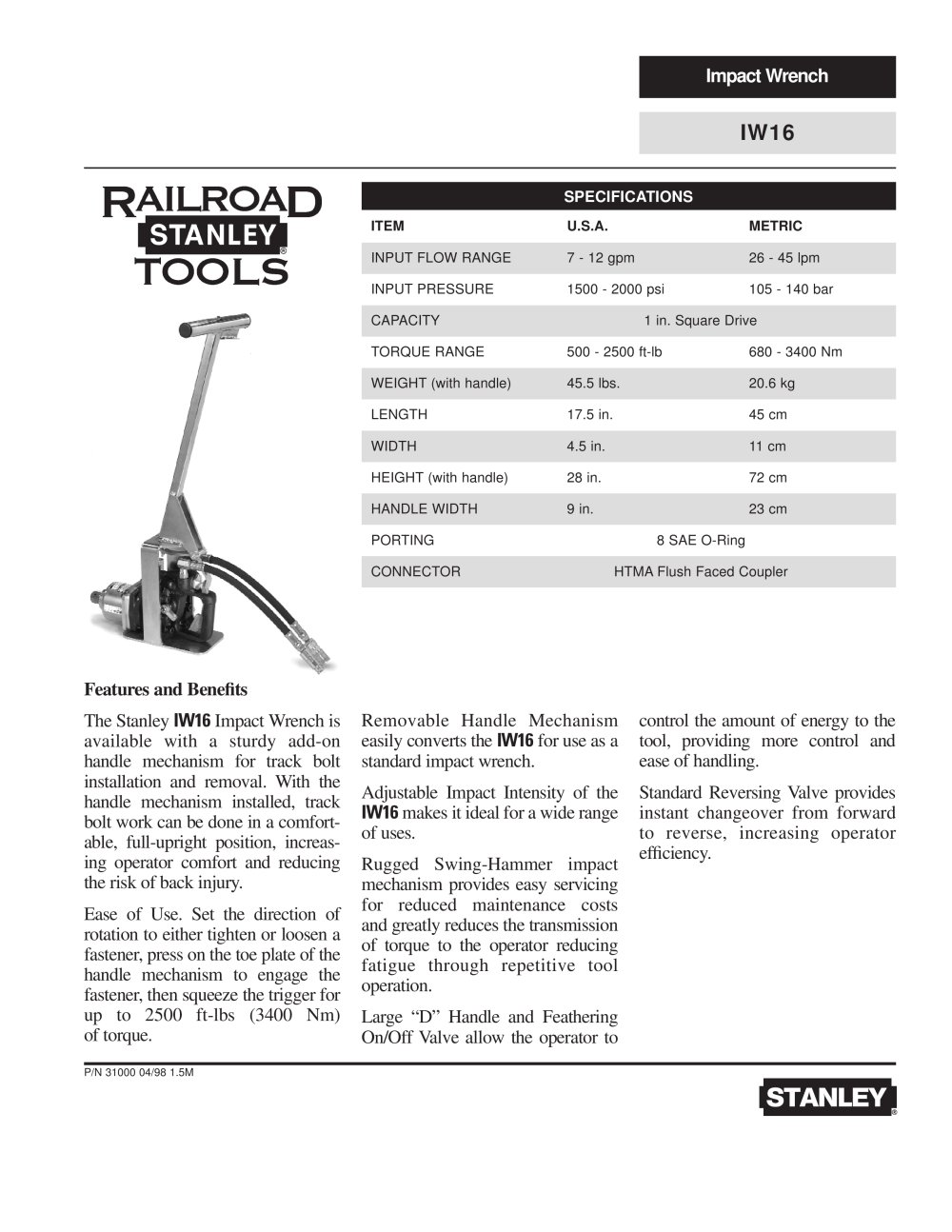

Impact Wrench IW16 SPECIFICATIONS Features and Benefits The Stanley IW16 Impact Wrench is available with a sturdy add-on handle mechanism for track bolt installation and removal. With the handle mechanism installed, track bolt work can be done in a comfortable, full-upright position, increasing operator comfort and reducing the risk of back injury. Ease of Use. Set the direction of rotation to either tighten or loosen a fastener, press on the toe plate of the handle mechanism to engage the fastener, then squeeze the trigger for up to 2500 ft-lbs (3400 Nm) of torque. Removable Handle Mechanism easily converts the IW16 for use as a standard impact wrench. Adjustable Impact Intensity of the IW16 makes it ideal for a wide range of uses. Rugged Swing-Hammer impact mechanism provides easy servicing for reduced maintenance costs and greatly reduces the transmission of torque to the operator reducing fatigue through repetitive tool operation. Large “D” Handle and Feathering On/Off Valve allow the operator to control the amount of energy to the tool, providing more control and ease of handling. Standard Reversing Valve provides instant changeover from forward to reverse, increasing operator efficiency. ITEM U.S.A. METRIC INPUT FLOW RANGE 7 - 12 gpm 26 - 45 lpm INPUT PRESSURE 1500 - 2000 psi 105 - 140 bar CAPACITY 1 in. Square Drive TORQUE RANGE 500 - 2500 ft-lb 680 - 3400 Nm WEIGHT (with handle) 45.5 lbs. 20.6 kg LENGTH 17.5 in. 45 cm WIDTH 4.5 in. 11 cm HEIGHT (with handle) 28 in. 72 cm HANDLE WIDTH 9 in. 23 cm PORTING 8 SAE O-Ring CONNECTOR HTMA Flush Faced Coupler P/N 31000 04/98 1.5M
