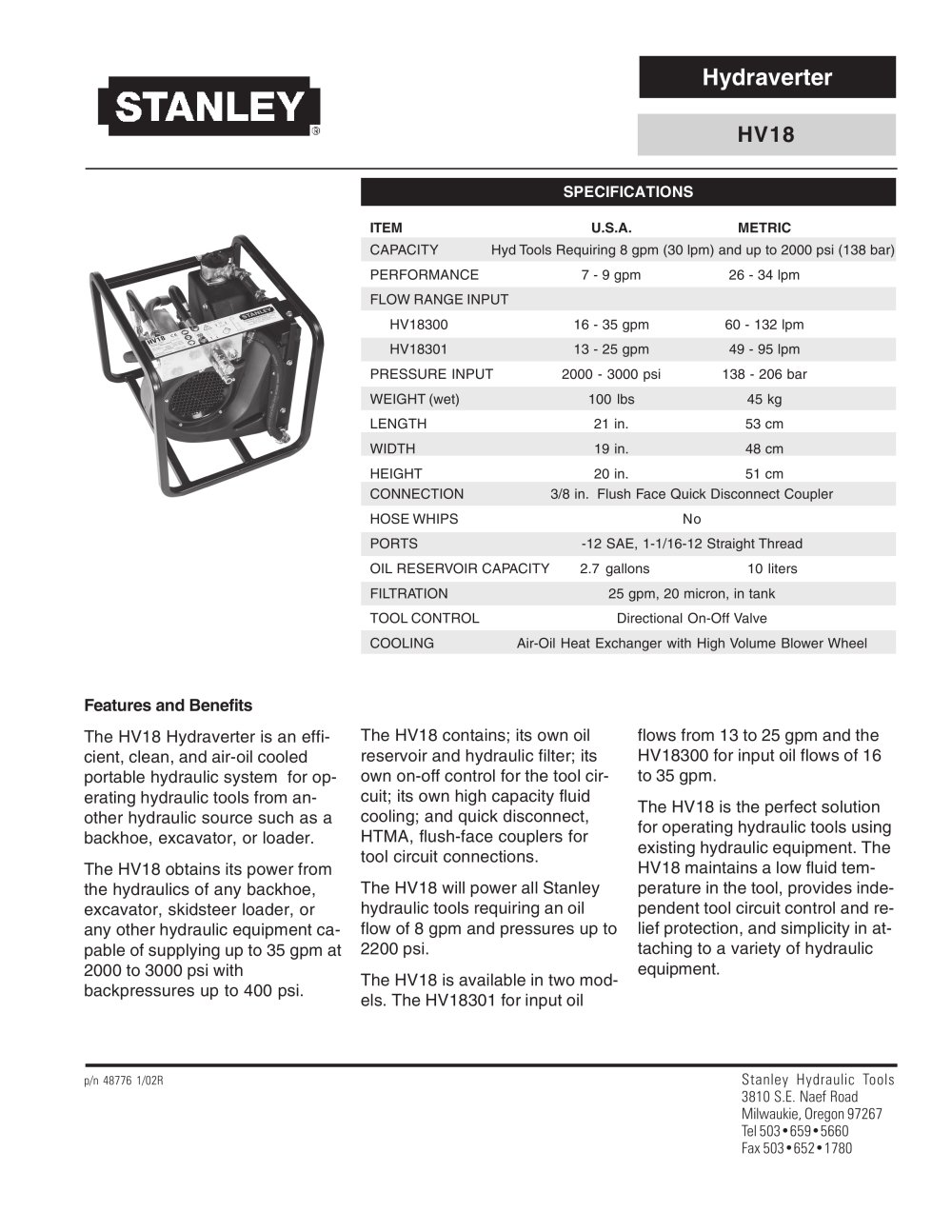

Hydraverter Features and Benefits The HV18 Hydraverter is an efficient, clean, and air-oil cooled portable hydraulic system for operating hydraulic tools from another hydraulic source such as a backhoe, excavator, or loader. The HV18 obtains its power from the hydraulics of any backhoe, excavator, skidsteer loader, or any other hydraulic equipment capable of supplying up to 35 gpm at 2000 to 3000 psi with backpressures up to 400 psi. SPECIFICATIONS

        ! "# $#!$# %&# $#$  The HV18 contains; its own oil reservoir and hydraulic filter; its own on-off control for the tool circuit; its own high capacity fluid cooling; and quick disconnect, HTMA, flush-face couplers for tool circuit connections. The HV18 will power all Stanley hydraulic tools requiring an oil flow of 8 gpm and pressures up to 2200 psi. The HV18 is available in two models. The HV18301 for input oil ITEM U.S.A. METRIC CAPACITY Hyd Tools Requiring 8 gpm (30 lpm) and up to 2000 psi (138 bar) PERFORMANCE 7 - 9 gpm 26 - 34 lpm FLOW RANGE INPUT HV18300 16 - 35 gpm 60 - 132 lpm HV18301 13 - 25 gpm 49 - 95 lpm PRESSURE INPUT 2000 - 3000 psi 138 - 206 bar WEIGHT (wet) 100 lbs 45 kg LENGTH 21 in. 53 cm WIDTH 19 in. 48 cm HEIGHT 20 in. 51 cm CONNECTION 3/8 in. Flush Face Quick Disconnect Coupler HOSE WHIPS No PORTS -12 SAE, 1-1/16-12 Straight Thread OIL RESERVOIR CAPACITY 2.7 gallons 10 liters FILTRATION 25 gpm, 20 micron, in tank TOOL CONTROL Directional On-Off Valve COOLING Air-Oil Heat Exchanger with High Volume Blower Wheel HV18 flows from 13 to 25 gpm and the HV18300 for input oil flows of 16 to 35 gpm. The HV18 is the perfect solution for operating hydraulic tools using existing hydraulic equipment. The HV18 maintains a low fluid temperature in the tool, provides independent tool circuit control and relief protection, and simplicity in attaching to a variety of hydraulic equipment.
