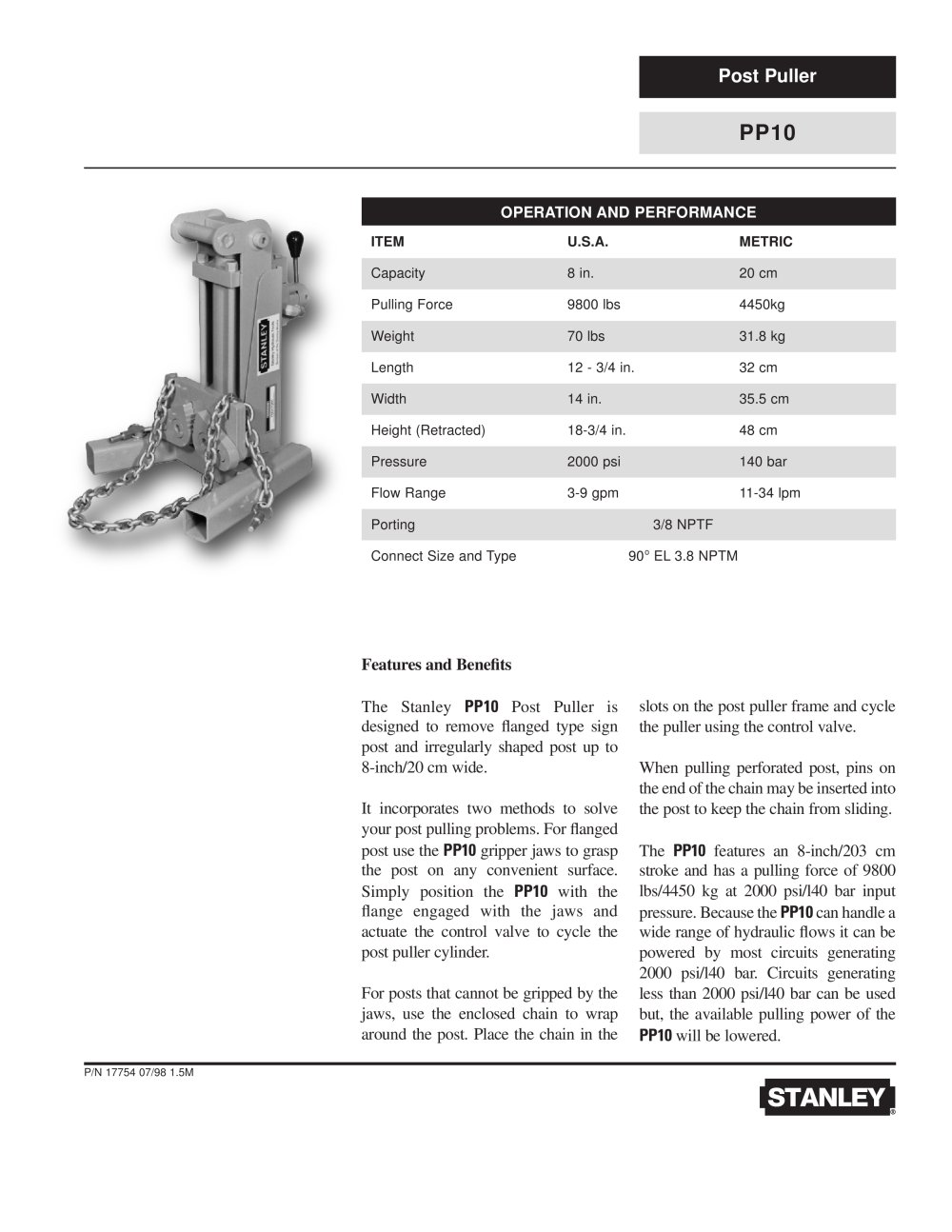

Post Puller OPERATION AND PERFORMANCE Features and Benefits The Stanley PP10 Post Puller is designed to remove flanged type sign post and irregularly shaped post up to 8-inch/20 cm wide. It incorporates two methods to solve your post pulling problems. For flanged post use the PP10 gripper jaws to grasp the post on any convenient surface. Simply position the PP10 with the flange engaged with the jaws and actuate the control valve to cycle the post puller cylinder. For posts that cannot be gripped by the jaws, use the enclosed chain to wrap around the post. Place the chain in the slots on the post puller frame and cycle the puller using the control valve. When pulling perforated post, pins on the end of the chain may be inserted into the post to keep the chain from sliding. The PP10 features an 8-inch/203 cm stroke and has a pulling force of 9800 lbs/4450 kg at 2000 psi/l40 bar input pressure. Because the PP10 can handle a wide range of hydraulic flows it can be powered by most circuits generating 2000 psi/l40 bar. Circuits generating less than 2000 psi/l40 bar can be used but, the available pulling power of the PP10 will be lowered. ITEM U.S.A. METRIC Capacity 8 in. 20 cm Pulling Force 9800 lbs 4450kg Weight 70 lbs 31.8 kg Length 12 - 3/4 in. 32 cm Width 14 in. 35.5 cm Height (Retracted) 18-3/4 in. 48 cm Pressure 2000 psi 140 bar Flow Range 3-9 gpm 11-34 lpm Porting 3/8 NPTF Connect Size and Type 90o EL 3.8 NPTM P/N 17754 07/98 1.5M PP10
