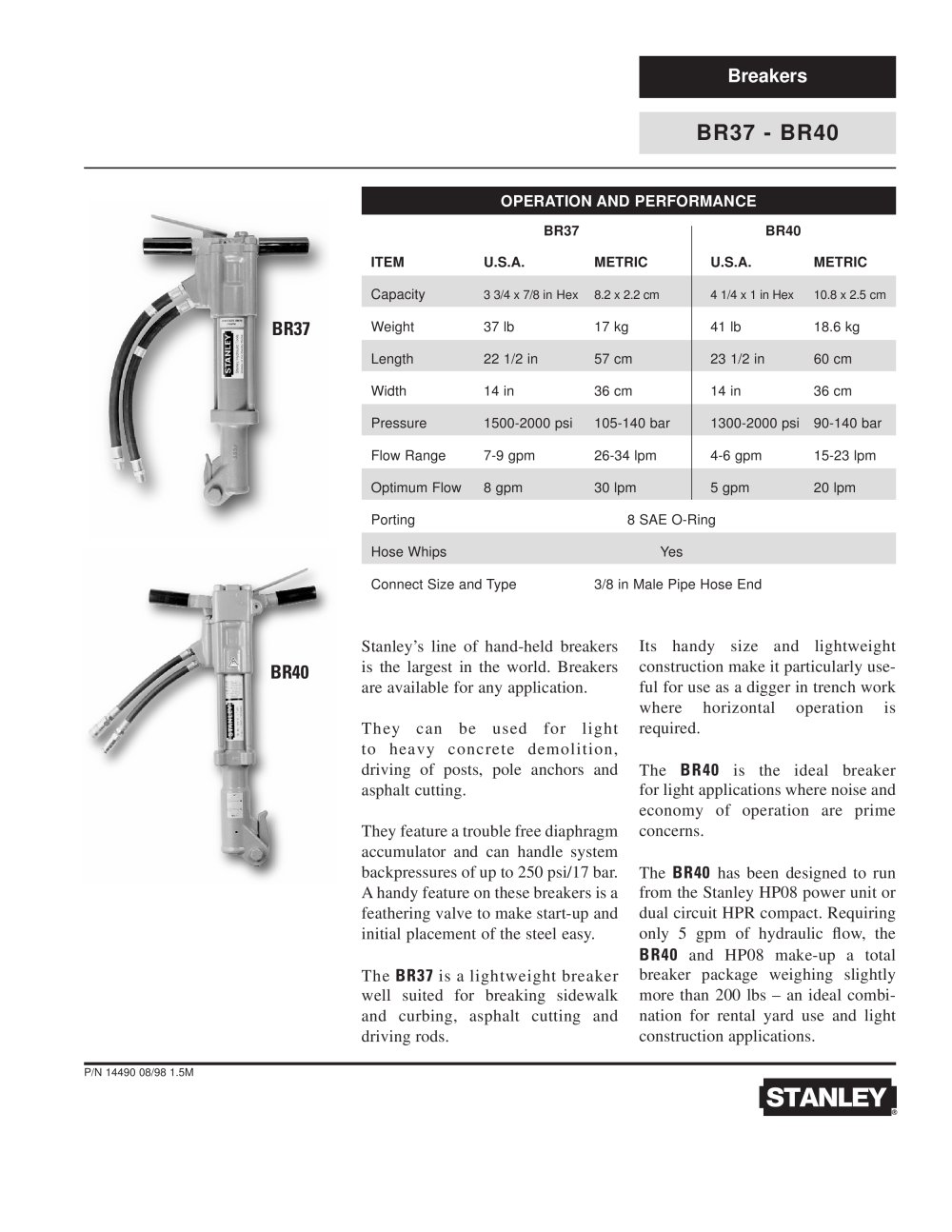

Breakers

BR37 - BR40

OPERATION AND PERFORMANCE


	BR37		BR40
ITEM	U.S.A.	METRIC	U.S.A.	METRIC
Capacity	3 3/4 x 7/8 in Hex	8.2 x 2.2 cm	4 1/4 x 1 in Hex	10.8 x 2.5 cm
Weight	37 lb	17 kg	41 lb	18.6 kg
Length	22 1/2 in	57 cm	23 1/2 in	60 cm
Width	14 in	36 cm	14 in	36 cm
Pressure	1500-2000 psi	105-140 bar	1300-2000 psi	90-140 bar
Flow Range	7-9 gpm	26-34 lpm	4-6 gpm	15-23 lpm
Optimum Flow	8 gpm	30 lpm	5 gpm	20 lpm

Porting

Hose Whips

Connect Size and Type

8 SAE O-Ring

Yes

3/8 in Male Pipe Hose End

Its handy size and lightweight construction make it particularly useful for use as a digger in trench work where horizontal operation is required.

The BR40 is the ideal breaker for light applications where noise and economy of operation are prime concerns.

The BR40 has been designed to run from the Stanley HP08 power unit or dual circuit HPR compact. Requiring only 5 gpm of hydraulic flow, the BR40 and HP08 make-up a total breaker package weighing slightly more than 200 lbs - an ideal combination for rental yard use and light construction applications.

Stanley's line of hand-held breakers is the largest in the world. Breakers are available for any application.

They can be used for light to heavy concrete demolition, driving of posts, pole anchors and asphalt cutting.

They feature a trouble free diaphragm accumulator and can handle system backpressures of up to 250 psi/17 bar. A handy feature on these breakers is a feathering valve to make start-up and initial placement of the steel easy.

The BR37 is a lightweight breaker well suited for breaking sidewalk and curbing, asphalt cutting and driving rods.

P/N 14490 08/98 1.5M

STANLEY
