Horizontal Grinder - Stanley Hydraulic Tools - #1

Text version of the page

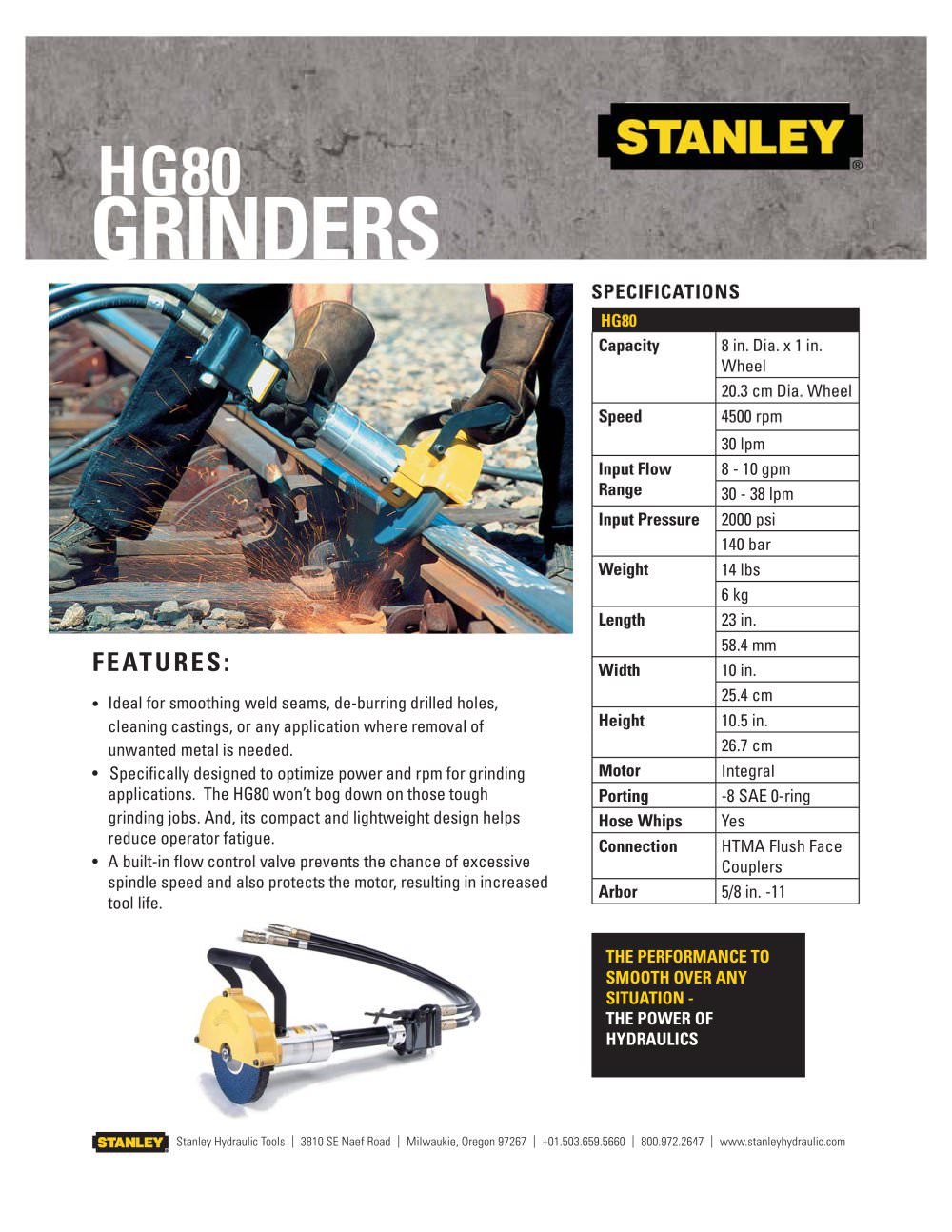

Horizontal Grinder Features and Benefits SPECIFICATIONS







!"
 #
 $$ %&
 $$ ITEM U.S.A. METRIC CAPACITY 8 in. Dia. x 1 in. Wheel 20.3 cm Dia. Wheel PERFORMANCE 4500 rpm FLOW RANGE 8 - 10 gpm 30 - 38 lpm PRESSURE 2000 psi 140 bar PORTS -8 SAE O-Ring WEIGHT 14 lbs 6 kg LENGTH 23 in. 58.4 mm WIDTH 10 in. 25.4 cm HEIGHT 10.5 in. 26.7 cm CONNECTION HTMA Flush Face Couplers HOSE WHIPS Yes MOTOR Integral ARBOR 5/8 in. -11 HG80 The Stanley HG80 Horizontal Grinder is ideal for smoothing weld seams, de-burring drilled holes, cleaning castings, or any application where removal of unwanted metal is needed. The HG80’s hydraulic motor is specifically designed to optimize power and rpm for grinding applications. The HG80 won’t bog down on those tough grinding jobs. And, its compact and lightweight design helps reduce operator fatigue. A built-in flow control valve prevents the chance of excessive spindle speed and also protects the motor, resulting in increased tool life. An interlocking trigger assembly helps prevent accidental engagement of the tool, providing increased operator safety.
