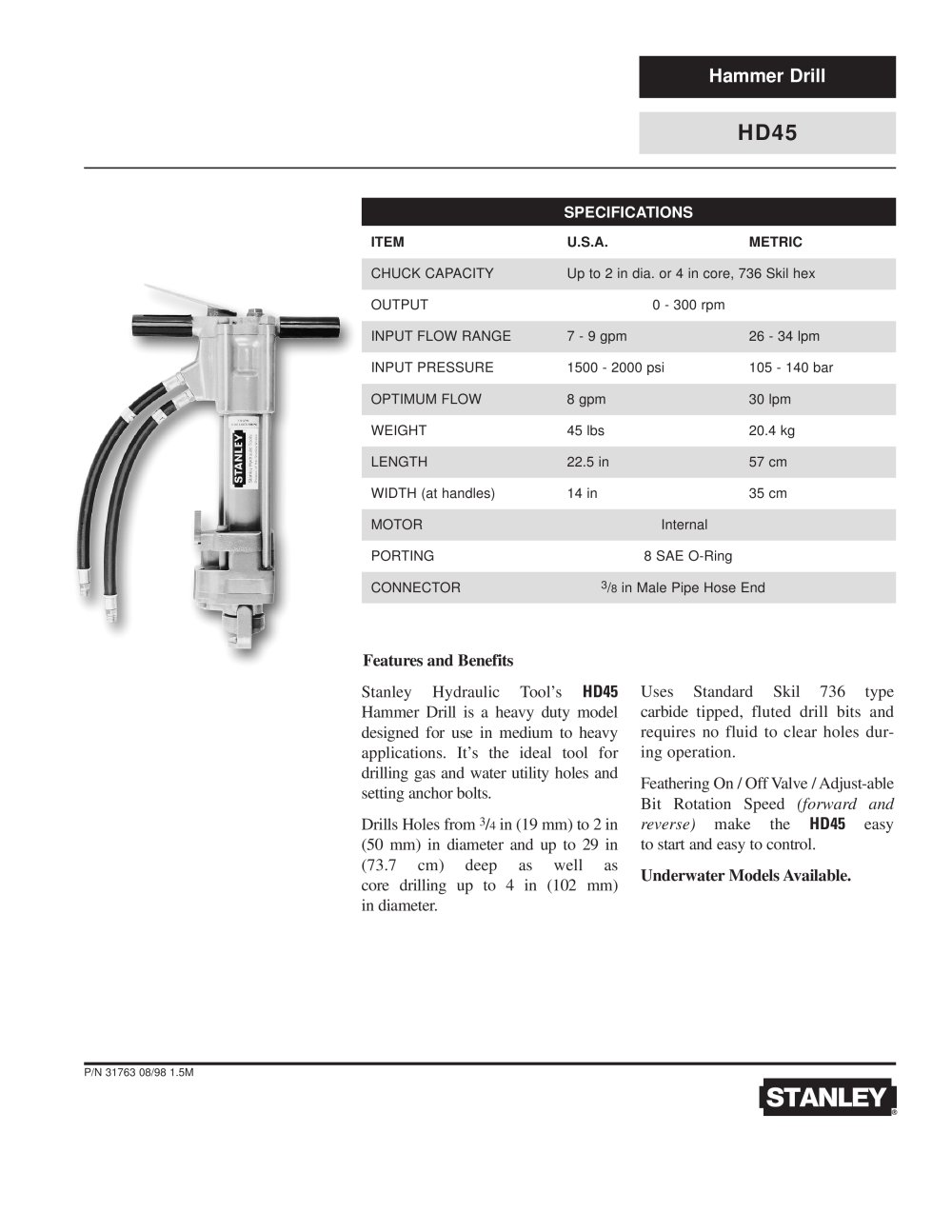

Hammer Drill HD45 SPECIFICATIONS Features and Benefits Stanley Hydraulic Tool’s HD45 Hammer Drill is a heavy duty model designed for use in medium to heavy applications. It’s the ideal tool for drilling gas and water utility holes and setting anchor bolts. Drills Holes from 3/4 in (19 mm) to 2 in (50 mm) in diameter and up to 29 in (73.7 cm) deep as well as core drilling up to 4 in (102 mm) in diameter. ITEM U.S.A. METRIC CHUCK CAPACITY Up to 2 in dia. or 4 in core, 736 Skil hex OUTPUT 0 - 300 rpm INPUT FLOW RANGE 7 - 9 gpm 26 - 34 lpm INPUT PRESSURE 1500 - 2000 psi 105 - 140 bar OPTIMUM FLOW 8 gpm 30 lpm WEIGHT 45 lbs 20.4 kg LENGTH 22.5 in 57 cm WIDTH (at handles) 14 in 35 cm MOTOR Internal PORTING 8 SAE O-Ring CONNECTOR 3/8 in Male Pipe Hose End Uses Standard Skil 736 type carbide tipped, fluted drill bits and requires no fluid to clear holes during operation. Feathering On / Off Valve / Adjust-able Bit Rotation Speed (forward and reverse) make the HD45 easy to start and easy to control. Underwater Models Available. P/N 31763 08/98 1.5M
