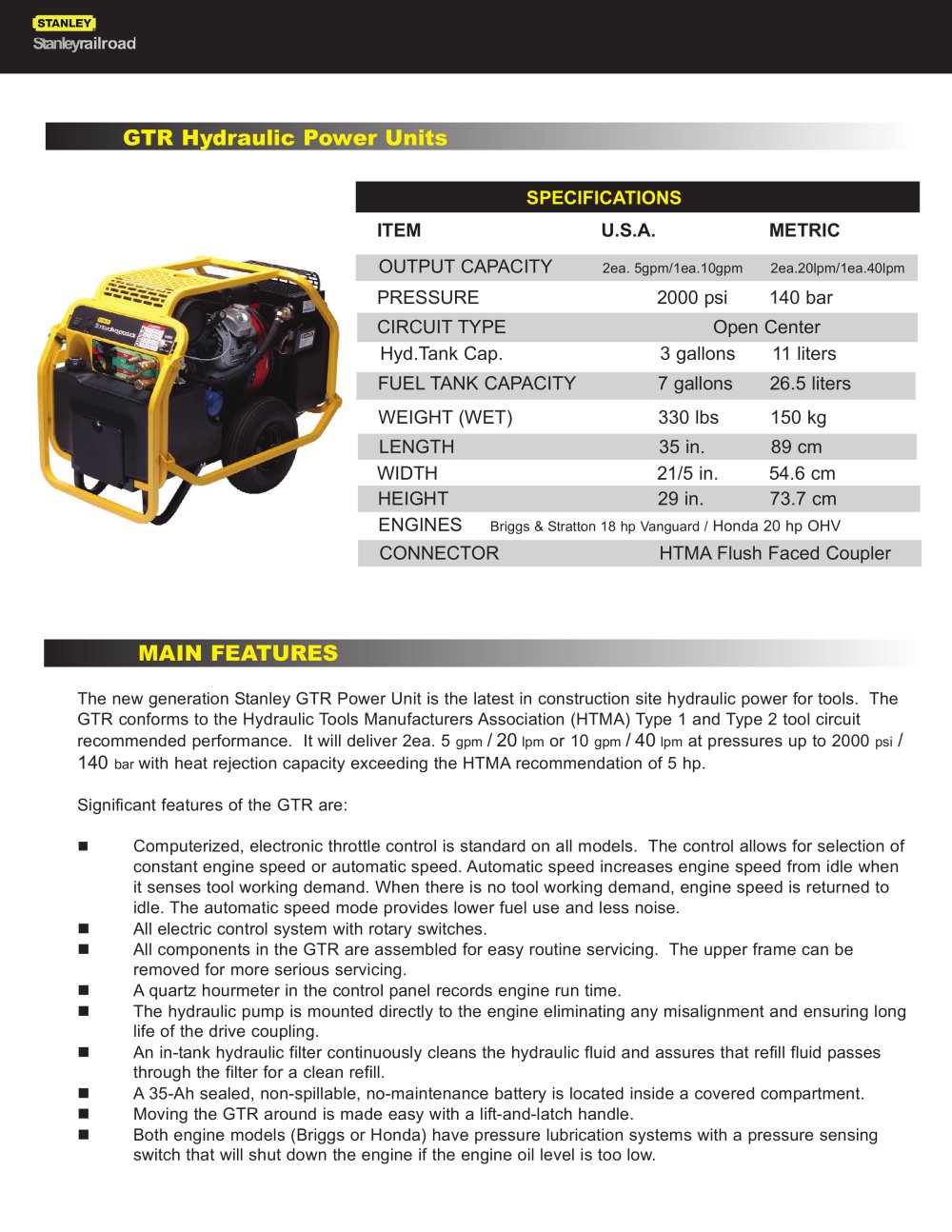

MAIN FEATURES GTR Hydraulic Power Units OUTPUT CAPACITY 2ea. 5gpm/1ea.10gpm 2ea.20lpm/1ea.40lpm PRESSURE 2000 psi 140 bar SPECIFICATIONS ITEM U.S.A. METRIC CIRCUIT TYPE Open Center Hyd.Tank Cap. 3 gallons 11 liters FUEL TANK CAPACITY 7 gallons 26.5 liters WEIGHT (WET) 330 lbs 150 kg WIDTH 21/5 in. 54.6 cm LENGTH 35 in. 89 cm HEIGHT 29 in. 73.7 cm ENGINES Briggs & Stratton 18 hp Vanguard / Honda 20 hp OHV CONNECTOR HTMA Flush Faced Coupler The new generation Stanley GTR Power Unit is the latest in construction site hydraulic power for tools. The GTR conforms to the Hydraulic Tools Manufacturers Association (HTMA) Type 1 and Type 2 tool circuit recommended performance. It will deliver 2ea. 5 gpm / 20 lpm or 10 gpm / 40 lpm at pressures up to 2000 psi / 140 bar with heat rejection capacity exceeding the HTMA recommendation of 5 hp. Significant features of the GTR are: .. Computerized, electronic throttle control is standard on all models. The control allows for selection of constant engine speed or automatic speed. Automatic speed increases engine speed from idle when it senses tool working demand. When there is no tool working demand, engine speed is returned to idle. The automatic speed mode provides lower fuel use and less noise. .. All electric control system with rotary switches. .. All components in the GTR are assembled for easy routine servicing. The upper frame can be removed for more serious servicing. .. A quartz hourmeter in the control panel records engine run time. .. The hydraulic pump is mounted directly to the engine eliminating any misalignment and ensuring long life of the drive coupling. .. An in-tank hydraulic filter continuously cleans the hydraulic fluid and assures that refill fluid passes through the filter for a clean refill. .. A 35-Ah sealed, non-spillable, no-maintenance battery is located inside a covered compartment. .. Moving the GTR around is made easy with a lift-and-latch handle. .. Both engine models (Briggs or Honda) have pressure lubrication systems with a pressure sensing switch that will shut down the engine if the engine oil level is too low. Stanleyrailroad
