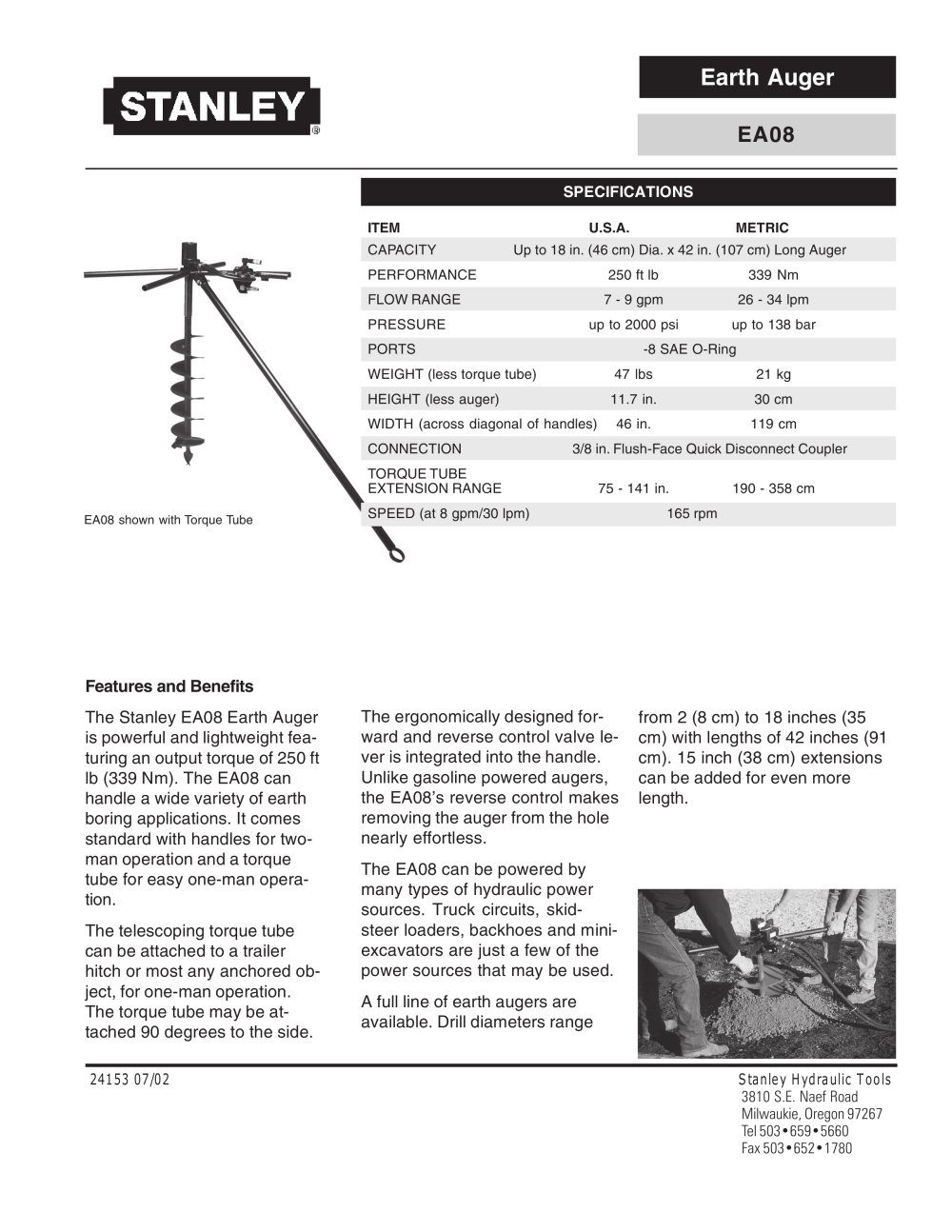

Earth Auger SPECIFICATIONS 24153 07/02 Stanley Hydraulic Tools




!"! #
 $" $"" %&
 $"$! ITEM U.S.A. METRIC CAPACITY Up to 18 in. (46 cm) Dia. x 42 in. (107 cm) Long Auger PERFORMANCE 250 ft lb 339 Nm FLOW RANGE 7 - 9 gpm 26 - 34 lpm PRESSURE up to 2000 psi up to 138 bar PORTS -8 SAE O-Ring WEIGHT (less torque tube) 47 lbs 21 kg HEIGHT (less auger) 11.7 in. 30 cm WIDTH (across diagonal of handles) 46 in. 119 cm CONNECTION 3/8 in. Flush-Face Quick Disconnect Coupler TORQUE TUBE EXTENSION RANGE 75 - 141 in. 190 - 358 cm SPEED (at 8 gpm/30 lpm) 165 rpm EA08 Features and Benefits The Stanley EA08 Earth Auger is powerful and lightweight featuring an output torque of 250 ft lb (339 Nm). The EA08 can handle a wide variety of earth boring applications. It comes standard with handles for twoman operation and a torque tube for easy one-man operation. The telescoping torque tube can be attached to a trailer hitch or most any anchored object, for one-man operation. The torque tube may be attached 90 degrees to the side. The ergonomically designed forward and reverse control valve lever is integrated into the handle. Unlike gasoline powered augers, the EA08’s reverse control makes removing the auger from the hole nearly effortless. The EA08 can be powered by many types of hydraulic power sources. Truck circuits, skidsteer loaders, backhoes and miniexcavators are just a few of the power sources that may be used. A full line of earth augers are available. Drill diameters range from 2 (8 cm) to 18 inches (35 cm) with lengths of 42 inches (91 cm). 15 inch (38 cm) extensions can be added for even more length. EA08 shown with Torque Tube
