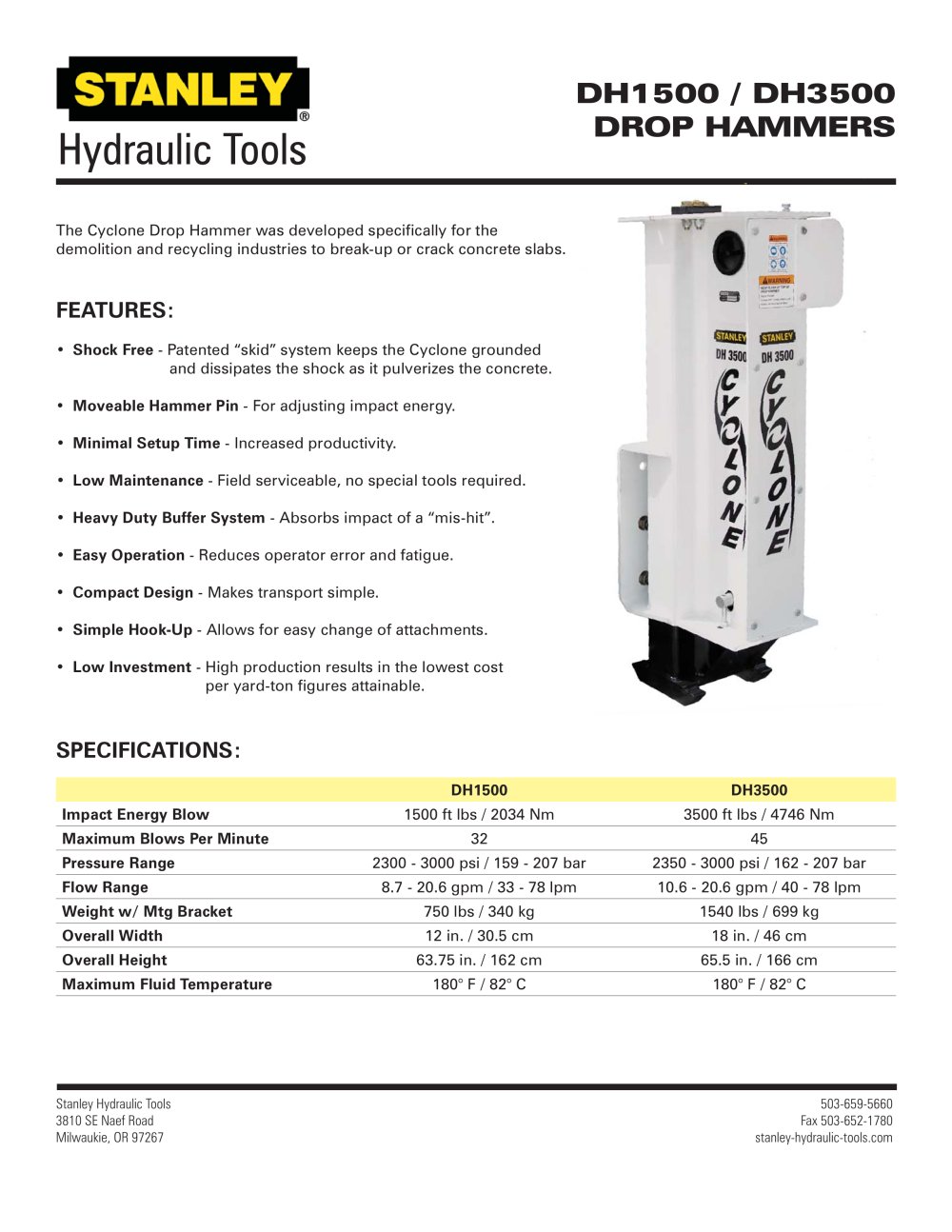

Hydraulic Tools DH1500 DH3500 Impact Energy Blow 1500 ft lbs / 2034 Nm 3500 ft lbs / 4746 Nm Maximum Blows Per Minute 32 45 Pressure Range 2300 - 3000 psi / 159 - 207 bar 2350 - 3000 psi / 162 - 207 bar Flow Range 8.7 - 20.6 gpm / 33 - 78 lpm 10.6 - 20.6 gpm / 40 - 78 lpm Weight w/ Mtg Bracket 750 lbs / 340 kg 1540 lbs / 699 kg Overall Width 12 in. / 30.5 cm 18 in. / 46 cm Overall Height 63.75 in. / 162 cm 65.5 in. / 166 cm Maximum Fluid Temperature 180° F / 82° C 180° F / 82° C DH1500 / DH3500 DROP HAMMERS The Cyclone Drop Hammer was developed specifically for the demolition and recycling industries to break-up or crack concrete slabs. FEATURES: • Shock Free - Patented “skid” system keeps the Cyclone grounded and dissipates the shock as it pulverizes the concrete. • Moveable Hammer Pin - For adjusting impact energy. • Minimal Setup Time - Increased productivity. • Low Maintenance - Field serviceable, no special tools required. • Heavy Duty Buffer System - Absorbs impact of a “mis-hit”. • Easy Operation - Reduces operator error and fatigue. • Compact Design - Makes transport simple. • Simple Hook-Up - Allows for easy change of attachments. • Low Investment - High production results in the lowest cost per yard-ton figures attainable. SPECIFICATIONS: Stanley Hydraulic Tools 503-659-5660 3810 SE Naef Road Fax 503-652-1780 Milwaukie, OR 97267 stanley-hydraulic-tools.com
