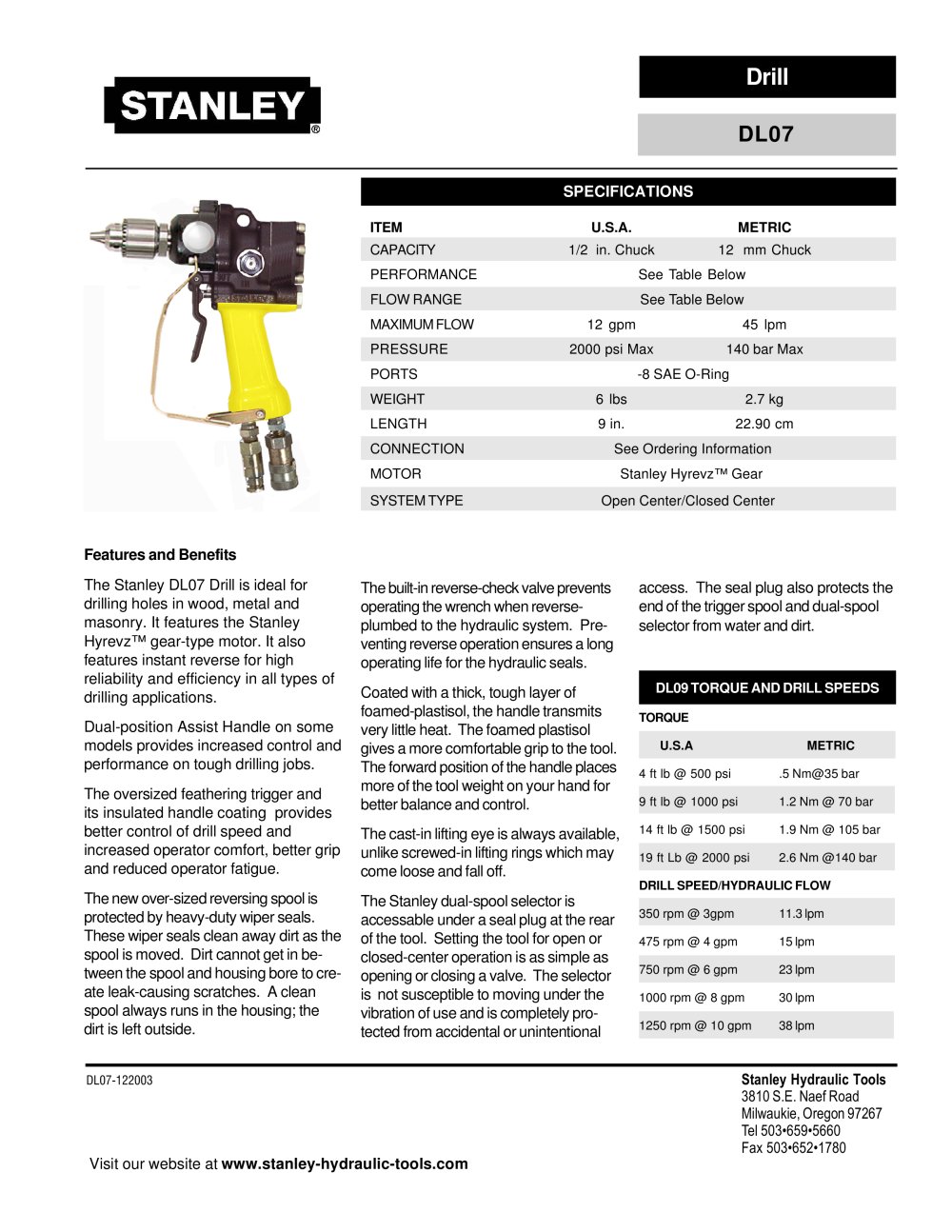

Drill Features and Benefits The Stanley DL07 Drill is ideal for drilling holes in wood, metal and masonry. It features the Stanley Hyrevz™ gear-type motor. It also features instant reverse for high reliability and efficiency in all types of drilling applications. Dual-position Assist Handle on some models provides increased control and performance on tough drilling jobs. The oversized feathering trigger and its insulated handle coating provides better control of drill speed and increased operator comfort, better grip and reduced operator fatigue. The new over-sized reversing spool is protected by heavy-duty wiper seals. These wiper seals clean away dirt as the spool is moved. Dirt cannot get in between the spool and housing bore to create leak-causing scratches. A clean spool always runs in the housing; the dirt is left outside. SPECIFICATIONS DL07-122003 Stanley Hydraulic Tools 3810 S.E. Naef Road Milwaukie, Oregon 97267 Tel 503•659•5660 Fax 503•652•1780 ITEM U.S.A. METRIC CAPACITY 1/2 in. Chuck 12 mm Chuck PERFORMANCE See Table Below FLOW RANGE See Table Below MAXIMUM FLOW 12 gpm 45 lpm PRESSURE 2000 psi Max 140 bar Max PORTS -8 SAE O-Ring WEIGHT 6 lbs 2.7 kg LENGTH 9 in. 22.90 cm CONNECTION See Ordering Information MOTOR Stanley Hyrevz™ Gear SYSTEM TYPE Open Center/Closed Center DL07 Visit our website at www.stanley-hydraulic-tools.com The built-in reverse-check valve prevents operating the wrench when reverseplumbed to the hydraulic system. Preventing reverse operation ensures a long operating life for the hydraulic seals. Coated with a thick, tough layer of foamed-plastisol, the handle transmits very little heat. The foamed plastisol gives a more comfortable grip to the tool. The forward position of the handle places more of the tool weight on your hand for better balance and control. The cast-in lifting eye is always available, unlike screwed-in lifting rings which may come loose and fall off. The Stanley dual-spool selector is accessable under a seal plug at the rear of the tool. Setting the tool for open or closed-center operation is as simple as opening or closing a valve. The selector is not susceptible to moving under the vibration of use and is completely protected from accidental or unintentional TORQUE U.S.A METRIC 4 ft lb @ 500 psi .5 Nm@35 bar 9 ft lb @ 1000 psi 1.2 Nm @ 70 bar 14 ft lb @ 1500 psi 1.9 Nm @ 105 bar 19 ft Lb @ 2000 psi 2.6 Nm @140 bar DRILL SPEED/HYDRAULIC FLOW 350 rpm @ 3gpm 11.3 lpm 475 rpm @ 4 gpm 15 lpm 750 rpm @ 6 gpm 23 lpm 1000 rpm @ 8 gpm 30 lpm 1250 rpm @ 10 gpm 38 lpm DL09 TORQUE AND DRILL SPEEDS access. The seal plug also protects the end of the trigger spool and dual-spool selector from water and dirt.
