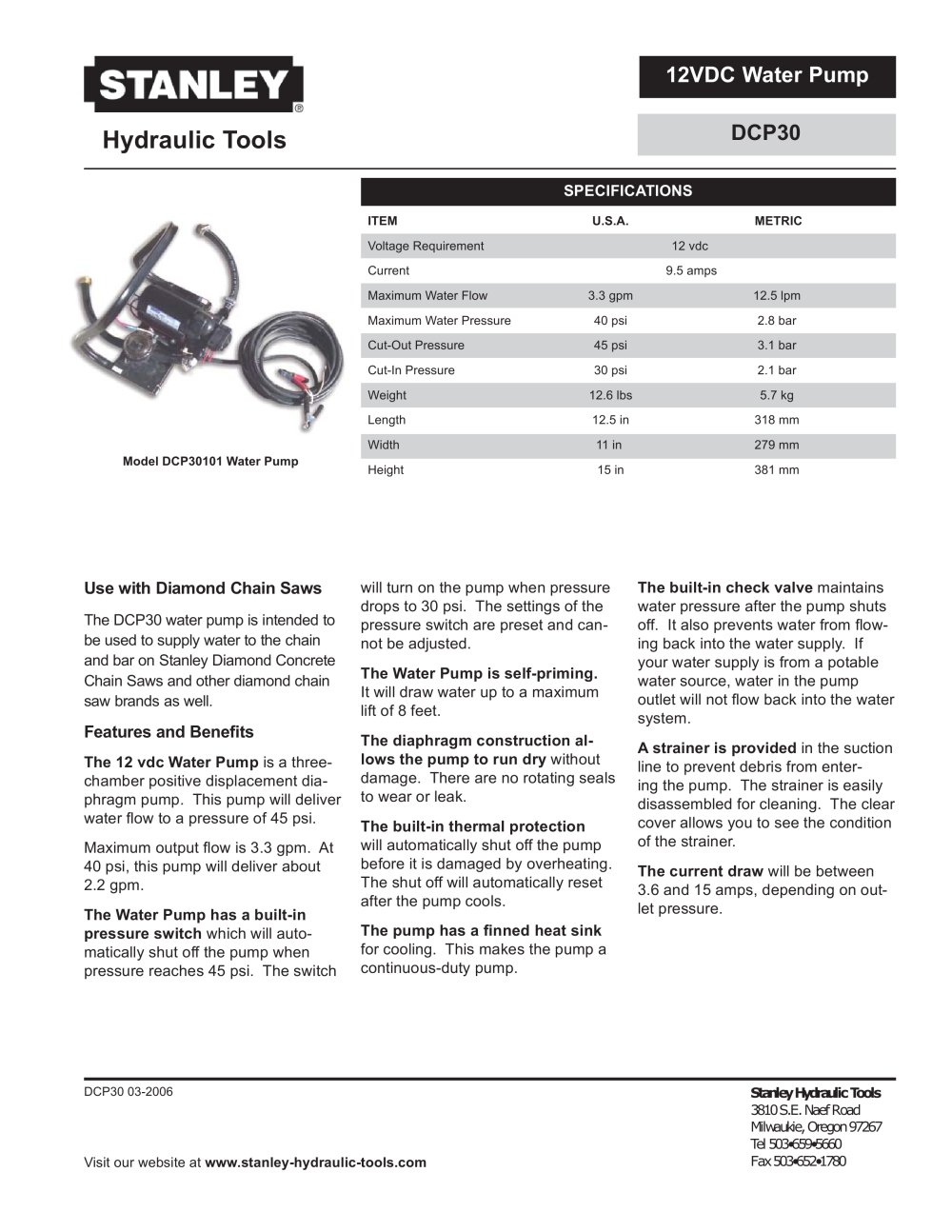

DCP30 03-2006 SPECIFICATIONS Stanley Hydraulic Tools 3810 S.E. Naef Road Milwaukie, Oregon 97267 Tel 503•659•5660 Visit our website at www.stanley-hydraulic-tools.com Fax 503•652•1780 Hydraulic Tools 12VDC Water Pump DCP30 ITEM U.S.A. METRIC Voltage Requirement 12 vdc Current 9.5 amps Maximum Water Flow 3.3 gpm 12.5 lpm Maximum Water Pressure 40 psi 2.8 bar Cut-Out Pressure 45 psi 3.1 bar Cut-In Pressure 30 psi 2.1 bar Weight 12.6 lbs 5.7 kg Length 12.5 in 318 mm Width 11 in 279 mm Height 15 in 381 mm Use with Diamond Chain Saws The DCP30 water pump is intended to be used to supply water to the chain and bar on Stanley Diamond Concrete Chain Saws and other diamond chain saw brands as well. Features and Benefi ts The 12 vdc Water Pump is a threechamber positive displacement diaphragm pump. This pump will deliver water fl ow to a pressure of 45 psi. Maximum output fl ow is 3.3 gpm. At 40 psi, this pump will deliver about 2.2 gpm. The Water Pump has a built-in pressure switch which will automatically shut off the pump when pressure reaches 45 psi. The switch will turn on the pump when pressure drops to 30 psi. The settings of the pressure switch are preset and cannot be adjusted. The Water Pump is self-priming. It will draw water up to a maximum lift of 8 feet. The diaphragm construction allows the pump to run dry without damage. There are no rotating seals to wear or leak. The built-in thermal protection will automatically shut off the pump before it is damaged by overheating. The shut off will automatically reset after the pump cools. The pump has a fi nned heat sink for cooling. This makes the pump a continuous-duty pump. The built-in check valve maintains water pressure after the pump shuts off. It also prevents water from fl owing back into the water supply. If your water supply is from a potable water source, water in the pump outlet will not fl ow back into the water system. A strainer is provided in the suction line to prevent debris from entering the pump. The strainer is easily disassembled for cleaning. The clear cover allows you to see the condition of the strainer. The current draw will be between 3.6 and 15 amps, depending on outlet pressure. Model DCP30101 Water Pump
