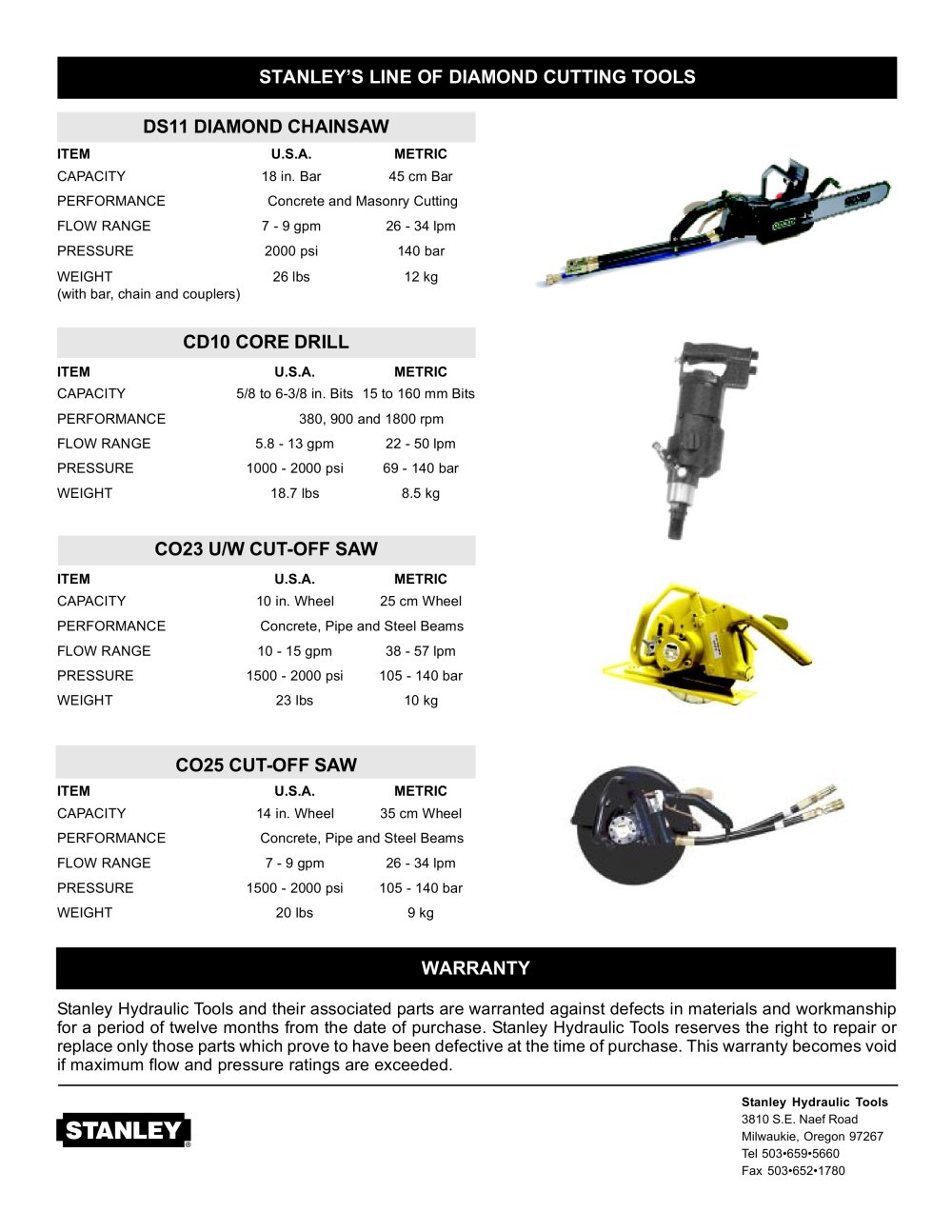

STANLEY’S LINE OF DIAMOND CUTTING TOOLS DS11 DIAMOND CHAINSAW

ITEMU.S.A.METRIC CAPACITY18 in. Bar45 cm BarPERFORMANCE Concrete and Masonry CuttingFLOW RANGE7 - 9 gpm26 - 34 lpmPRESSURE2000 psi140 barWEIGHT26 lbs12 kg(with bar, chain and couplers)

CD10 CORE DRILL

ITEMU.S.A.METRIC CAPACITY5/8 to 6-3/8 in. Bits15 to 160 mm BitsPERFORMANCE 380, 900 and 1800 rpmFLOW RANGE5.8 - 13 gpm22 - 50 lpmPRESSURE1000 - 2000 psi69 - 140 barWEIGHT18.7 lbs8.5 kg

CO23 U/W CUT-OFF SAW

ITEMU.S.A.METRIC CAPACITY10 in. Wheel25 cm WheelPERFORMANCE Concrete, Pipe and Steel BeamsFLOW RANGE10 - 15 gpm38 - 57 lpmPRESSURE1500 - 2000 psi105 - 140 bar WEIGHT23 lbs10 kg

CO25 CUT-OFF SAW

ITEMU.S.A.METRIC CAPACITY14 in. Wheel35 cm WheelPERFORMANCE Concrete, Pipe and Steel BeamsFLOW RANGE7 - 9 gpm26 - 34 lpmPRESSURE1500 - 2000 psi105 - 140 bar WEIGHT20 lbs9 kg

WARRANTY

Stanley Hydraulic Tools and their associated parts are warranted against defects in materials and workmanshipfor a period of twelve months from the date of purchase. Stanley Hydraulic Tools reserves the right to repair or replace only those parts which prove to have been defective at the time of purchase. This warranty becomes void if maximum flow and pressure ratings are exceeded.

Stanley Hydraulic Tools 3810 S.E. Naef RoadMilwaukie, Oregon 97267Tel 503?659?5660 Fax 503?652?1780
