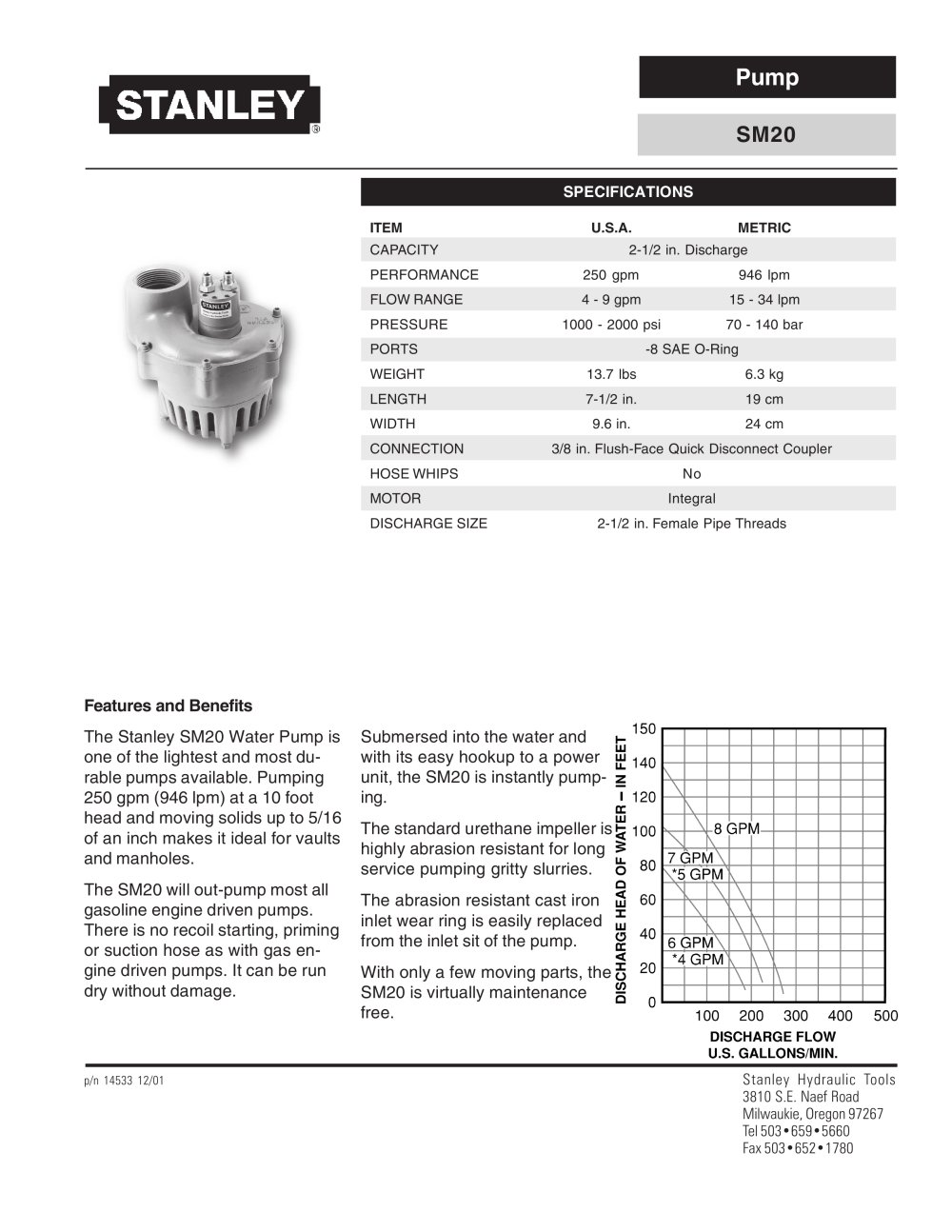

Pump Features and Benefits The Stanley SM20 Water Pump is one of the lightest and most durable pumps available. Pumping 250 gpm (946 lpm) at a 10 foot head and moving solids up to 5/16 of an inch makes it ideal for vaults and manholes. The SM20 will out-pump most all gasoline engine driven pumps. There is no recoil starting, priming or suction hose as with gas engine driven pumps. It can be run dry without damage. SPECIFICATIONS

          ! "! # $" $"" %& $" $! ITEM U.S.A. METRIC CAPACITY 2-1/2 in. Discharge PERFORMANCE 250 gpm 946 lpm FLOW RANGE 4 - 9 gpm 15 - 34 lpm PRESSURE 1000 - 2000 psi 70 - 140 bar PORTS -8 SAE O-Ring WEIGHT 13.7 lbs 6.3 kg LENGTH 7-1/2 in. 19 cm WIDTH 9.6 in. 24 cm CONNECTION 3/8 in. Flush-Face Quick Disconnect Coupler HOSE WHIPS No MOTOR Integral DISCHARGE SIZE 2-1/2 in. Female Pipe Threads SM20 Submersed into the water and with its easy hookup to a power unit, the SM20 is instantly pumping. The standard urethane impeller is highly abrasion resistant for long service pumping gritty slurries. The abrasion resistant cast iron inlet wear ring is easily replaced from the inlet sit of the pump. With only a few moving parts, the SM20 is virtually maintenance free.
