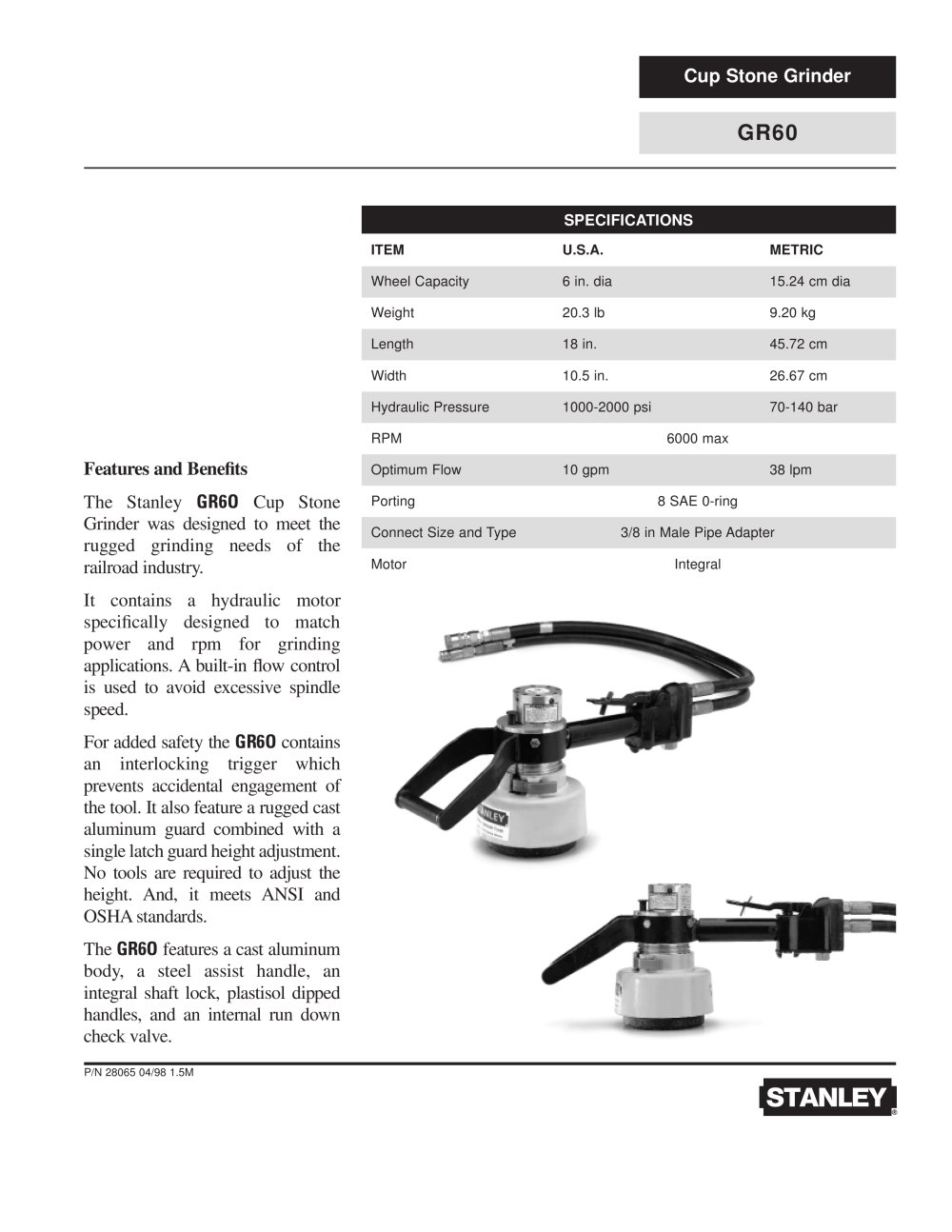

Features and Benefits The Stanley GR6O Cup Stone Grinder was designed to meet the rugged grinding needs of the railroad industry. It contains a hydraulic motor specifically designed to match power and rpm for grinding applications. A built-in flow control is used to avoid excessive spindle speed. For added safety the GR6O contains an interlocking trigger which prevents accidental engagement of the tool. It also feature a rugged cast aluminum guard combined with a single latch guard height adjustment. No tools are required to adjust the height. And, it meets ANSI and OSHA standards. The GR6O features a cast aluminum body, a steel assist handle, an integral shaft lock, plastisol dipped handles, and an internal run down check valve. Cup Stone Grinder GR60 SPECIFICATIONS ITEM U.S.A. METRIC Wheel Capacity 6 in. dia 15.24 cm dia Weight 20.3 lb 9.20 kg Length 18 in. 45.72 cm Width 10.5 in. 26.67 cm Hydraulic Pressure 1000-2000 psi 70-140 bar RPM 6000 max Optimum Flow 10 gpm 38 lpm Porting 8 SAE 0-ring Connect Size and Type 3/8 in Male Pipe Adapter Motor Integral P/N 28065 04/98 1.5M
