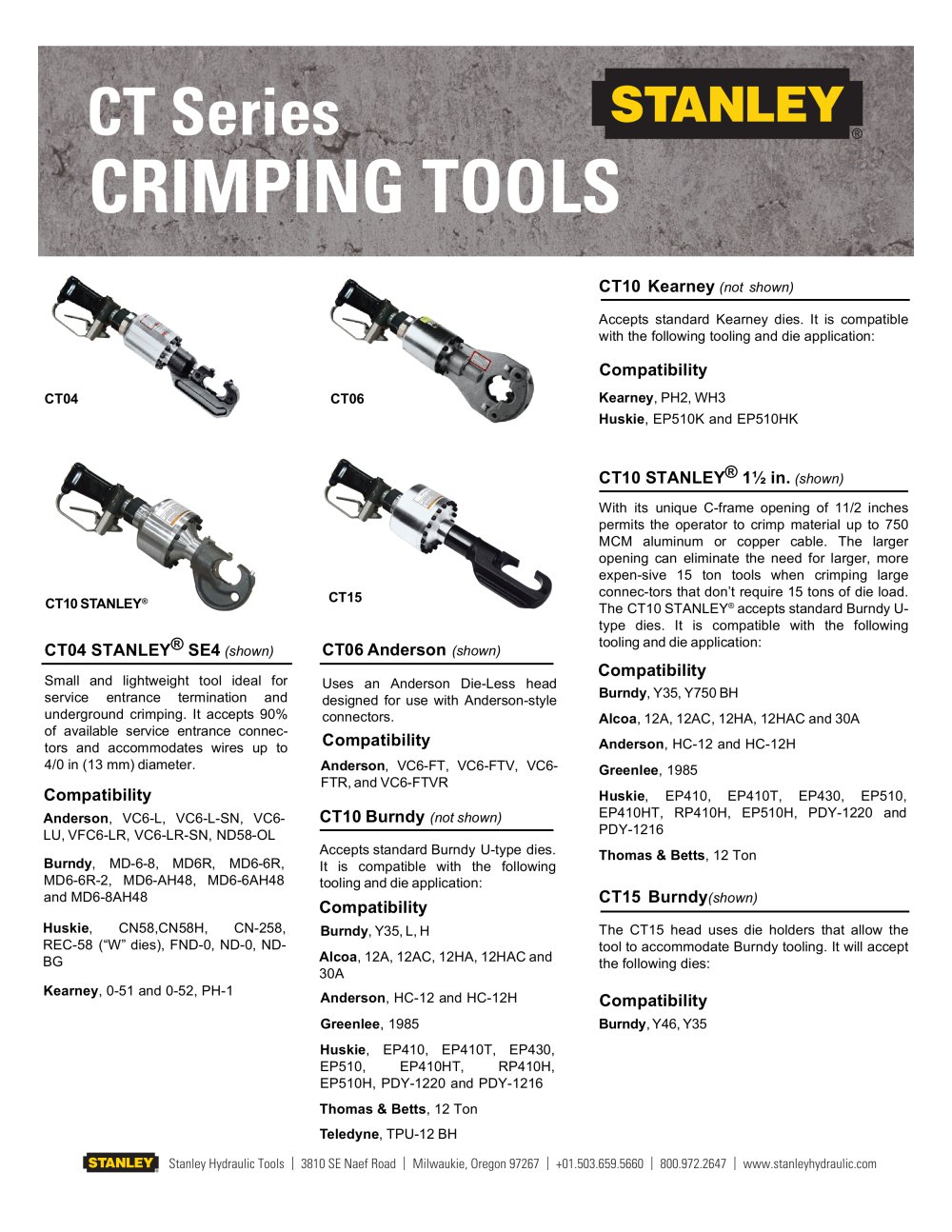

Crimping Tools
00000 01/03 Stanley Hydraulic Tools
3810 S.E. Naef Road
Milwaukie, Oregon 97267
Tel 503•659•5660
Fax 503•652•1780
1650 CT SERIES
CT04 STANLEY® SE4 (shown) is a small
and lightweight
tool ideal for service entrance
termination and underground crimping. It accepts
90% of available service entrance connectors
and accommodates wires up to 4/0 in (13
mm) diameter. It is compatible with the following
tooling and die application:
Anderson, VC6-L, VC6-L-SN, VC6-LU,
VFC6-LR, VC6-LR-SN, ND58-OL
Burndy, MD-6-8, MD6R, MD6-6R,
MD6-6R-2, MD6-AH48, MD6-6AH48 and
MD6-8AH48
Huskie, CN58,CN58H, CN-258, REC-58
(“W” dies), FND-0, ND-0, ND-BG
Kearney, 0-51 and 0-52, PH-1
CT06 Anderson (shown) uses an Anderson
Die-Less head designed for use with Andersonstyle
connectors. It is Compatible with the following
tooling and die application:
Anderson, VC6-FT, VC6-FTV, VC6-FTR,
and VC6-FTVR
CT10 Burndy (not shown) accepts standard
Burndy U-type dies. It is compatible with the
following tooling and die application:
Burndy, Y35, L, H
Alcoa, 12A, 12AC, 12HA, 12HAC
and 30A
Anderson, HC-12 and HC-12H
Greenlee, 1985
Huskie, EP410, EP410T, EP430,
EP510, EP410HT, RP410H, EP510H,
PDY-1220 and PDY-1216
Thomas & Betts, 12 Ton
Teledyne, TPU-12 BH
CT10 Kearney (not shown) accepts standard
Kearney dies. It is compatible with the
following tooling and die application:
Kearney, PH2, WH3
Huskie, EP510K and EP510HK
CT10 STANLEY® 1½ in. (shown) with its
unique C-frame opening of 11/2 inches permits
the operator to crimp material up to 750 MCM
aluminum or copper cable. The larger opening
can eliminate the need for larger, more expensive
15 ton
tools when crimping large connectors
that don’t require 15 tons of die load. The
CT10 STANLEY® accepts standard Burndy Utype
dies. It is compatible with the following
tooling and die
application:
Burndy, Y35, Y750 BH
Alcoa, 12A, 12AC, 12HA, 12HAC and
30A
Anderson, HC-12 and HC-12H
Greenlee, 1985
Huskie, EP410, EP410T, EP430, EP510,
EP410HT, RP410H, EP510H, PDY-1220
and PDY-1216
Thomas & Betts, 12 Ton
CT15 Universal (shown) Universal head
model uses die holders that allow the
tool to
accommodate either Burndy, Kearney or T&B
tooling. It will accept the following dies:
Burndy, Y46, Y35
Kearney, PH2, PH14
CT10 STANLEY® CT15
CT04 CT06
US Pat. 6490962
