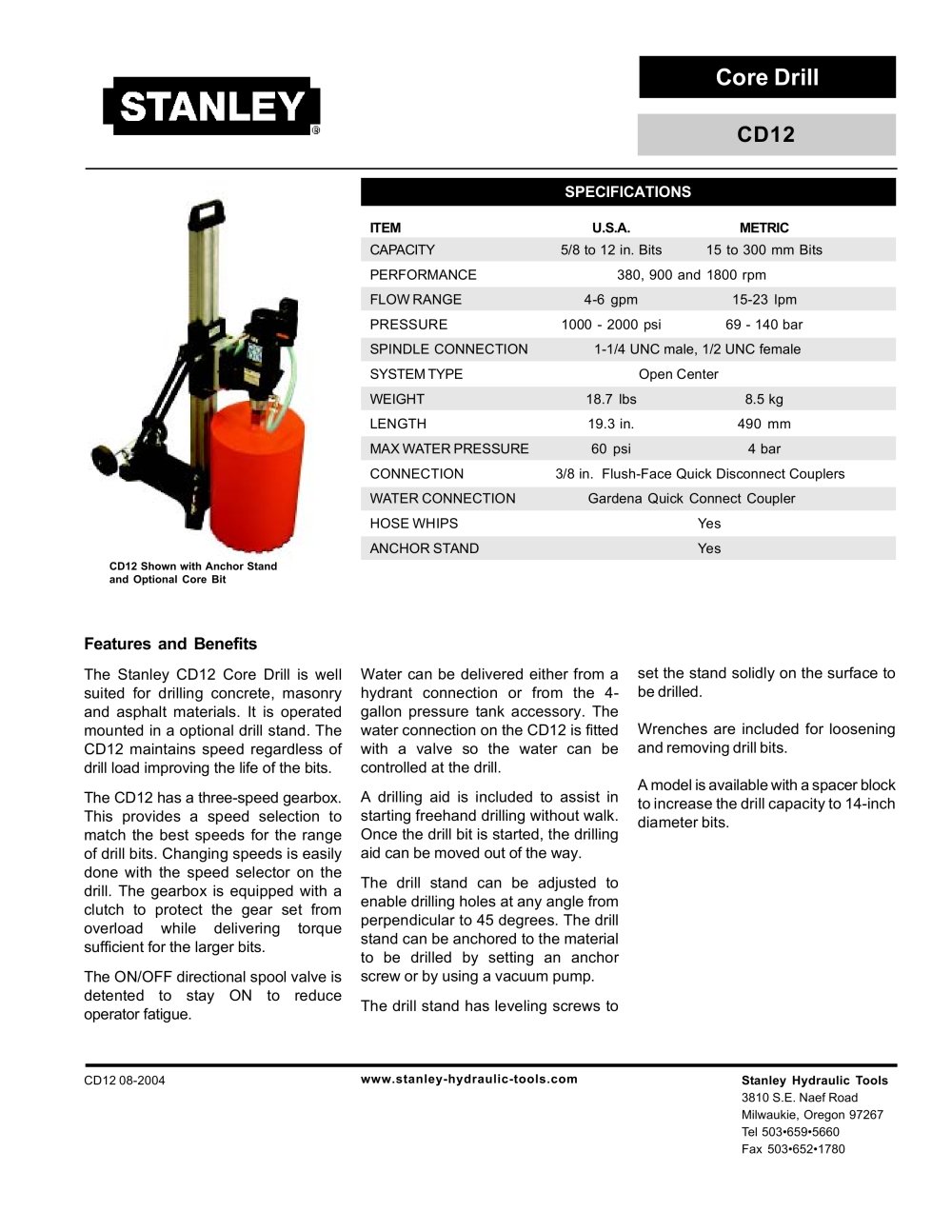

Core Drill Features and Benefits The Stanley CD12 Core Drill is well suited for drilling concrete, masonry and asphalt materials. It is operated mounted in a optional drill stand. The CD12 maintains speed regardless of drill load improving the life of the bits. The CD12 has a three-speed gearbox. This provides a speed selection to match the best speeds for the range of drill bits. Changing speeds is easily done with the speed selector on the drill. The gearbox is equipped with a clutch to protect the gear set from overload while delivering torque sufficient for the larger bits. The ON/OFF directional spool valve is detented to stay ON to reduce operator fatigue. SPECIFICATIONS CD12 08-2004 Stanley Hydraulic Tools 3810 S.E. Naef Road Milwaukie, Oregon 97267 Tel 503•659•5660 Fax 503•652•1780 ITEM U.S.A. METRIC CAPACITY 5/8 to 12 in. Bits 15 to 300 mm Bits PERFORMANCE 380, 900 and 1800 rpm FLOW RANGE 4-6 gpm 15-23 lpm PRESSURE 1000 - 2000 psi 69 - 140 bar SPINDLE CONNECTION 1-1/4 UNC male, 1/2 UNC female SYSTEM TYPE Open Center WEIGHT 18.7 lbs 8.5 kg LENGTH 19.3 in. 490 mm MAX WATER PRESSURE 60 psi 4 bar CONNECTION 3/8 in. Flush-Face Quick Disconnect Couplers WATER CONNECTION Gardena Quick Connect Coupler HOSE WHIPS Yes ANCHOR STAND Yes Water can be delivered either from a hydrant connection or from the 4- gallon pressure tank accessory. The water connection on the CD12 is fitted with a valve so the water can be controlled at the drill. A drilling aid is included to assist in starting freehand drilling without walk. Once the drill bit is started, the drilling aid can be moved out of the way. The drill stand can be adjusted to enable drilling holes at any angle from perpendicular to 45 degrees. The drill stand can be anchored to the material to be drilled by setting an anchor screw or by using a vacuum pump. The drill stand has leveling screws to CD12 set the stand solidly on the surface to be drilled. Wrenches are included for loosening and removing drill bits. A model is available with a spacer block to increase the drill capacity to 14-inch diameter bits. www.stanley-hydraulic-tools.com CD12 Shown with Anchor Stand and Optional Core Bit
