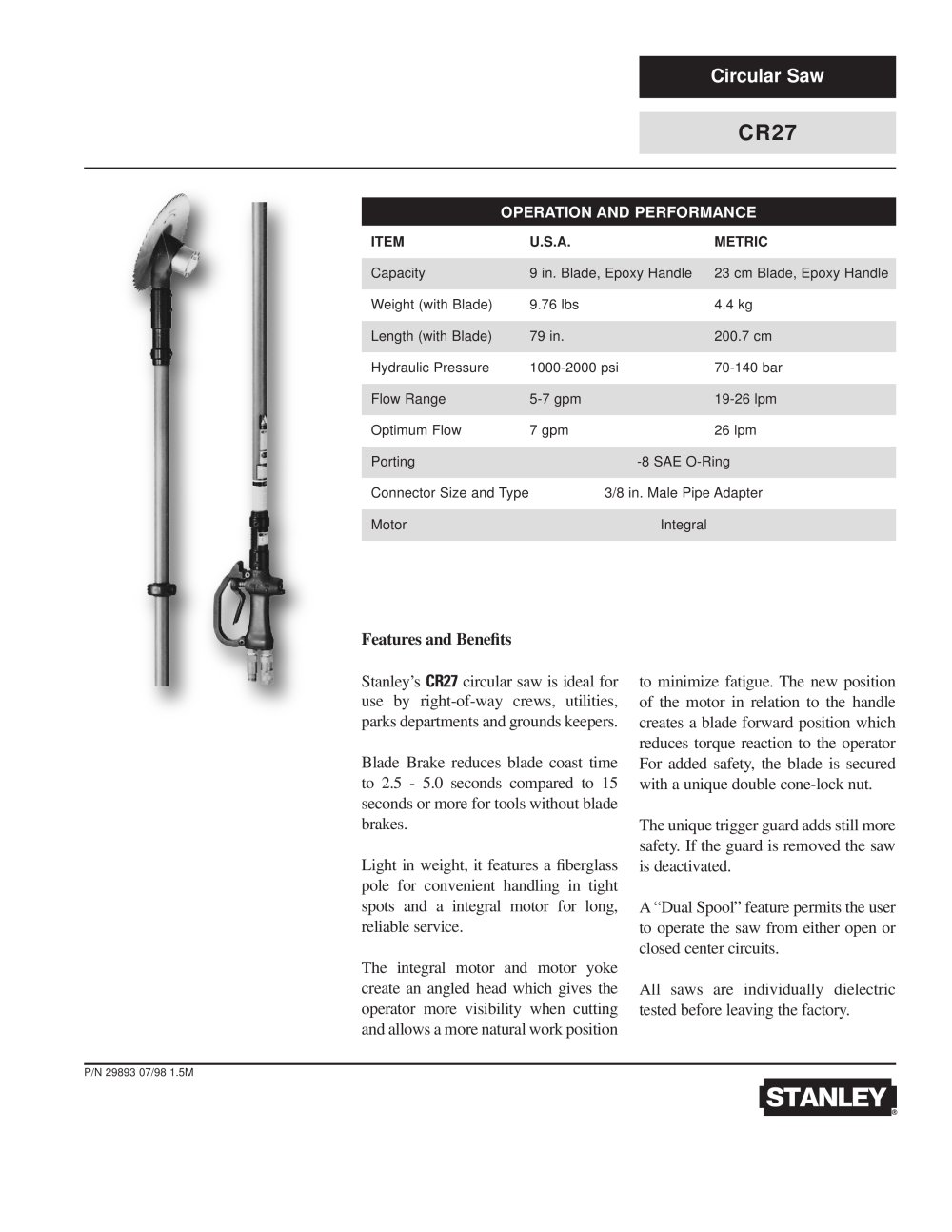

Circular Saw OPERATION AND PERFORMANCE Features and Benefits Stanley’s CR27 circular saw is ideal for use by right-of-way crews, utilities, parks departments and grounds keepers. Blade Brake reduces blade coast time to 2.5 - 5.0 seconds compared to 15 seconds or more for tools without blade brakes. Light in weight, it features a fiberglass pole for convenient handling in tight spots and a integral motor for long, reliable service. The integral motor and motor yoke create an angled head which gives the operator more visibility when cutting and allows a more natural work position to minimize fatigue. The new position of the motor in relation to the handle creates a blade forward position which reduces torque reaction to the operator For added safety, the blade is secured with a unique double cone-lock nut. The unique trigger guard adds still more safety. If the guard is removed the saw is deactivated. A“Dual Spool” feature permits the user to operate the saw from either open or closed center circuits. All saws are individually dielectric tested before leaving the factory. ITEM U.S.A. METRIC Capacity 9 in. Blade, Epoxy Handle 23 cm Blade, Epoxy Handle Weight (with Blade) 9.76 lbs 4.4 kg Length (with Blade) 79 in. 200.7 cm Hydraulic Pressure 1000-2000 psi 70-140 bar Flow Range 5-7 gpm 19-26 lpm Optimum Flow 7 gpm 26 lpm Porting -8 SAE O-Ring Connector Size and Type 3/8 in. Male Pipe Adapter Motor Integral P/N 29893 07/98 1.5M CR27
