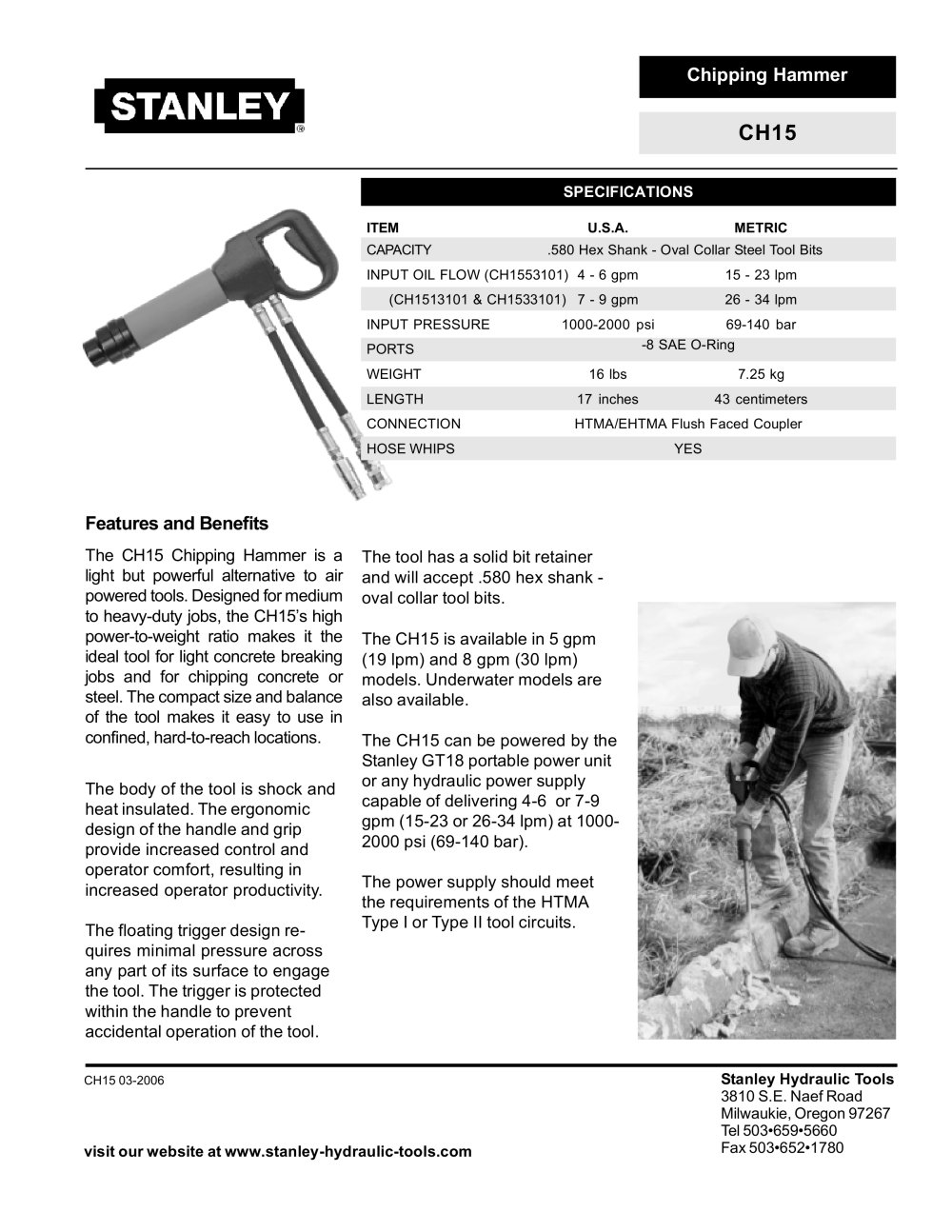

Chipping Hammer CH15 Features and Benefits The CH15 Chipping Hammer is a light but powerful alternative to air powered tools. Designed for medium to heavy-duty jobs, the CH15’s high power-to-weight ratio makes it the ideal tool for light concrete breaking jobs and for chipping concrete or steel. The compact size and balance of the tool makes it easy to use in confined, hard-to-reach locations. The body of the tool is shock and heat insulated. The ergonomic design of the handle and grip provide increased control and operator comfort, resulting in increased operator productivity. The floating trigger design requires minimal pressure across any part of its surface to engage the tool. The trigger is protected within the handle to prevent accidental operation of the tool. SPECIFICATIONS Stanley Hydraulic Tools 3810 S.E. Naef Road Milwaukie, Oregon 97267 Tel 503•659•5660 Fax 503•652•1780 CH15 03-2006 ITEM U.S.A. METRIC CAPACITY .580 Hex Shank - Oval Collar Steel Tool Bits INPUT OIL FLOW (CH1553101) 4 - 6 gpm 15 - 23 lpm (CH1513101 & CH1533101) 7 - 9 gpm 26 - 34 lpm INPUT PRESSURE 1000-2000 psi 69-140 bar PORTS -8 SAE O-Ring WEIGHT 16 lbs 7.25 kg LENGTH 17 inches 43 centimeters CONNECTION HTMA/EHTMA Flush Faced Coupler HOSE WHIPS YES The tool has a solid bit retainer and will accept .580 hex shank - oval collar tool bits. The CH15 is available in 5 gpm (19 lpm) and 8 gpm (30 lpm) models. Underwater models are also available. The CH15 can be powered by the Stanley GT18 portable power unit or any hydraulic power supply capable of delivering 4-6 or 7-9 gpm (15-23 or 26-34 lpm) at 1000- 2000 psi (69-140 bar). The power supply should meet the requirements of the HTMA Type I or Type II tool circuits. visit our website at www.stanley-hydraulic-tools.com
