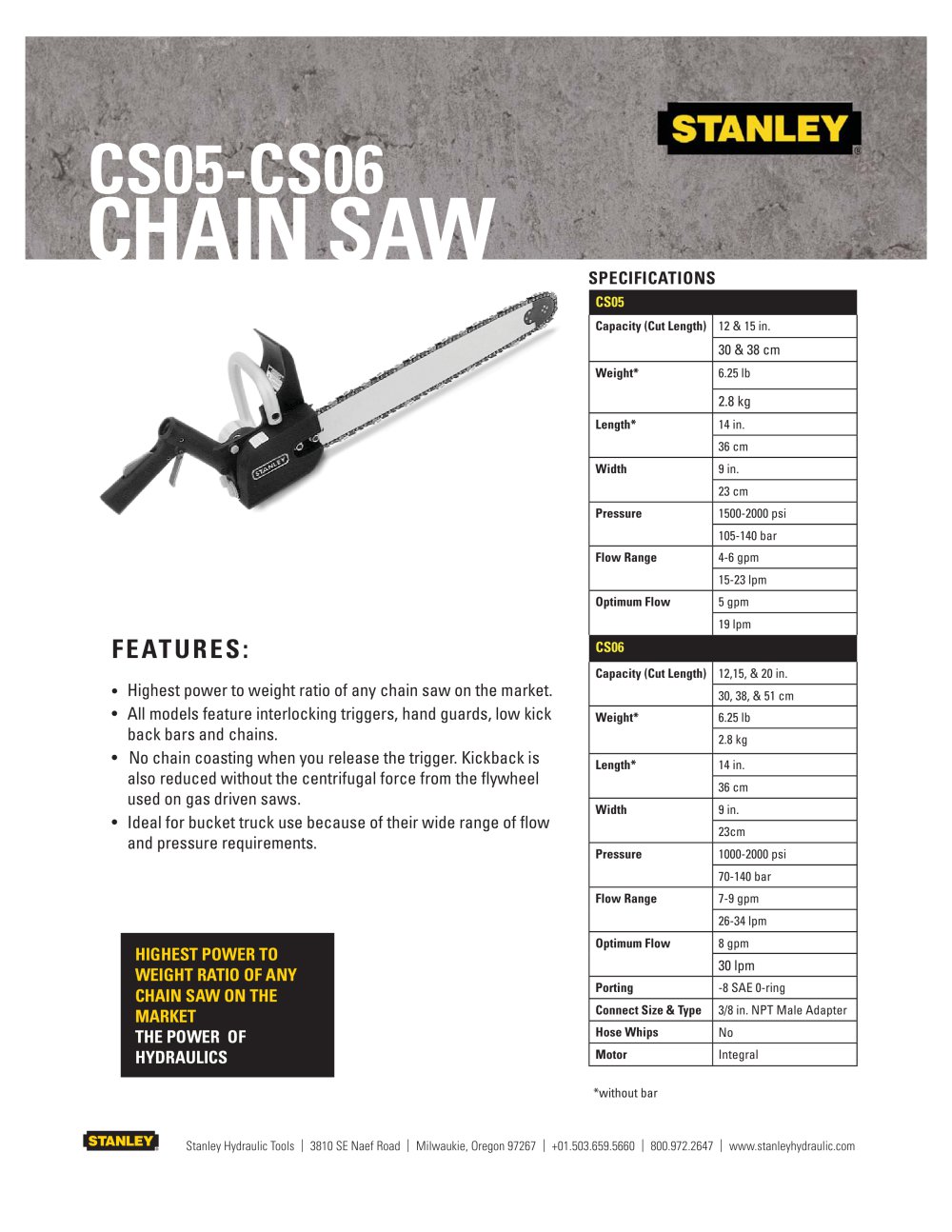

CS05 - CS06 Chain Saw OPERATION AND PERFORMANCE Features and Benefits Stanley’s hydraulic chain saws offer the highest power-to-weight ratio of any chain saw on the market today. They’re ideal for bucket truck use because of their wide range of flow and pressure requirements. Used around the world by utility companies, professional tree trimmers and construction crews. Safety has been designed in - all models feature interlocking triggers, hand guards, low kickback bars and chains. Hydraulic power doesn’t require a flywheel to smooth power pulses so there is no chain coasting Can be ordered in a wide variety of bar lengths. For extra flexibility, the “Dual Spool” models provide you with the ability to power the saws from either an open or closed-center hydraulic system using the same saw. Models can be special ordered for use with dedicated open or closed-center hydraulic systems. The CS05/06 hydraulic, pistol- CS05 CS06 ITEM U.S.A. METRIC U.S.A. METRIC Capacity (Cut Length) 12 & 15 in. 30 & 38 cm 12,15, & 20 in. 30, 38, & 51 cm Weight* 6.25 lb 2.8 kg 6.25 lb 2.8 kg Length* 14 in. 36 cm 14 in. 36 cm Width 9 in. 23 cm 9 in. 23cm Pressure 1500-2000 psi 105-140 bar 1000-2000 psi 70-140 bar Flow Range 4-6 gpm 15-23 lpm 7-9 gpm 26-34 lpm Optimum Flow 5 gpm 19 lpm 8 gpm 30 lpm Porting -8 SAE 0-ring Connect Size & Type 3/8 in. NPT Male Adapter Hose Whips No Motor Integral * Without Bar P/N 14495 04/02 With an optimum input flow of only 5 gpm / 20 lpm, the CS05 is ideal for applications where the hydraulic power source is limited to 5 gpm / 20 lpm. (HTMAType I) The more powerful CS06 is designed for use on HTMA Type II circuits with a full 8 gpm / 30 lpm output. Underwater models available - refer to ordering information. CS06 when you release the trigger. grip chain saws can be used for centrifugal force from the flywheel centrifugalused on gas driven saws. Features a Kickback is also reduced without the centrifugal force from the flywheel used on gas driven saws. Features a floating rim sprocket for longer wear and easy replacement. all types of pruning and cleaning applications.
