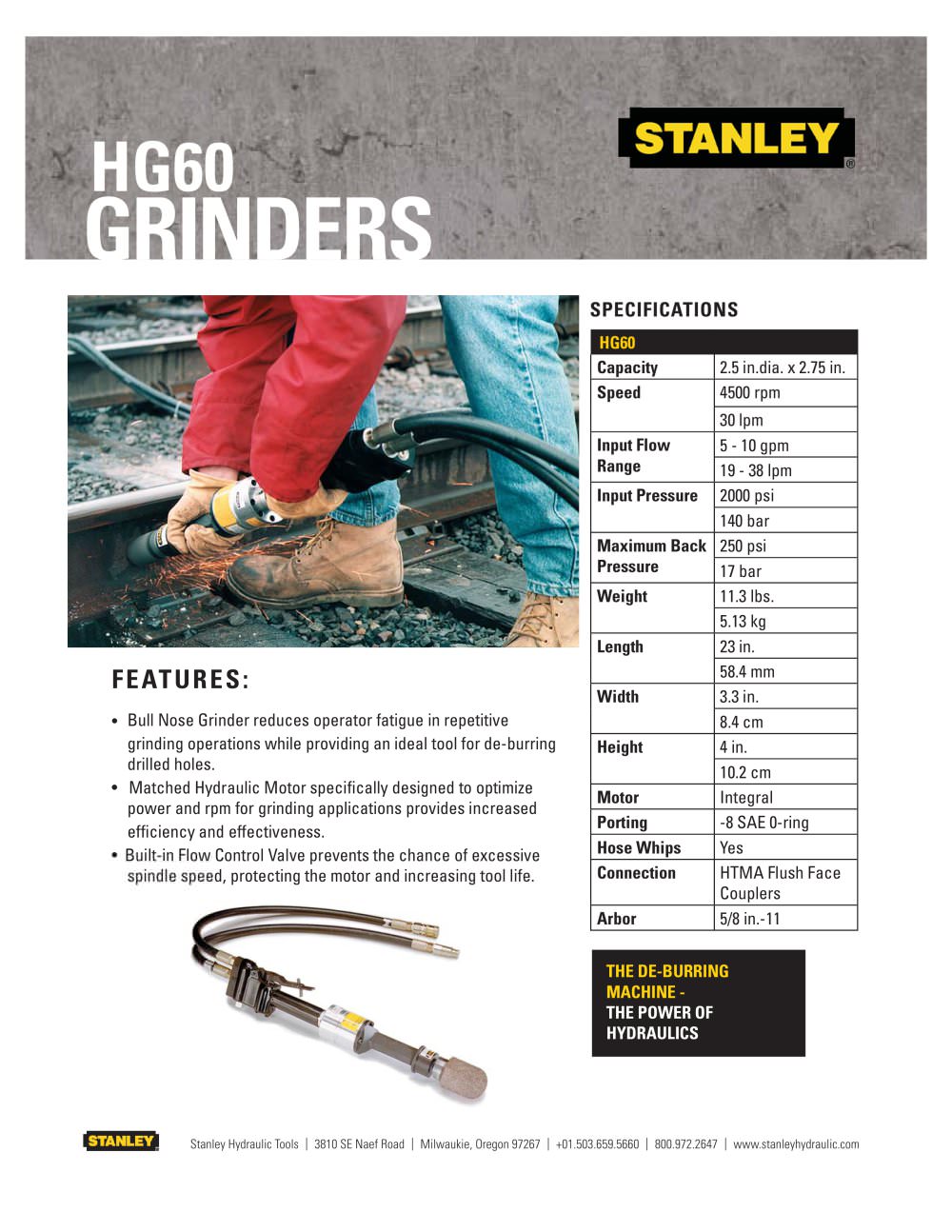

Bull Nose Grinder Features and Benefits SPECIFICATIONS







 !
 "
 ## $%
 ##  ITEM U.S.A. METRIC CAPACITY 2.5 in. Diameter x 2.75 in. PERFORMANCE 4500 rpm FLOW RANGE 5 - 10 gpm 19 - 38 lpm PRESSURE 2000 psi 140 bar PORTS -8 SAE O-Ring WEIGHT 11.3 lbs 5.13 kg LENGTH 23 in. 58.4 mm WIDTH 3.3 in. 8.4 cm HEIGHT 4 in. 10.2 cm CONNECTION HTMA Flush Face Couplers HOSE WHIPS Yes MOTOR Integral ARBOR 5/8 in. -11 HG60 The Stanley HG60 Bull Nose Grinder is ideal for smoothing weld seams, de-burring drilled holes, cleaning castings, or any application where removal of unwanted metal is needed. The HG60’s hydraulic motor is specifically designed to optimize power and rpm for grinding applications. The HG60 won’t bog down on those tough grinding jobs. And, its compact and lightweight design helps reduce operator fatigue. A built-in flow control valve prevents the chance of excessive spindle speed and also protects the motor, resulting in increased tool life. An interlocking trigger assembly helps prevent accidental engagement of the tool, providing increased operator safety.
