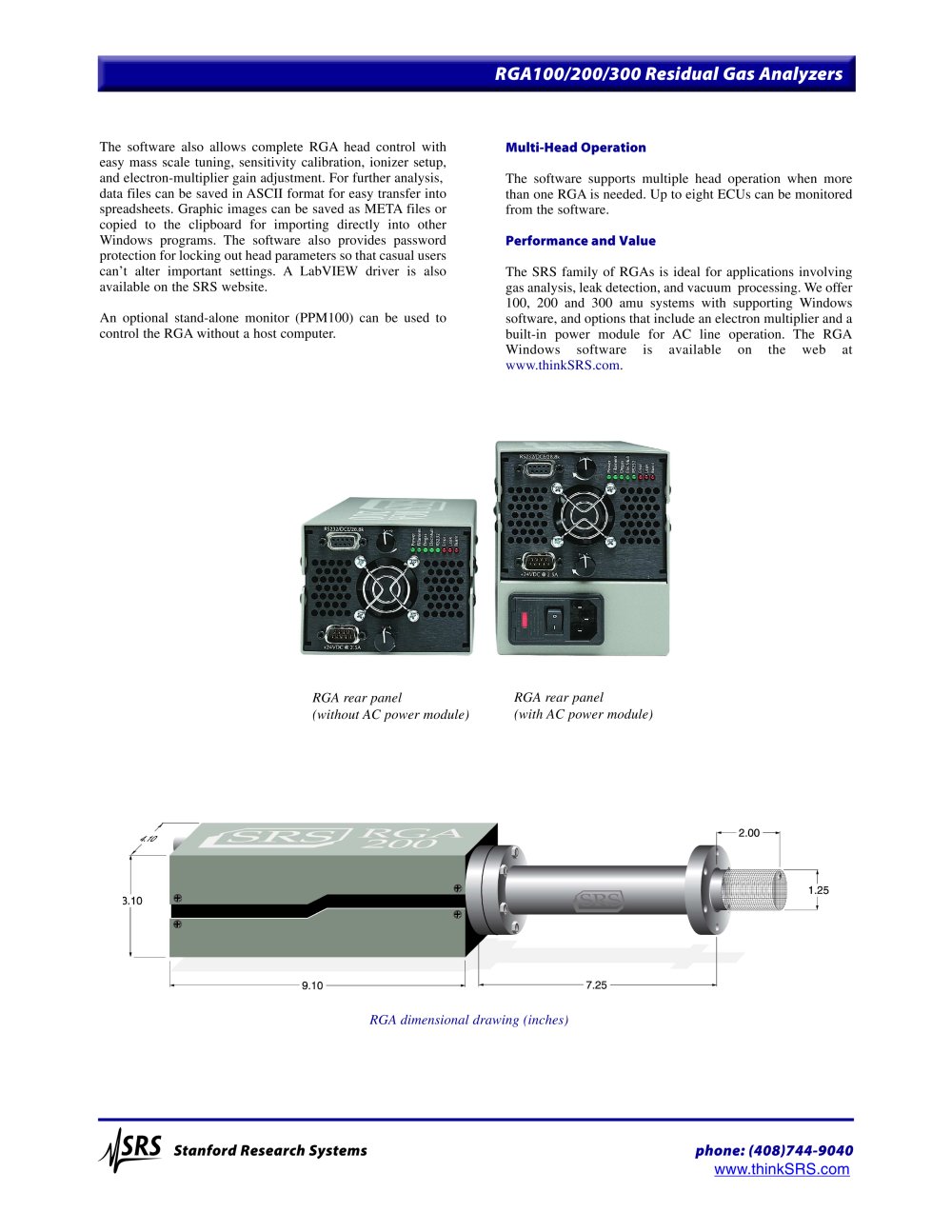

RGA100/200/300 Residual Gas Analyzers

The software also allows complete RGAhead control witheasy mass scale tuning, sensitivity calibration, ionizer setup, and electron-multiplier gain adjustment. For further analysis, data files can be saved in ASCII format for easy transfer into spreadsheets. Graphic images can be saved as METAfiles or copied to the clipboard for importing directly into other Windows programs. The software also provides password protection for locking out head parameters so that casual users can’t alter important settings. ALabVIEWdriver is also available on the SRS website.An optional stand-alone monitor (PPM100) can be used tocontrol the RGAwithout a host computer. Multi-Head Operation The software supports multiple head operation when morethan one RGAis needed. Up to eight ECUs can be monitored from the software. Performance and Value The SRS family of RGAs is ideal for applications involvinggas analysis, leak detection, and vacuum processing. We offer 100, 200 and 300 amu systems with supporting Windows software, and options that include an electron multiplier and a built-in power module for AC line operation. The RGA Windows software is available on the web atwww.thinkSRS.com. RGArear panel(without AC power module) RGArear panel (with AC power module) RGAdimensional drawing (inches)
