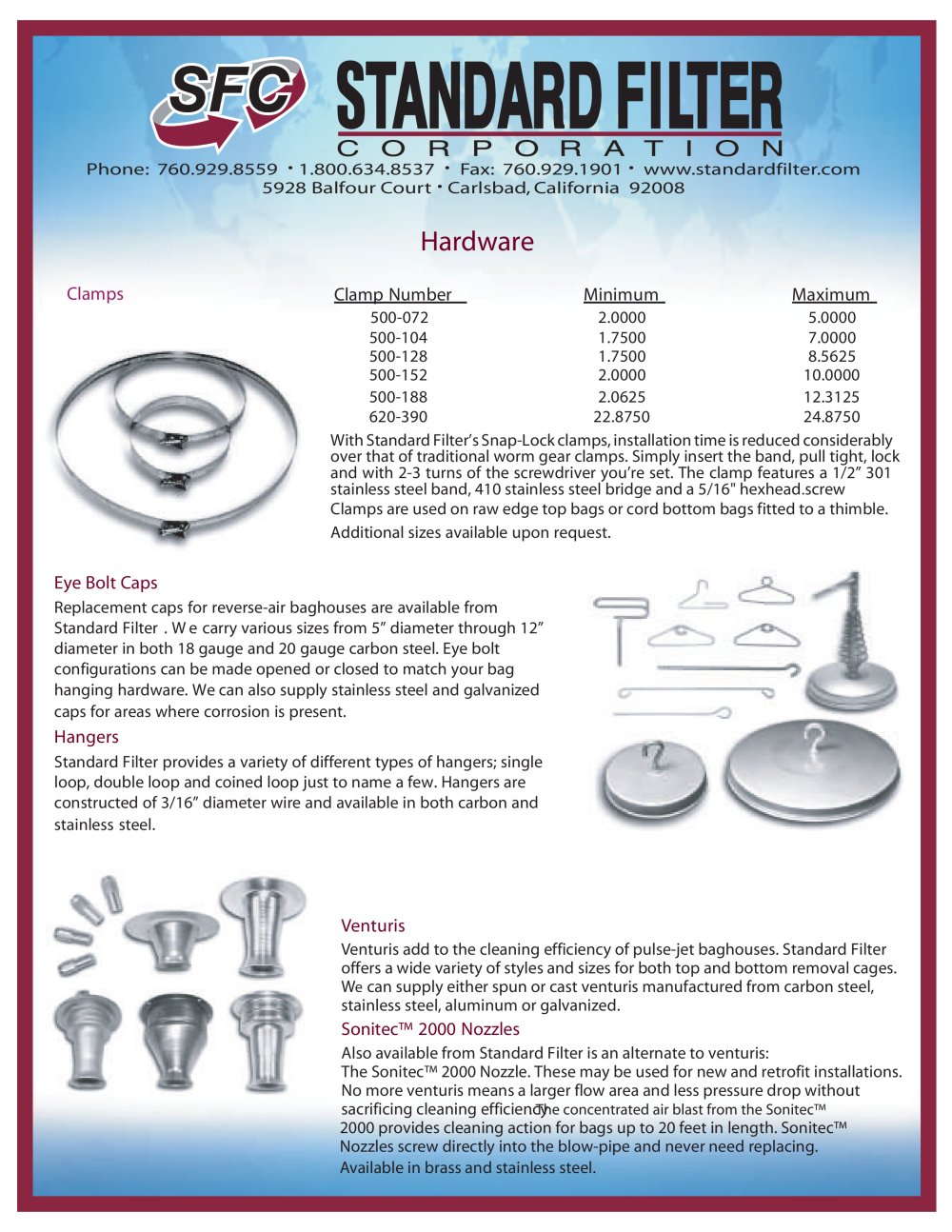

Hardware

Clamps

Clamp Number 500-072 500-104 500-128 500-152 500-188 620-390

Minimum 2.0000

1.7500 1.7500 2.0000 2.0625 22.8750

Maximum 5.0000

7.0000

8.5625

10.0000

12.3125

24.8750

With Standard Filter's Snap-Lock clamps, installation time is reduced considerably over that of traditional worm gear clamps. Simply insert the band, pull tight, lock and with 2-3 turns of the screwdriver you're set. The clamp features a 1/2" 301 stainless steel band, 410 stainless steel bridge and a 5/16" hexhead .screw Clamps are used on raw edge top bags or cord bottom bags fitted to a thimble.

Additional sizes available upon request.

Eye Bolt Caps

Replacement caps for reverse-air baghouses are available from Standard Filter . We carry various sizes from 5" diameter through 12" diameter in both 18 gauge and 20 gauge carbon steel. Eye bolt

configurations can be made opened or closed to match your bag

hanging hardware. We can also supply stainless steel and galvanized

caps for areas where corrosion is present.

Hangers

Standard Filter provides a variety of different types of hangers; single loop, double loop and coined loop just to name a few. Hangers are constructed of 3/16" diameter wire and available in both carbon and

stainless steel.

Venturis

Venturis add to the cleaning efficiency of pulse-jet baghouses. Standard Filter offers a wide variety of styles and sizes for both top and bottom removal cages. We can supply either spun or cast venturis manufactured from carbon steel, stainless steel, aluminum or galvanized.

Sonitec™ 2000 Nozzles

Also available from Standard Filter is an alternate to venturis:

The Sonitec™ 2000 Nozzle. These may be used for new and retrofit installations.

No more venturis means a larger flow area and less pressure drop without

sacrificing cleaning efficien cyhe concentrated air blast from the Sonitec™

2000 provides cleaning action for bags up to 20 feet in length. Sonitec™

Nozzles screw directly into the blow-pipe and never need replacing.

Available in brass and stainless steel.
