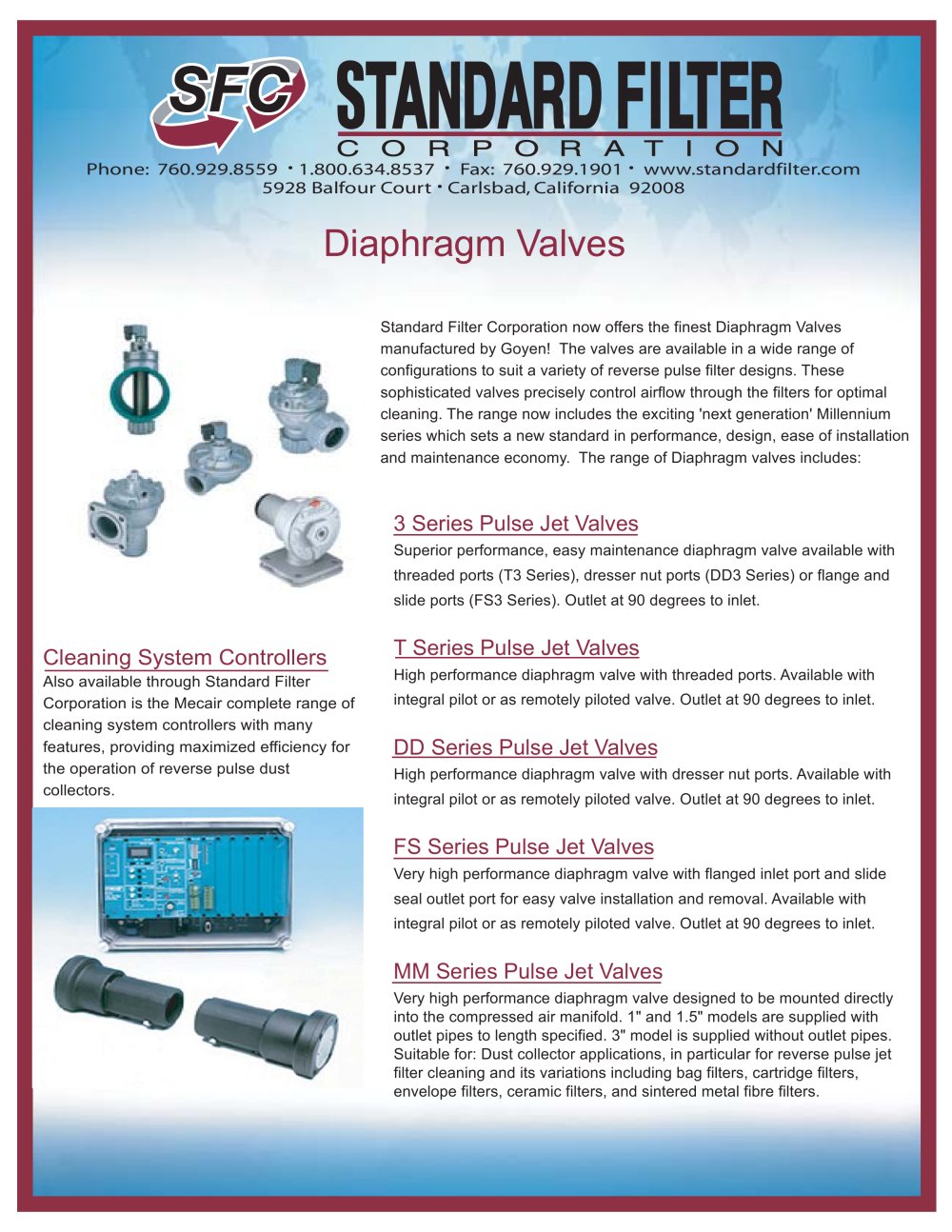

Diaphragm Valves - 59002 Diaphragm Valves

Standard Filter Corporation now offers the finest Diaphragm Valves manufactured by Goyen! The valves are available in a wide range of configurations to suit a variety of reverse pulse filter designs. These sophisticated valves precisely control airflow through the filters for optimal cleaning. The range now includes the exciting 'next generation' Millennium series which sets a new standard in performance, design, ease of installation and maintenance economy. The range of Diaphragm valves includes:

3 Series Pulse Jet Valves

Superior performance, easy maintenance diaphragm valve available with threaded ports (T3 Series), dresser nut ports (DD3 Series) or flange and slide ports (FS3 Series). Outlet at 90 degrees to inlet.

Cleaning System Controllers T Series Pulse Jet Valves

Also available through Standard Filter Corporation is the Mecair complete range of cleaning system controllers with many features, providing maximized efficiency for the operation of reverse pulse dust collectors. High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90 degrees to inlet.

DD Series Pulse Jet Valves

High performance diaphragm valve with dresser nut ports. Available with integral pilot or as remotely piloted valve. Outlet at 90 degrees to inlet.

FS Series Pulse Jet Valves

Very high performance diaphragm valve with flanged inlet port and slide seal outlet port for easy valve installation and removal. Available with integral pilot or as remotely piloted valve. Outlet at 90 degrees to inlet.

MM Series Pulse Jet Valves

Very high performance diaphragm valve designed to be mounted directly into the compressed air manifold. 1" and 1.5" models are supplied with outlet pipes to length specified. 3" model is supplied without outlet pipes. Suitable for: Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
