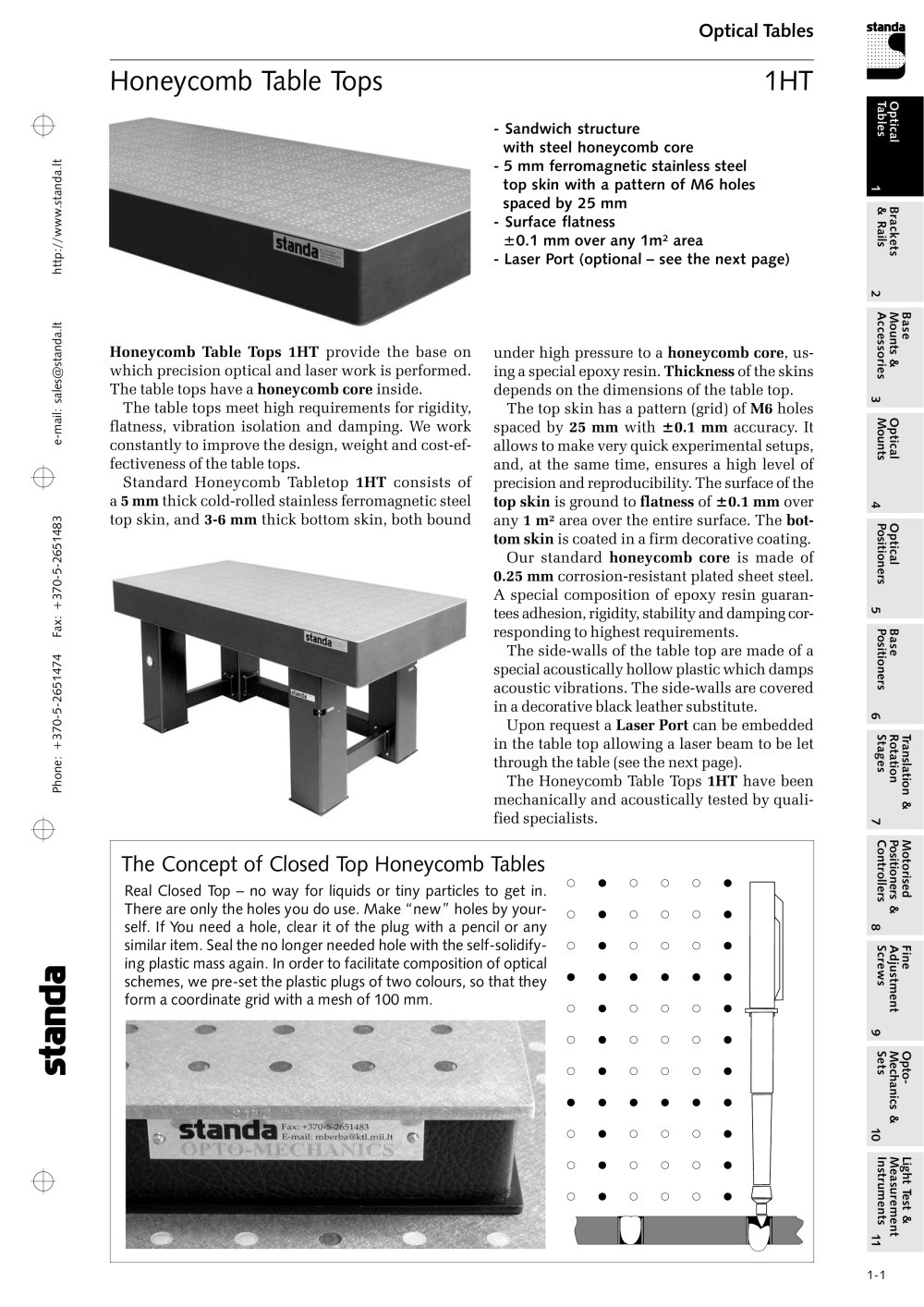

Honeycomb Table Tops
IHT
Sandwich structure
with steel honeycomb core
5 mm ferromagnetic stainless steel
top skin with a pattern of M6 holes
spaced by 25 mm
Surface flatness
±0.1 mm over any 1 m2 area
Laser Port (optional - see the next page)
£o CO
K 2
™ n w
n ° K
re 5 re
o 2
Honeycomb Table Tops IHT provide the base on which precision optical and laser work is performed. The table tops have a honeycomb core inside.
The table tops meet high requirements for rigidity, flatness, vibration isolation and damping. We work constantly to improve the design, weight and cost-ef­fectiveness of the table tops.
Standard Honeycomb Tabletop IHT consists of a 5 mm thick cold-rolled stainless ferromagnetic steel top skin, and 3-6 mm thick bottom skin, both bound
under high pressure to a honeycomb core, us­ing a special epoxy resin. Thickness of the skins depends on the dimensions of the table top.
The top skin has a pattern (grid) of M6 holes spaced by 25 mm with ±0.1 mm accuracy. It allows to make very quick experimental setups, and, at the same time, ensures a high level of precision and reproducibility. The surface of the top skin is ground to flatness of ±0.1 mm over any 1 m2 area over the entire surface. The bot­tom skin is coated in a firm decorative coating.
Our standard honeycomb core is made of 0.25 mm corrosion-resistant plated sheet steel. A special composition of epoxy resin guaran­tees adhesion, rigidity, stability and damping cor­responding to highest requirements.
The side-walls of the table top are made of a special acoustically hollow plastic which damps acoustic vibrations. The side-walls are covered in a decorative black leather substitute.
Upon request a Laser Port can be embedded in the table top allowing a laser beam to be let through the table (see the next page).
The Honeycomb Table Tops IHT have been mechanically and acoustically tested by quali­fied specialists.
SO
o № 3 —
= re o
2 33^1
2
o
— §S
fl) ft" fl>
The Concept of Closed Top Honeycomb Tables
Real Closed Top - no way for liquids or tiny particles to get in. There are only the holes you do use. Make "new" holes by your­self. If You need a hole, clear it of the plug with a pencil or any similar item. Seal the no longer needed hole with the self-solidify­ing plastic mass again. In order to facilitate composition of optical schemes, we pre-set the plastic plugs of two colours, so that they form a coordinate grid with a mesh of 100 mm.
