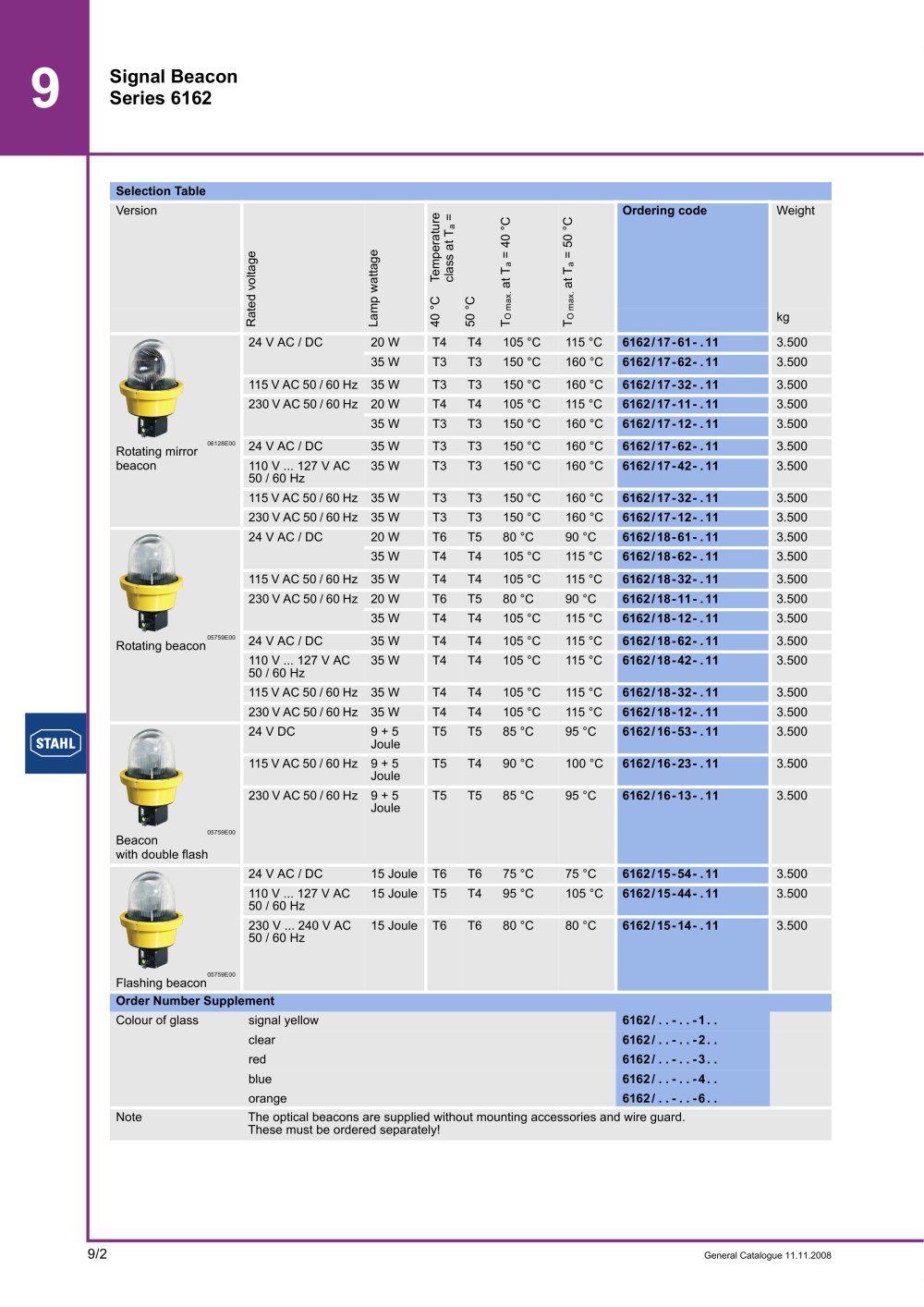

9/2
9
General Catalogue 11.11.2008
Signal Beacon
Series 6162
Selection Table
Version
Rated voltage
Lamp wattage
Temperature
class at Ta =
TO max. at Ta = 40 °C
TO max. at Ta = 50 °C
Ordering code Weight
40 °C
50 °C
kg
06128E00 Rotating mirror
beacon
24 V AC / DC 20 W T4 T4 105 °C 115 °C 6162/17-61-.11 3.500
35 W T3 T3 150 °C 160 °C 6162/17-62-.11 3.500
115 V AC 50 / 60 Hz 35 W T3 T3 150 °C 160 °C 6162/17-32-.11 3.500
230 V AC 50 / 60 Hz 20 W T4 T4 105 °C 115 °C 6162/17-11-.11 3.500
35 W T3 T3 150 °C 160 °C 6162/17-12-.11 3.500
24 V AC / DC 35 W T3 T3 150 °C 160 °C 6162/17-62-.11 3.500
110 V ... 127 V AC
50 / 60 Hz
35 W T3 T3 150 °C 160 °C 6162/17-42-.11 3.500
115 V AC 50 / 60 Hz 35 W T3 T3 150 °C 160 °C 6162/17-32-.11 3.500
230 V AC 50 / 60 Hz 35 W T3 T3 150 °C 160 °C 6162/17-12-.11 3.500
05759E00 Rotating beacon
24 V AC / DC 20 W T6 T5 80 °C 90 °C 6162/18-61-.11 3.500
35 W T4 T4 105 °C 115 °C 6162/18-62-.11 3.500
115 V AC 50 / 60 Hz 35 W T4 T4 105 °C 115 °C 6162/18-32-.11 3.500
230 V AC 50 / 60 Hz 20 W T6 T5 80 °C 90 °C 6162/18-11-.11 3.500
35 W T4 T4 105 °C 115 °C 6162/18-12-.11 3.500
24 V AC / DC 35 W T4 T4 105 °C 115 °C 6162/18-62-.11 3.500
110 V ... 127 V AC
50 / 60 Hz
35 W T4 T4 105 °C 115 °C 6162/18-42-.11 3.500
115 V AC 50 / 60 Hz 35 W T4 T4 105 °C 115 °C 6162/18-32-.11 3.500
230 V AC 50 / 60 Hz 35 W T4 T4 105 °C 115 °C 6162/18-12-.11 3.500
05759E00 Beacon
with double flash
24 V DC 9 + 5
Joule
T5 T5 85 °C 95 °C 6162/16-53-.11 3.500
115 V AC 50 / 60 Hz 9 + 5
Joule
T5 T4 90 °C 100 °C 6162/16-23-.11 3.500
230 V AC 50 / 60 Hz 9 + 5
Joule
T5 T5 85 °C 95 °C 6162/16-13-.11 3.500
05759E00 Flashing beacon
24 V AC / DC 15 Joule T6 T6 75 °C 75 °C 6162/15-54-.11 3.500
110 V ... 127 V AC
50 / 60 Hz
15 Joule T5 T4 95 °C 105 °C 6162/15-44-.11 3.500
230 V ... 240 V AC
50 / 60 Hz
15 Joule T6 T6 80 °C 80 °C 6162/15-14-.11 3.500
Order Number Supplement
Colour of glass signal yellow 6162/..-..-1..
clear 6162/..-..-2..
red 6162/..-..-3..
blue 6162/..-..-4..
orange 6162/..-..-6..
Note The optical beacons are supplied without mounting accessories and wire guard.
These must be ordered separately!
