Two Channel Temperature Controller Series 8146/5041
Temperature Controller and Limiter Series 8146/5241
General Catalogue 09.03.2006 9/4
9

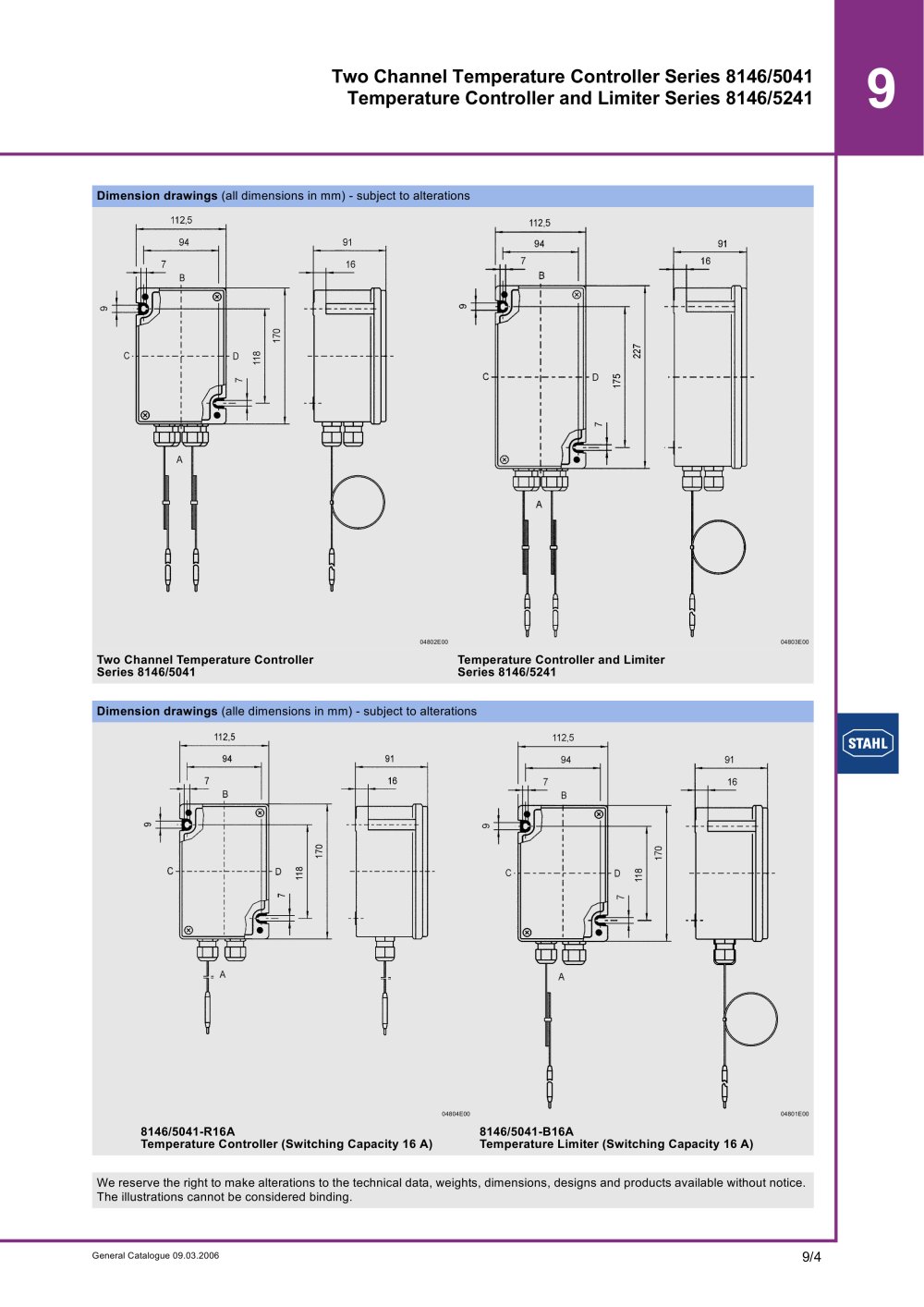

Dimension drawings (all dimensions in mm) - subject to alterations
04802E00 04803E00
Two Channel Temperature Controller
Series 8146/5041
Temperature Controller and Limiter
Series 8146/5241
Dimension drawings (alle dimensions in mm) - subject to alterations
04804E00 04801E00
8146/5041-R16A
Temperature Controller (Switching Capacity 16 A)
8146/5041-B16A
Temperature Limiter (Switching Capacity 16 A)
We reserve the right to make alterations to the technical data, weights, dimensions, designs and products available without notice.
The illustrations cannot be considered binding.
